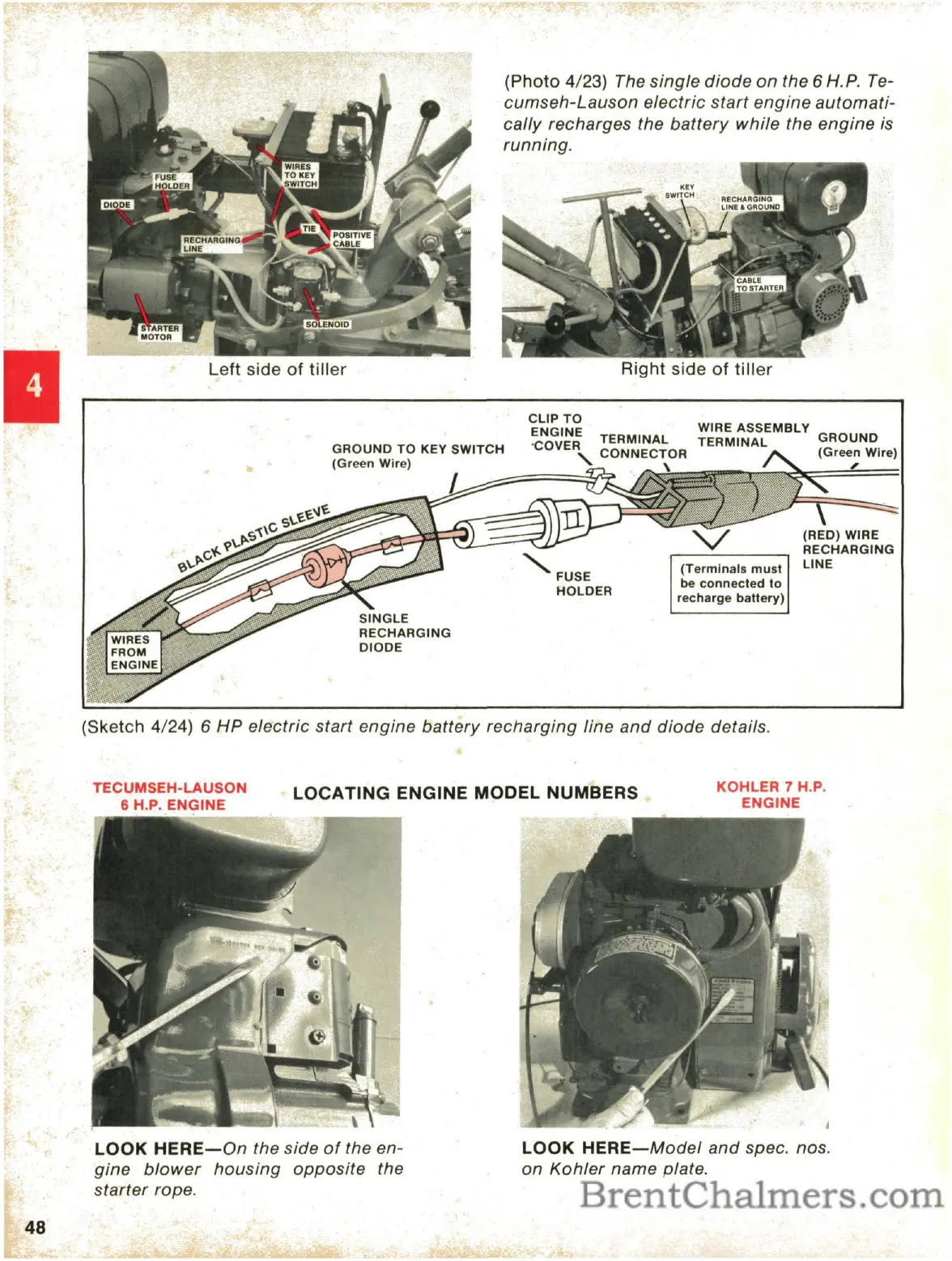

Troy-Bilt Horse - Locating Engine Model Numbers; Left;Right Side of Tiller; 6 HP Electric Start Engine Battery Recharging Line and Diode Details; On Side of Engine Blower Housing Opposite Starter Rope

WIRE ASSEMBLY
TERMINAL GROUND
(Green Wire)
,
(Terminals must
be connected to
recharge battery)
CLIP TO
ENGINE TERMINAL
'COVER CONNECTOR
"
(Photo 4/23) The single diode on the 6 H.P. Te-
cumseh-Lauson electric start engine automati-
cally recharges the battery while the engine is
running.
GROUND TO KEY SWITCH
(Green Wire)
Left side of tiller
(Sketch 4/24) 6 HP electric start engine battery recharging line and diode details.
TECUMSEH-LAUSON
6 H.P. ENGINE
LOCATING ENGINE MODEL NUMBERS
KOHLER 7 H.P.
ENGINE
LOOK HERE-Model and spec. nos.
on
Kohler name plate.
~
LOOK HERE-On the side of the en-
gine blower housing opposite the
starter rope.
