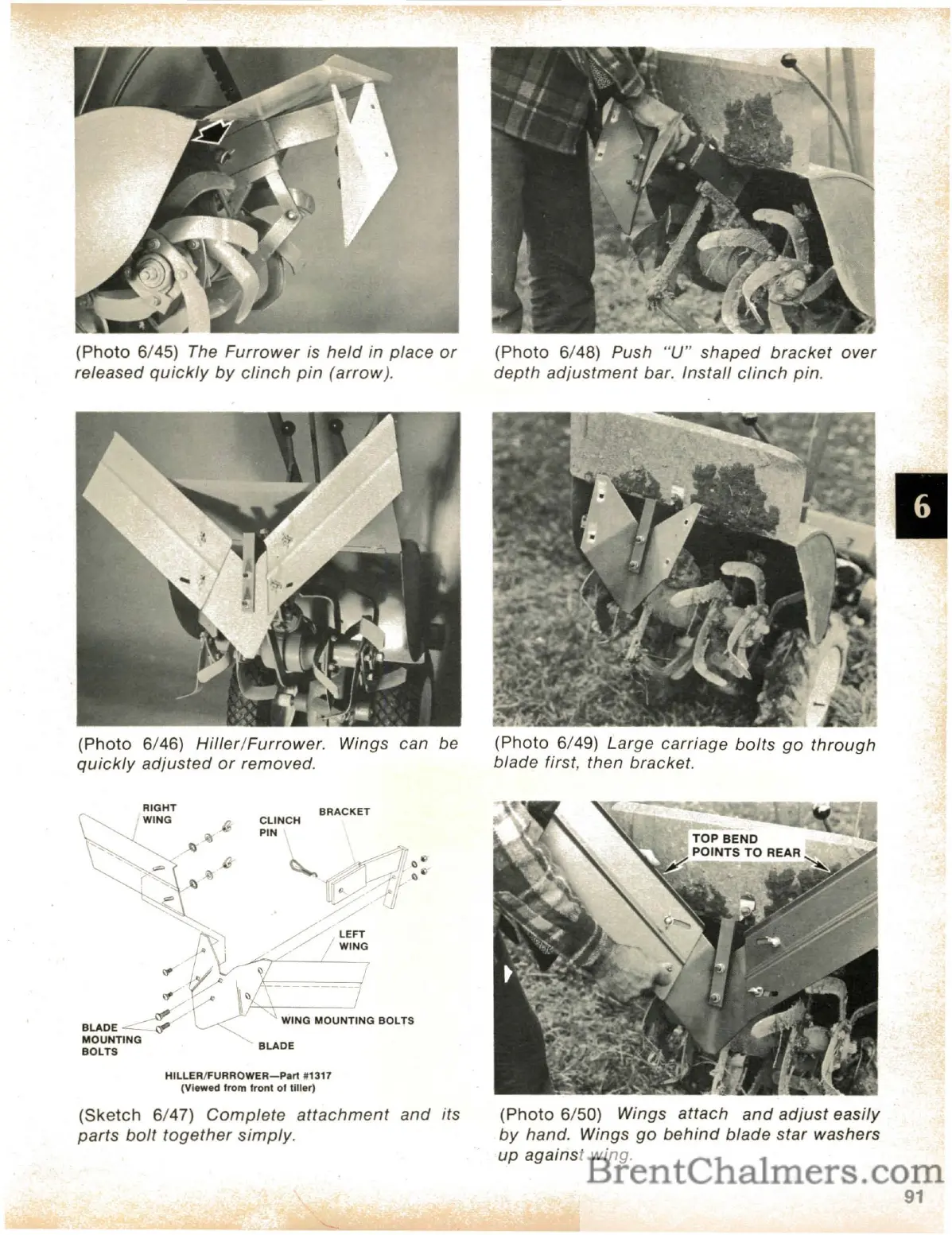

(Photo
6/45)
The
Furrower
is
held
in
place
or
released
quickly
by
clinch
pin
(arrow).
(Photo
6/46)
Hiller/Furrower.
Wings
can
be
quickly
adjusted
or
removed.
BRACKET
CLINCH
PIN
'"
.r
..
BL.ADE~·
MOUNTING
BOLTS
HILLER/FURROWER-Part
*1317
(Viewed
from
front
of
tiller)
(Sketch
6/47)
Complete
attachment
and
its
parts
bolt
together
simply.
(Photo
6/48)
Push
"U"
shaped
bracket
over
depth
adjustment
bar.
Install
clinch
pin.
(Photo
6/49)
Large
carriage
bolts
go
through
blade
first,
then
bracket.
(Photo
6/50)
Wings
attach
and
adjust
easily
by
hand.
Wings
go
behind
blade
star
washers
up
against
wing.
