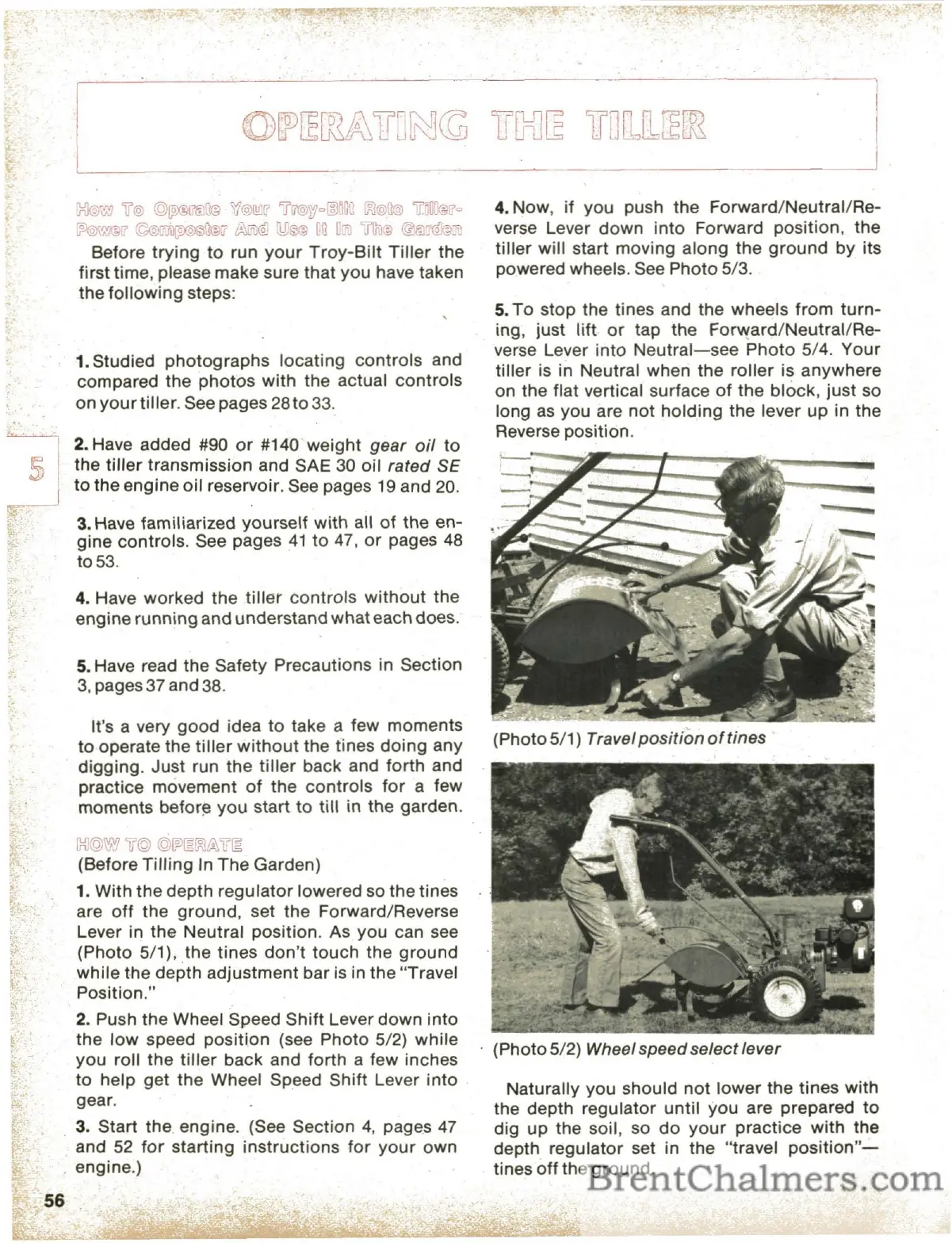

5. To stop the tines and the wheels from
turn-
ing, just
lift
or
tap the FOl'V{ard/Neutral/Re-
verse Lever into
Neutral-see
Photo 5/4. Your
tiller is in Neutral when the roller is anywhere
on the flat vertical surface
of
the block, just so
long
as
you are
not
holding the lever
up
in the
Reverse position.
4.
Now,
if
you push the Forward/Neutral/Re-
verse Lever down into Forward position, the
tiller
will start moving along
the
ground
by its
powered wheels. See Photo 5/3.
Naturally you should
not
lower the tines with
the depth regulator until
you are prepared
to
dig
up
the soil, so
do
your
practice
with
the
depth regulator set in the "travel
position"-
tines
off
the ground.
(Photo5/1) Travel
position
of
tines
(Photo5/2) Wheel speedselectlever
It's a very
good
idea
to
take a few moments
to
operate the
tiller
without
the tines
doing
any
digging. Just run the
tiller
back and forth and
practice movement
of
the controls
for
a few
moments
befor~
you
start
to
till in the garden.
4.
Have worked the
tiller
controls
without
the
engine running and understand what each does.
5.
Have read the Safety Precautions in Section
3,
pages 37 and 38.
}fu)w
lJ@
©~~(l@
1'1@{1f!i'
'11i'©l'7
c
]jlGu
~@U@
lE08@[j'c
~Ii'
©©rMl~~@1
&f'k
[llj@@
GU
~lRl
Th!@
@@:r@J@:x
Before
trying
to
run
your
Troy-Bilt
Tiller
the
first time, please make sure that you have taken
the
following
steps:
1. Studied photographs locating controls and
compared the
photos
with the actual controls
on
your
tiller. See pages
28to
33.
2. Have added #90
or
#140 weight gear
oil
to
the tiller transmission and SAE 30 oil rated SE
to
the engine oil reservoir. See pages
19
and
20.
3. Have familiarized yourself
with
all
of
the en-
gine controls. See pages
41
to
47,
or
pages
48
t053.
IXJ©W
'V©
@~~£l~
(Before Tilling In The Garden)
1. With the depth regulator lowered so the tines
are
off
the ground, set the Forward/Reverse
Lever in the Neutral position. As you can see
(Photo 5/1),
the
tines
don't
touch the ground
while the depth adjustment bar is in the "Travel
Position."
2.
Push
the
Wheel Speed Shift Lever down into
the
low
speed position (see Photo 5/2)
while
you
roll the
tiller
back and forth a few inches
to
help get the Wheel Speed Shift Lever
into.
gear.
.
3.
Start the engine. (See Section
4,
pages
47
and
52
for
starting instructions
for
your
own
_engine.)
..
