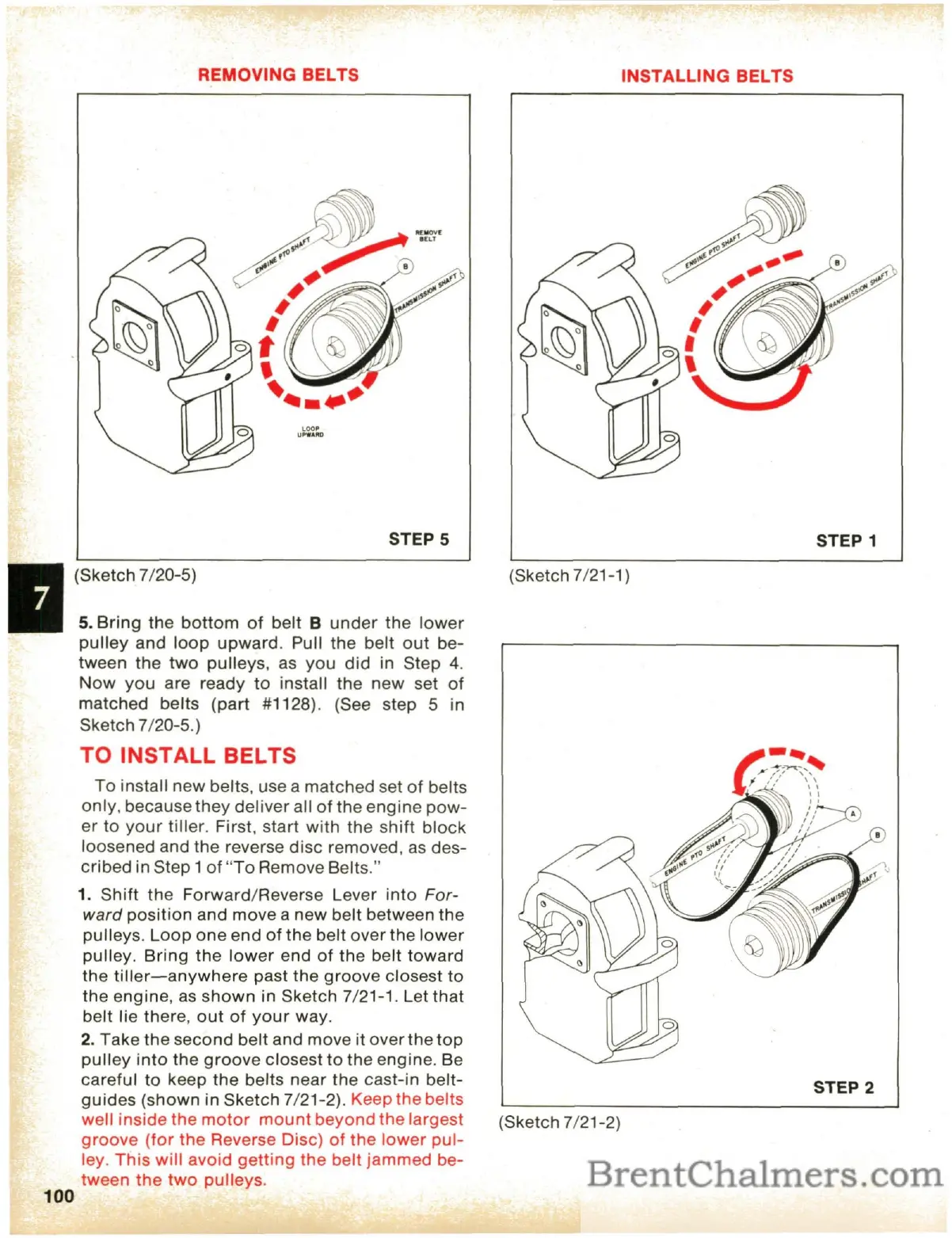

REMOVING
BELTS
INSTALLING
BELTS
To
install
new
belts,
use
a
matched
set
of
belts
only,
because
they
deliver
all
of
the
engine
pow-
er
to
your
tiller.
First,
start
with
the
shift
block
loosened
and
the
reverse
disc
removed,
as
des-
cribed
in
Step
1
of
"To
Remove
Belts."
1.
Shift
the
Forward/Reverse
Lever
into
For-
ward
position
and
move
a
new
belt
between
the
pulleys.
Loop
one
end
of
the
belt
over
the
lower
pulley.
Bring
the
lower
end
of
the
belt
toward
the
tiller-anywhere
past
the
groove
closest
to
the
engine,
as
shown
in
Sketch
7/21-1.
Let
that
belt
lie
there,
out
of
your
way.
2.
Take
the
second
belt
and
move
it
over
the
top
pulley
into
the
groove
closest
to
the
engine.
Be
careful
to
keep
the
belts
near
the
cast-in
belt-
gu
ides
(shown
in
Sketch
7/21-2).
Keep
the
belts
well
inside
the
motor
mount
beyond
the
largest
groove
(for
the
Reverse
Disc)
of
the
lower
pul-
ley.
This
will
avoid
getting
the
belt
jammed
be-
tween
the
two
pulleys.
100
I
STEP
5
(Sketch
7/20-5)
5.
Bring
the
bottom
of
belt
B
under
the
lower
pulley
and
loop
upward.
Pull
the
belt
out
be-
tween
the
two
pulleys.
as
you
did
in
Step
4.
Now
you
are
ready
to
install
the
new
set
of
matched
belts
(part
#1128).
(See
step
5
in
Sketch
7/20-5.)
TO
INSTALL
BELTS
(Sketch
7/21-1
)
(Sketch
7/21-2)
STEP
1
STEP
2
101
103
