The 2–pin current socket on the left hand side and the power outlet at the rear
end of the tractor is controlled with the power switch.
• To connect the 2–pin current socket power, press down the symbol side of
the switch.
• To disconnect the 2–pin current socket power, press down the side of the
switch opposite to the symbol
3.7.3 Three-pin current socket
GUID-84932CF5-F38B-4026-A174-A49D117AB680

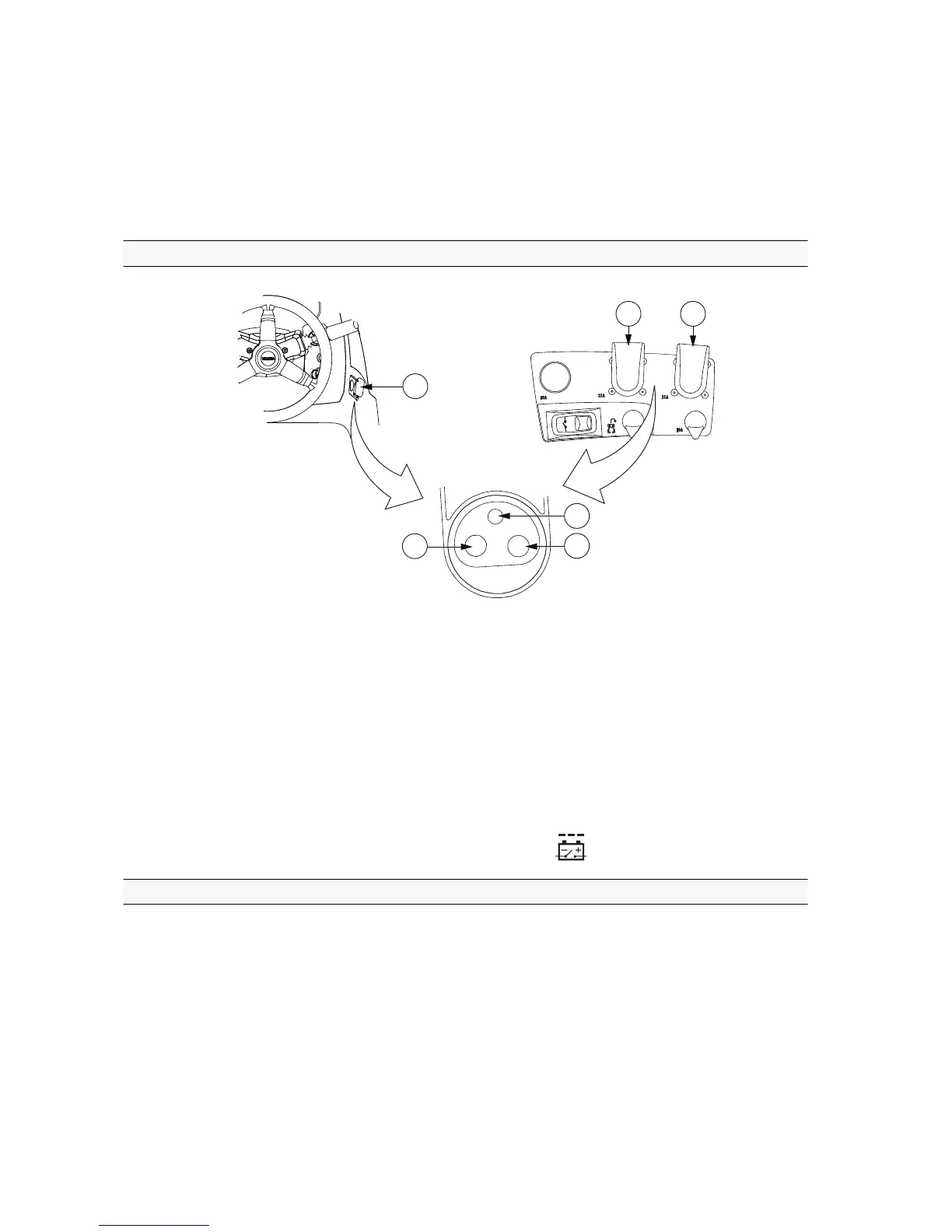

1. Three-pin current socket on the front console (optional)
2. Three-pin current socket on the right-hand side
3. Three-pin current socket on the right-hand side (optional)
4. 25 A
5. 5 A
6. Ground
The direct current is supplied through the current socket for different regulating
elements, implements etc. 5 A is available through the ignition switch and 25 A
direct from the battery. The current supply of the 25 A pin switches off after a
delay when the ignition switch is turned to the
(OFF) position.
3.7.4 Trailer socket
Socket at the rear end
Current from the tractor to the trailer is supplied through the trailer socket.
