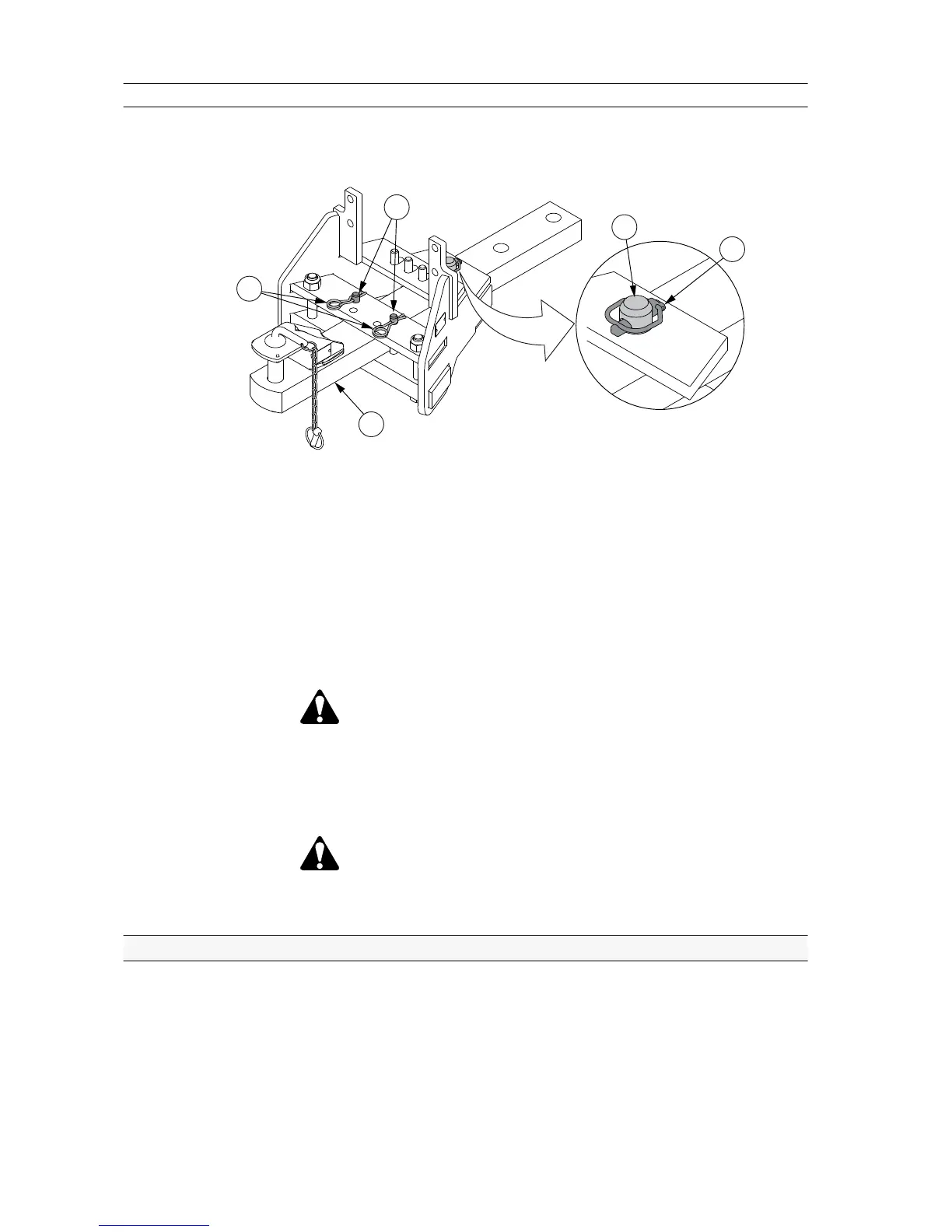

GUID-54C9DD62-9035-4269-BDA2-BE06937CDA7A
1. Pin
2. Spring return pin
3. Drawbar
4. Ring pin
1. To adjust the drawbar distance:
• Secure the pin with hand and pull out the ring pin.
• Adjust the drawbar distance.
• Fit the pin and ring pin to secure the drawbar.
WARNING: Make sure that the locking pin is fitted correctly.
2. To adjust the lateral position.
• Secure the pins with hand and pull out the spring locking pins.
• Adjust the drawbar position to either side.
• Fit the pins and spring locking pins to secure them.
WARNING: Make sure that the locking pin is fitted correctly.
Insert the straight part of the spring locking pin through the hole and the
curve to correspond to the pin arc.
3.21.7 Towing device frames
The towing device frame options available are:
• Short towing device frame (used with pick-up hitch)
• Towing device frame (used without pick-up hitch or agricultural drawbar)
• Universal towing device frame with availability for drawbar
• Towing device frame with a fixed 80–mm ball coupling and the drawbar.
• Towing device frame with a fixed Piton-Fix pin and the drawbar
3. Operation
