Fuses Nominal current Description
F7M 10A NOx sensors
F8M 10A Waste gate
F9M - Reserve
F10M - Reserve
F11M 10A HVAC clutch
F12M 3A Engine control unit ignition key
signal
Relay Description
K5M Reserve
K6M DEF system heating main
K7M Engine control unit main
K9M High beam
K10M Dipped beam
K11M Reserve
K12M Engine auxiliary
K13M Alternator D+ cut off
K14M Reserve
K15M Alternator D+ cut off auxiliary
K16M Compressor clutch control

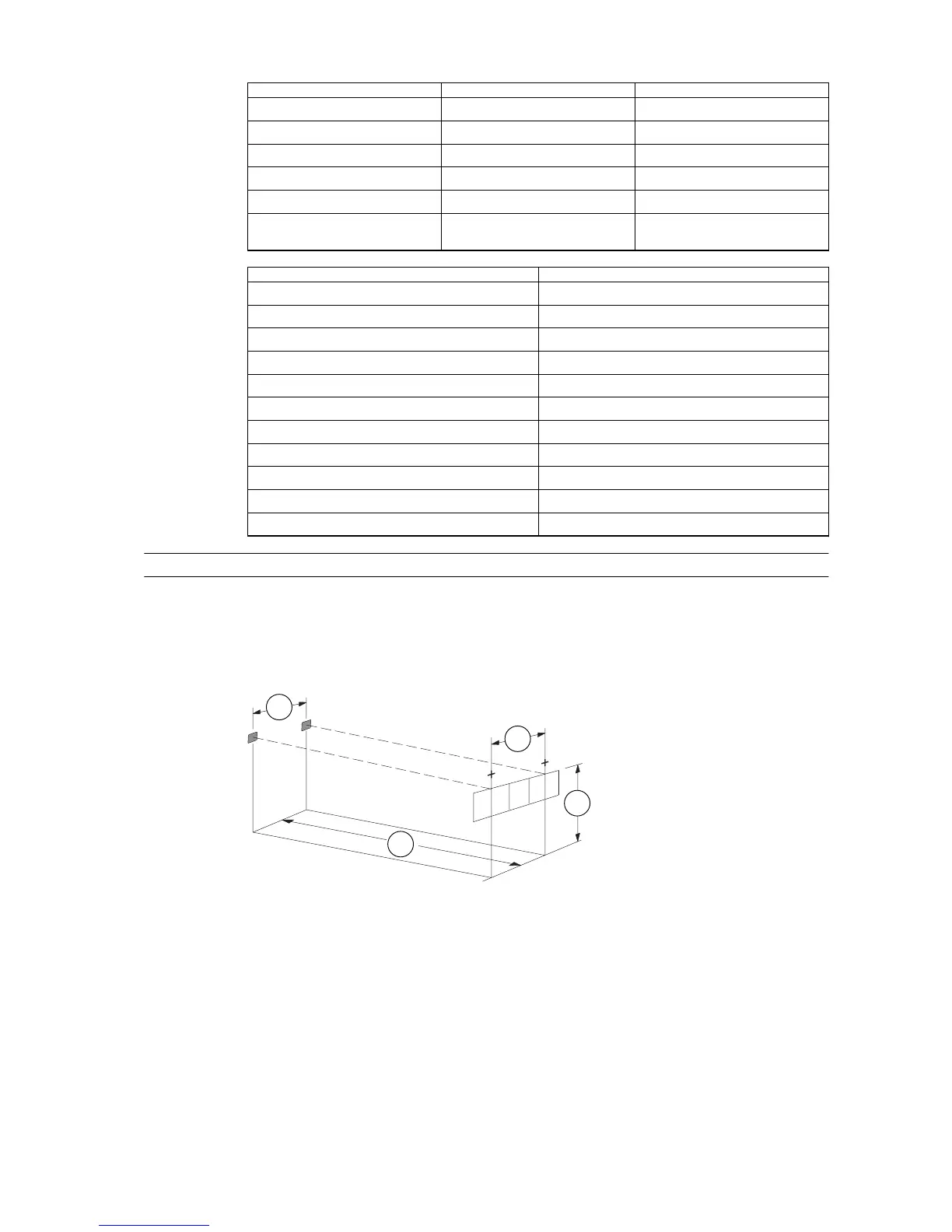

4.8.6.11 Adjusting headlights
It is important that the headlights are correctly adjusted when running on public
roads.
Before you adjust the headlights, make sure that the tractor load is normal and
tyre pressure is correct.
GUID-0F478C2D-75BE-4B18-8C0E-11166CF13A45
1. Distance between headlight centres
2. 5 m (tractor distance from the wall)
3. Height of headlights above ground minus 50 mm
Headlight adjustment can be carried out quickly and accurately by using an
optical headlight adjusting unit. If no optical instrument is available, the
adjustment can be done as follows:
1. Turn on the dipped beams.
4. Maintenance
- 357 -
