• To adjust the height of the mudguards, change the fixing screws or the shafts
to the other holes.
In addition, the mudguards can be inclined forward and backward in their
fixing holes.
The tightening torque of the fixing screws is 70 Nm.
IMPORTANT: According to the EU directives the smallest allowed distance
between the side of the tyre and the mudguard is 40 mm and between the
top of the tyre to the mudguard is 60 mm.
NOTE:
The distance between the fixing screws must be as wide as possible. Use the
highest and lowest possible holes for the fixing screws.
4.8.10 Auxiliary hydraulics
4.8.10.1 Adjusting the rear valve cables
GUID-CE8247DD-F7F0-462F-8BE5-499260191394

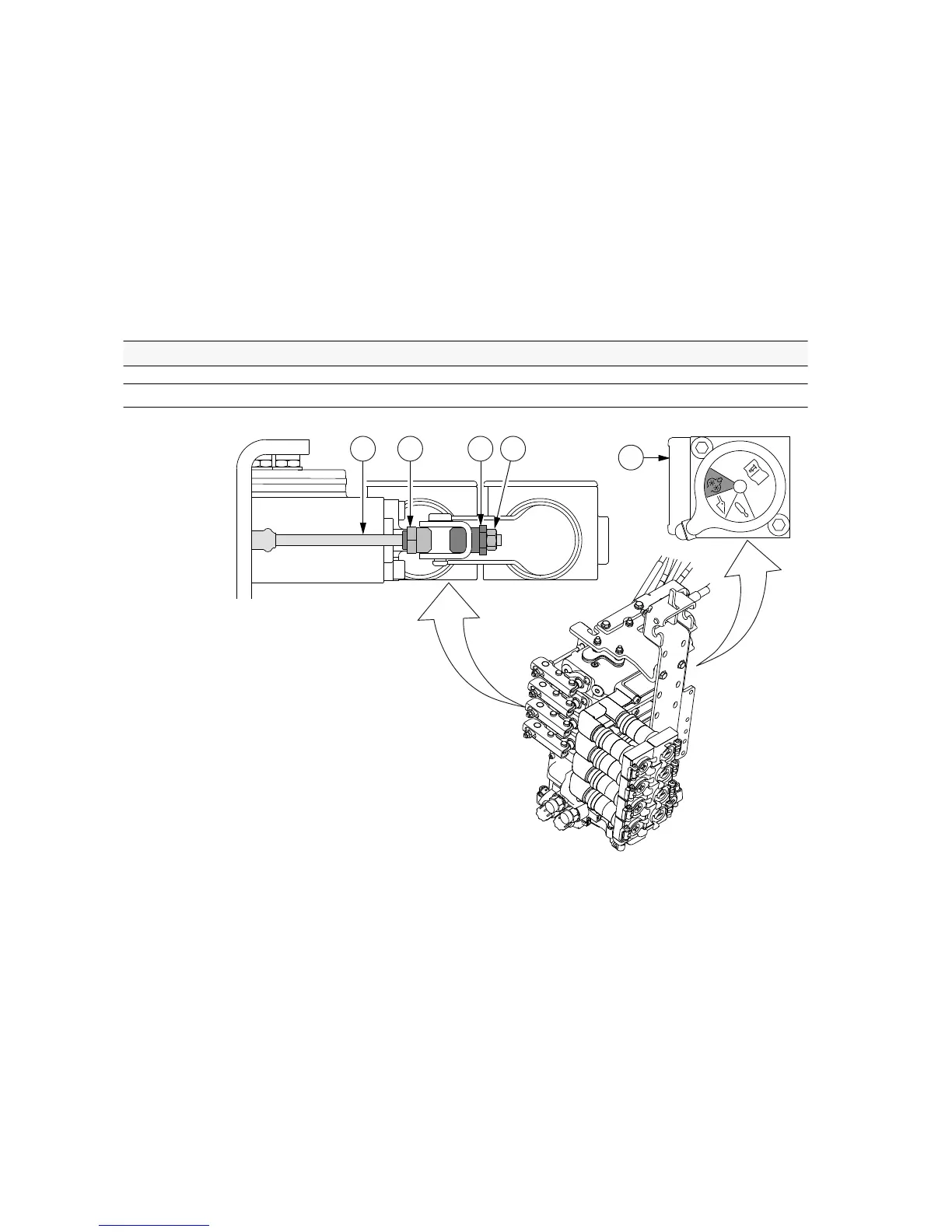

1. Cable
2. Adjustment nut
3. Adjustment screw
4. Locking nut
5. Position lock mode
1. Disconnect quick couplings from the rear valves.
2. If the tractor is equipped with the front linkage shut-off valve (optional), push
the shut-off valve lever to the top position.
4. Maintenance
- 366 -
