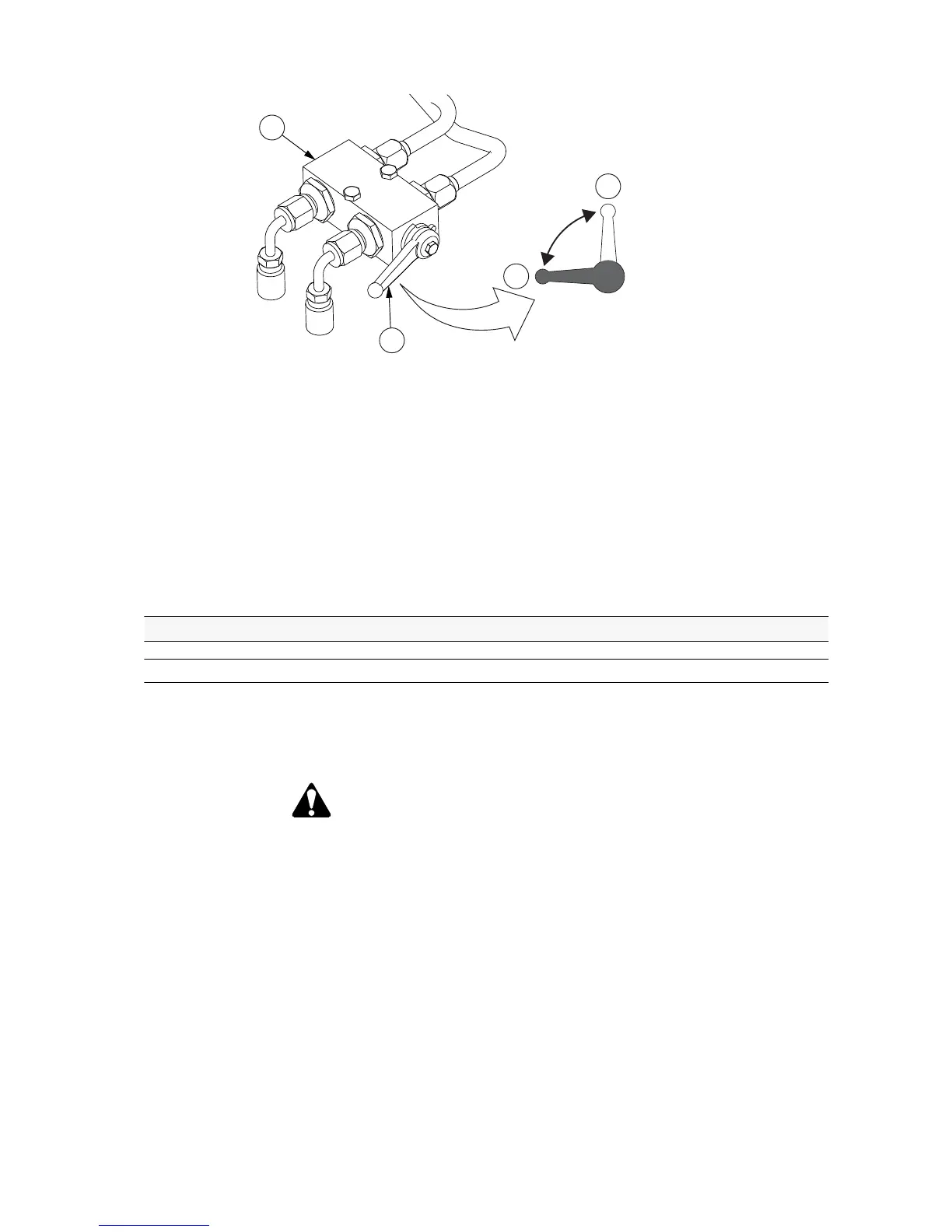

1. Shut-off valve
2. Shut-off valve lever
3. Lever in front linkage position
4. Lever in rear valve position
• To use the front linkage:
• Disconnect quick couplings from the rear valve to which the front linkage
shut-off valve is connected.
• Pull the shut-off valve lever to the horizontal position.
• To use the rear valve, push the shut-off valve lever to the top position.
3.14.3 Connecting to the valves
3.14.3.1 Using quick couplings
1. Start the engine.
2. Release the load from the auxiliary hydraulics (especially from the hydraulic
cylinders).
WARNING: When the front linkage is being connected to the rear
valve, make sure there is no load on the front linkage or rear
implement connected to the same valve. The load on the front
linkage or rear valve implement discharges when the shut-off
valve lever is turned. This may cause the implements to move
abruptly.
3. Stop the flow through the auxiliary hydraulics valves by setting the control
levers to the middle position.
