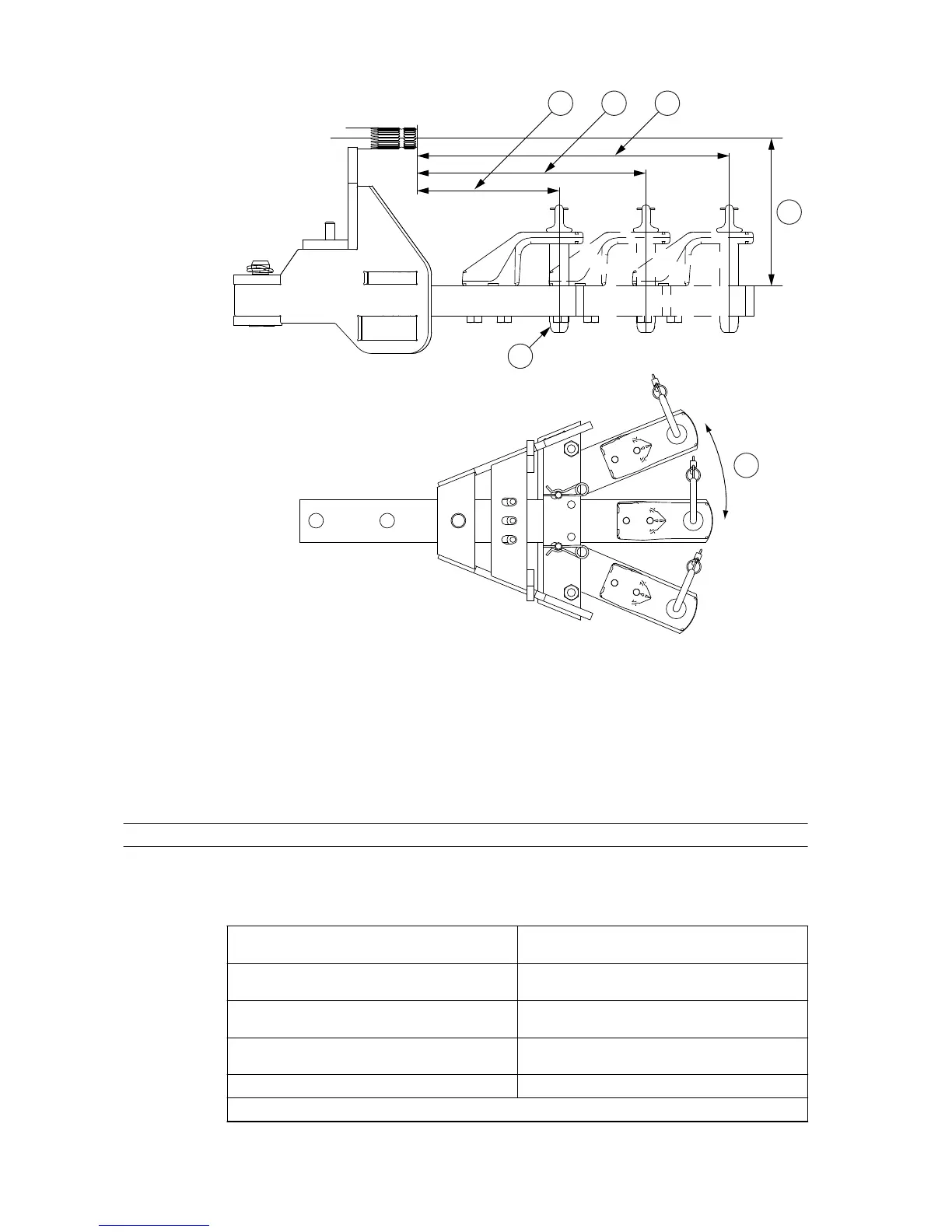

1. 250 mm, 2000 kg
2. 400 mm, 1200 kg
3. 550 mm, 500 kg
4. 245 mm
5. Drawbar pin Ø31.5 mm
6. 21° to both sides
6.14.6.5 Towing device frames
NOTE: The loadings are applicable to all tires.
D-value / Max permissible vertical loading for a trailer
hitch with all jaws
89.3 kN / 2000 kg
D-value / Towing device frame with piton-fix pin, max
permissible vertical loading
89.3 kN / 3000 kg
D-value / Towing device frame with K80 ball hitch,
max permissible vertical loading
89.3 kN / 4000 kg
D-value / Towing device frame drawbar, max
permissible vertical loading
78.5 kN / 1200 kg (400 mm), 500 kg (550 mm)
Automatic jaw, main pin diameter 31.5 mm (ISO 6489-2, B) / 38 mm (ISO 6489-2, C)
