3.21.7.3

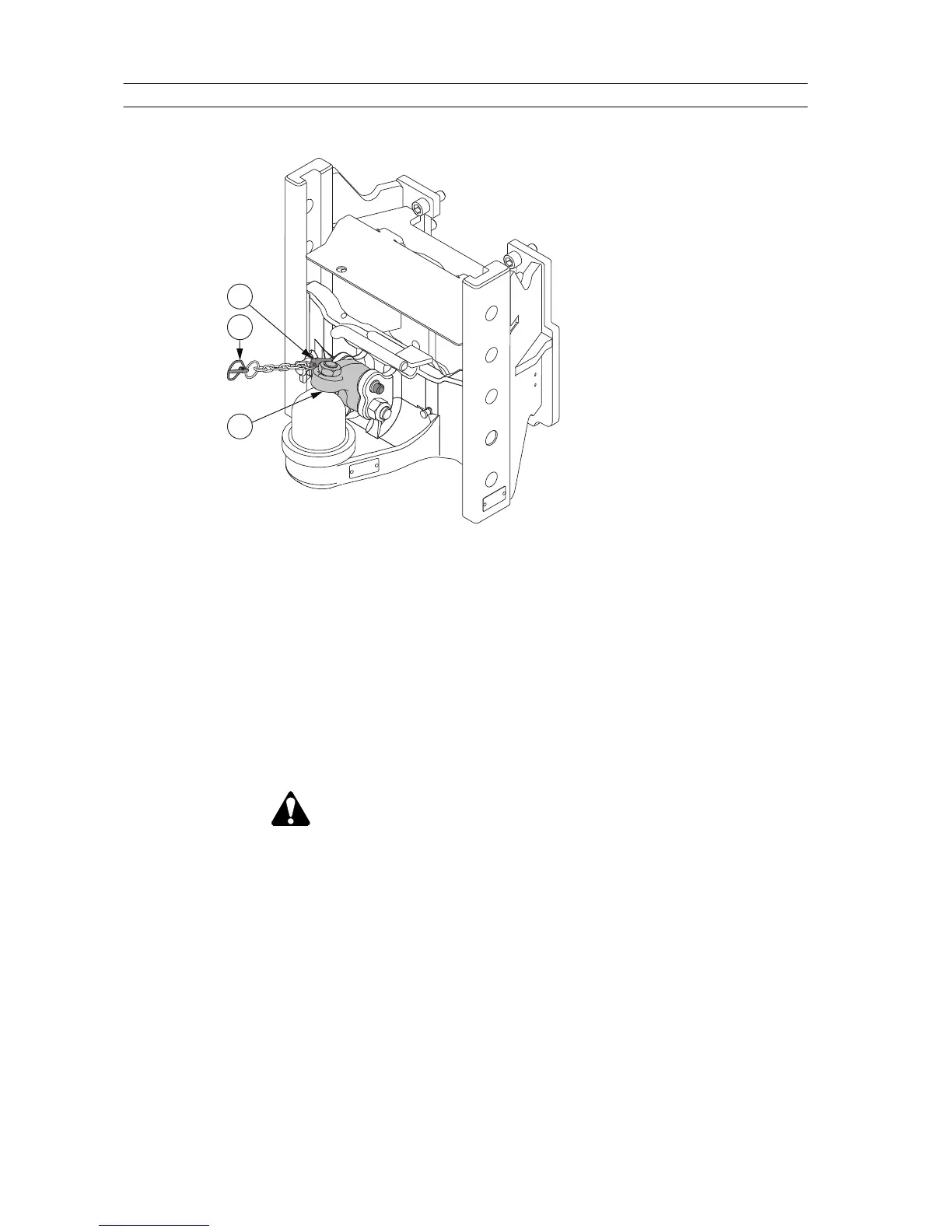

Attaching to the mechanical jaw K80
You can attach a trailer to the mechanical jaw K80.
1
2
3
GUID-90C43526-2E09-4B09-AA84-87EB3D63B950
1.
Pin
2.
Locking pin
3.
Locking
1.
Remove the locking pin.
2.
Pull the pin off and open the locking.
3.
Attach the trailer to the jaw.
4.
Close the locking and fit the pin.
5.
Fit the locking pin.
WARNING: Make sure that the locking pin is fitted correctly.
3. Operation
- 242 -
