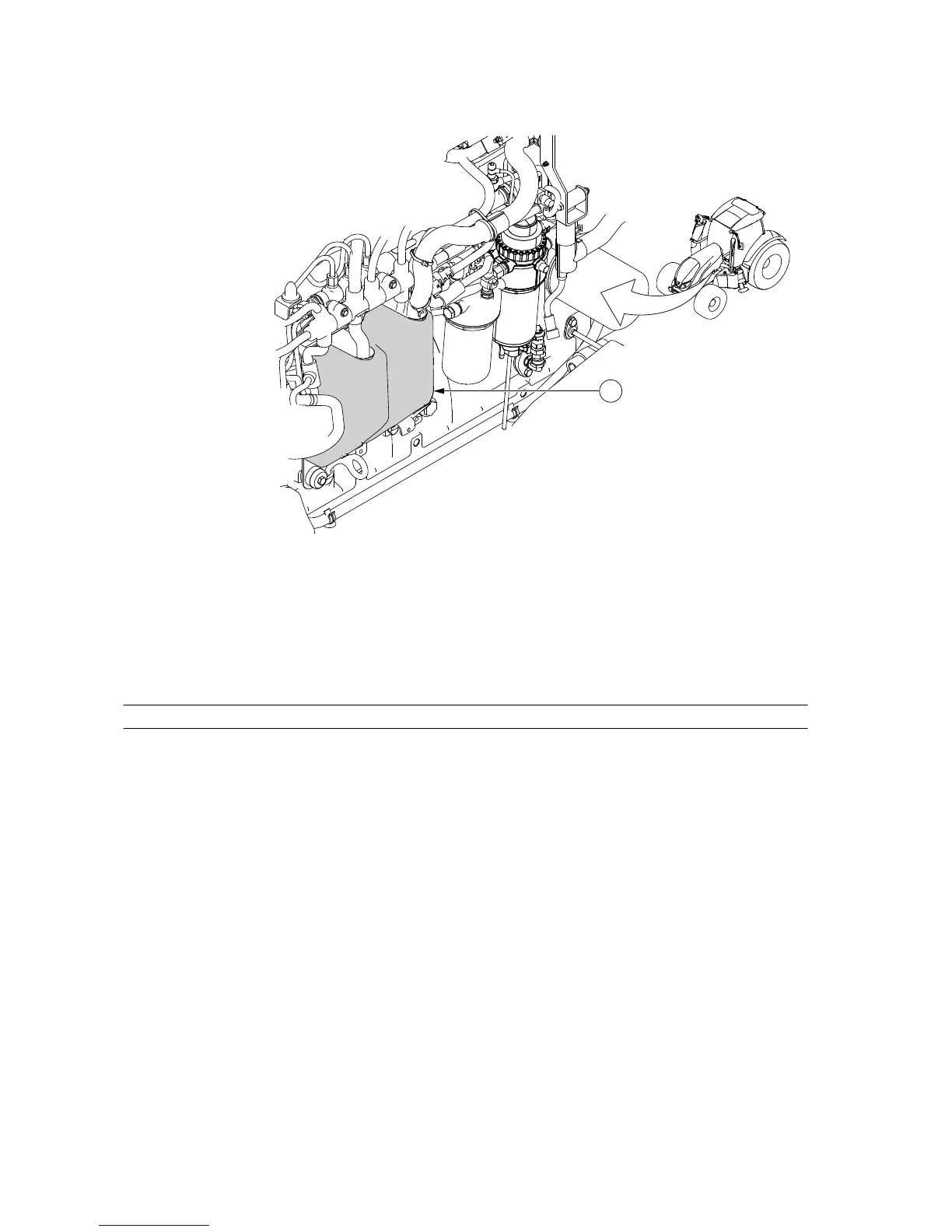

1. Engine control unit cover
4. Disconnect the engine control unit connectors.
Open the connector locking device to disconnect the connectors. When
reconnecting, turn the locking device back to the locking position.
4.8.6.5 Fuses and relays
There are 4 electric centres. The relays related to specific fuses are located in the
electric centres. Other relays are placed outside the electric centres.
The electric centres must always be kept clean. If a fuse blows, the fault must be
traced and repaired.
IMPORTANT: Fuses must not be replaced with new ones of higher rating as this
may damage the electrical equipment.
IMPORTANT: Always use original AGCO Parts fuses.
Power for extra equipment can be taken from the spare fuses or unused extra
equipment fuses. A current source for extra equipment can be connected to the
reserve fuse on the main electric centre. The current is then switched off with the
main switch.
