3.2.12 Power shuttle lever
With the power shuttle lever you can change the driving direction and apply the
parking brake.
GUID-F9BAA5C6-A67B-4A8F-8A35-2C4E78B77A27

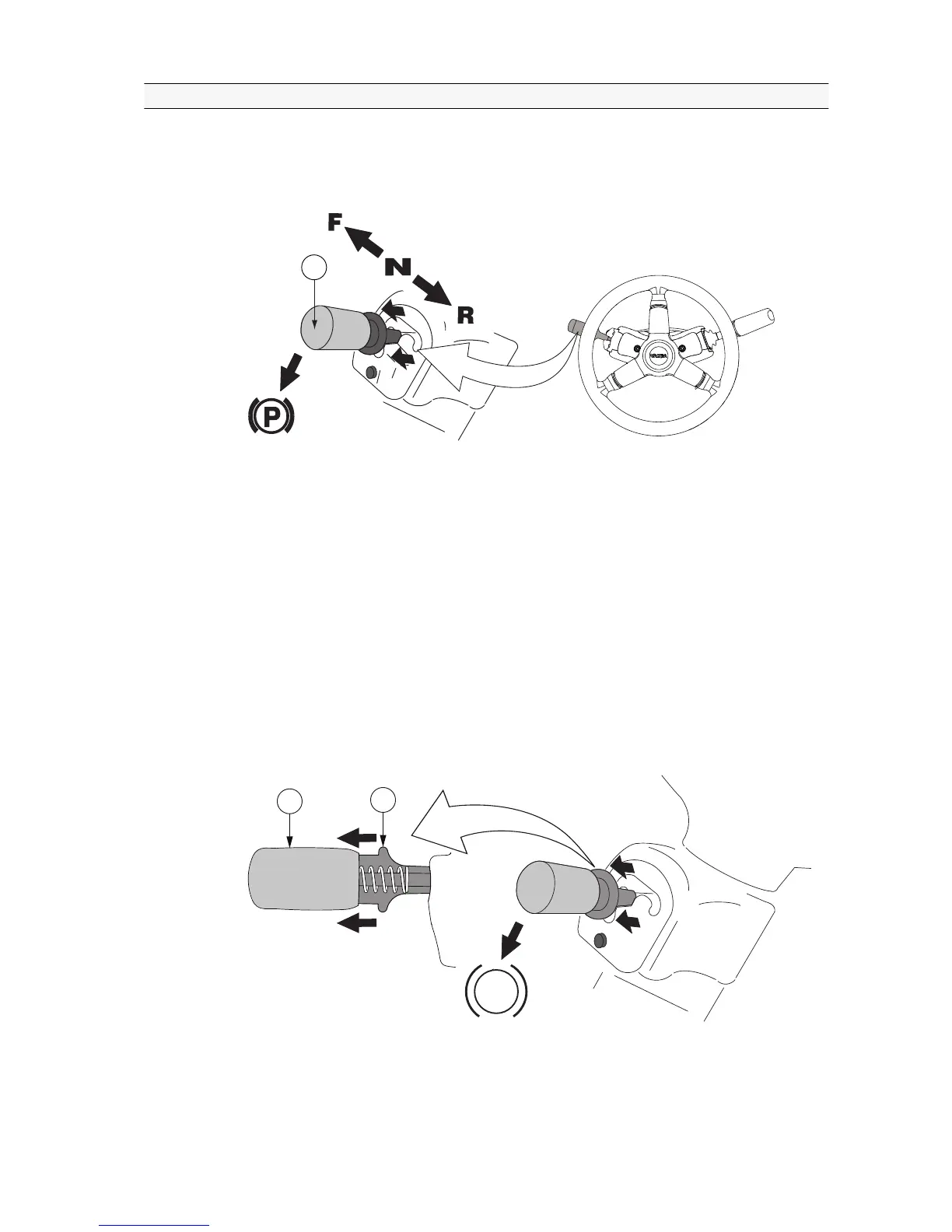

1. Power shuttle lever
• F (front position) = forward driving direction
• N (centre position) = neutral
• R (rear position) = reverse driving direction
• P = parking brake position
With the power shuttle, you can change the driving direction without using the
clutch pedal. However, if you use the clutch pedal, press the pedal fully down
before moving the power shuttle lever.
• With the power shuttle lever in the centre position, the parking brake can be
applied.
• When applying the parking brake, the four-wheel drive (4WD) is engaged and
all wheels brake.
• Always apply the parking brake before turning off the power.
