3.18 Implement signal connection
3.18.1 Implement signal connector
The implement signal connector (extra equipment) complies with the ISO 11786
standard.

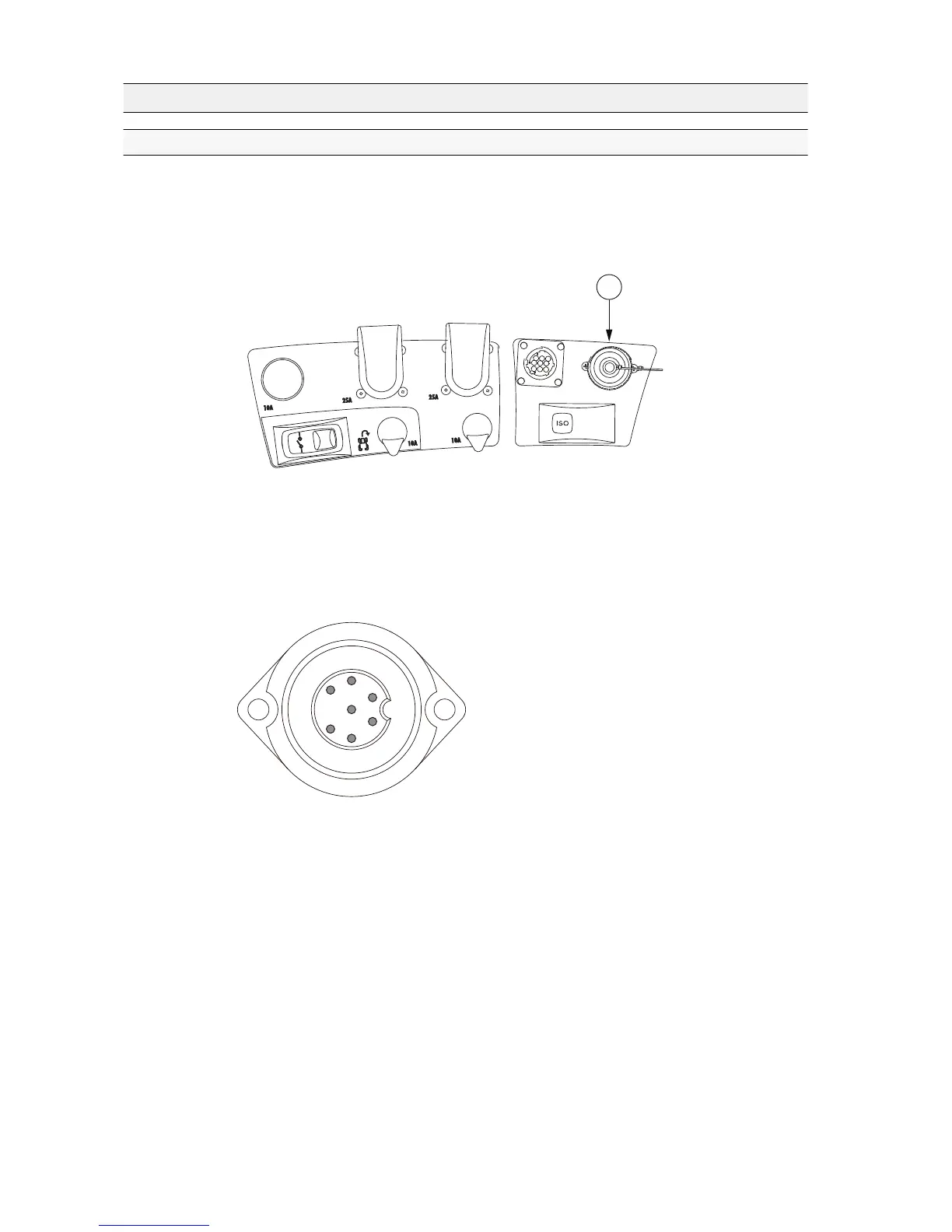

The connector is located on the side panel in the cab.
GUID-17E63215-2963-443F-8C88-D7059BEEBB6E
1. Implement signal connector
An implement connected to the connector can use the following tractor
information:
GUID-E1A08017-905E-416D-AD1D-C0DC97729F19
1. Not in use
2. Transmission speed (wheel speed), 130 Hz/m/s
3. Rear power take-off (PTO) speed, (6 Hz/r/s)
4. Rear linkage, in work (< 1.5 V) / out of work (> 6.3 V)
5. Rear linkage position (0% = 0 V, 100% = 10 V)
6. Power supply (+12V, max 5A) (through the ignition switch)
7. Ground (GND)
3. Operation
- 220 -
