Function Linkage version ACB
With electrohydraulic lower link draft sensing x
Draft control mixing (position control/draft control
mixing)
x
Lowering speed, independent of load x
Transport height x
Drive balance control x
Slip control –

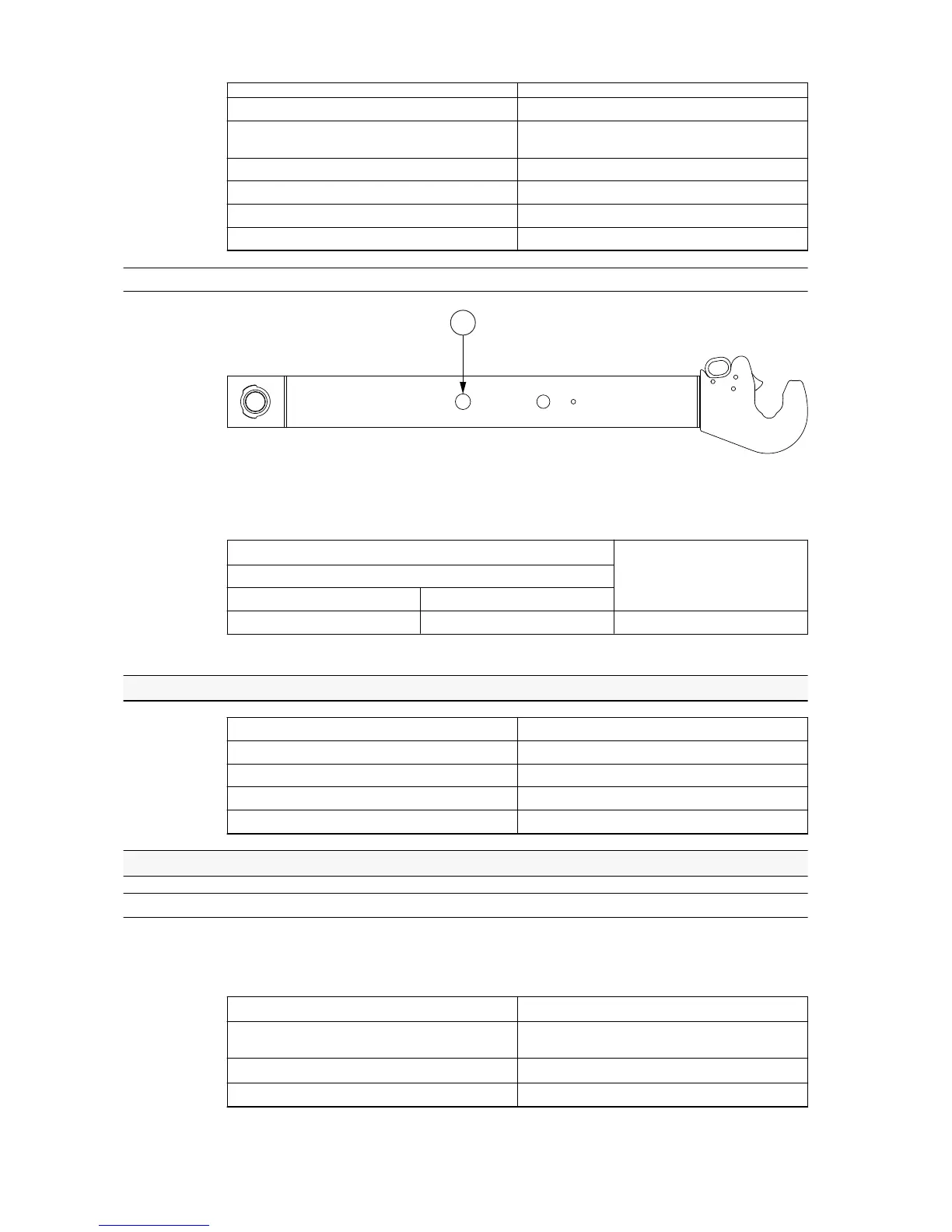

6.14.4.1 Lifting forces and lifting ranges
GUID-360B7CC5-4EDB-4F6E-B6AA-7412E88BD6C2
1. Lifting rod's fastening point
Lifting force (kN)
1)
Lifting range
1)
Lifting cylinder Ø100 mm
Max In whole range
78 kN 70 kN 868 mm
1)
Calculated with rear tyre radius R=925, e.g. tyres 650/65R42
6.14.5 Front linkage
Lifting force
51 kN
Number of lifting cylinders 2
Diameter of the lifting cylinders 90 mm
Lifting range at the end of the lifting links 870 mm
Quick coupling hooks Category 3/2
6.14.6 Towing devices
6.14.6.1 Pick-up hitch
NOTE: The loadings are applicable to all tires.
Maximum permissible vertical loading
3000 kg
1)
Pick-up hitch height from the ground (lowest position
and tyre radius R=925 mm)
216mm
D-value
2)
81.8 kN
Drawbar eye standard ISO 5692-1 or ISO 20019
1)
The maximum axle loading must not be exceeded
6. Technical specifications
- 398 -
