3. Release the lock by pulling the lever forward.
GUID-B36612F7-C256-4F58-B5CC-DEEE19F33DF7
The ball joints lock automatically when attaching the implement.
When locked, the clamp is in view and the lever is in the lower position.
3.13.3 Adjusting lift links
3.13.3.1 Adjusting lift links
IMPORTANT: When adjusting the lift links, make sure that they do not hit the
tractor or damage the implement.
GUID-69E882D5-6136-45CB-94A3-A69C10112801

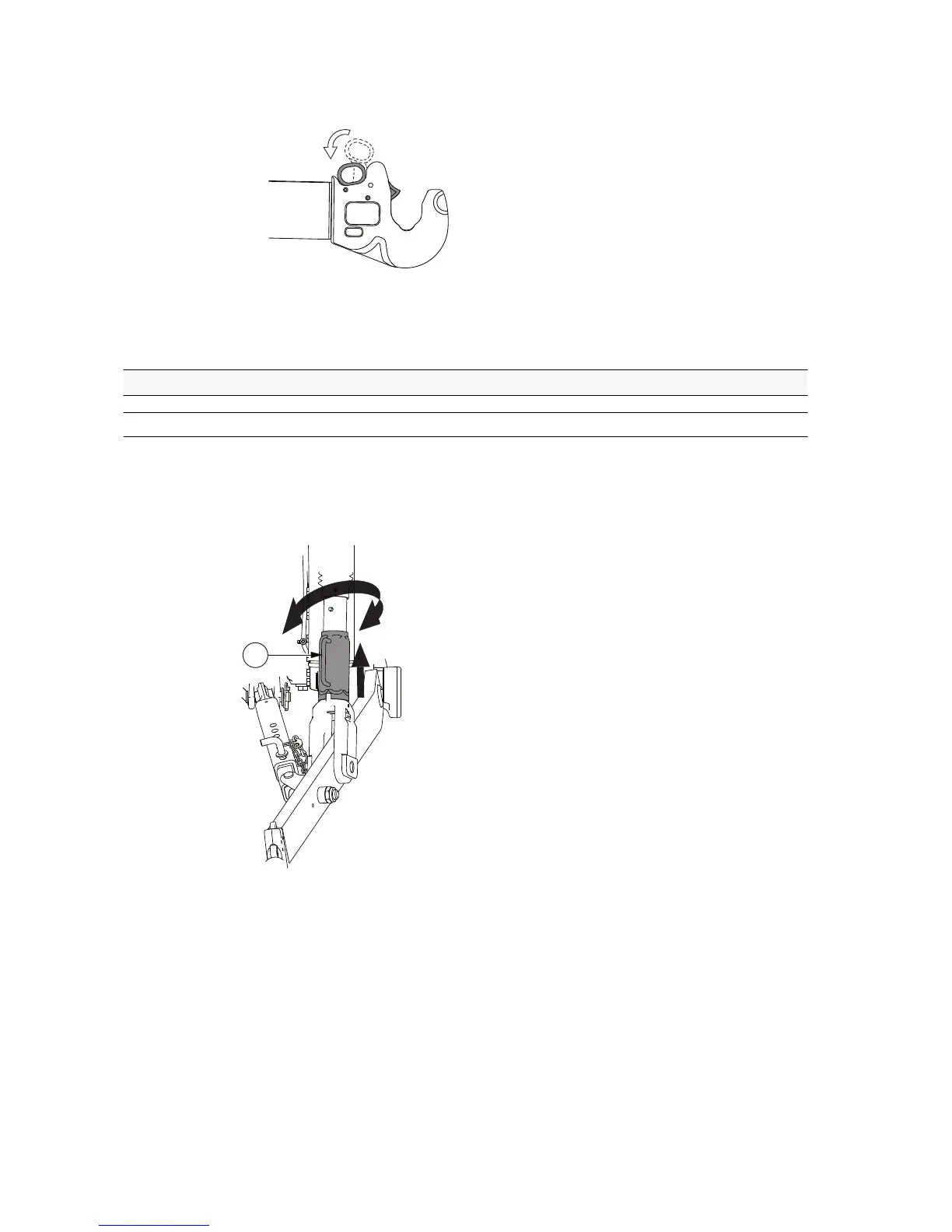

1. Levelling screw
1. Move the linkage to the position where the lift links are free of load.
2. Lift up the levelling screws and turn them in the required direction to adjust
the length of the lift links.
3. Lower the levelling screws back to the locked position after adjustment.
