Eingangsnr.:
Input No.:
EIN/ON (24 V) FW
AUS/OFF (0 V)
5 4 3 2 1
Ausgangsnr.:
Output No.:
EIN/ON (24 V)
AUS/OFF (0 V)
AL 12 11
EIN/ON (24 V)
AUS/OFF (0 V)
Operating & Mounting instructions – 8 074 143.03/03 – Page 17
Parameters

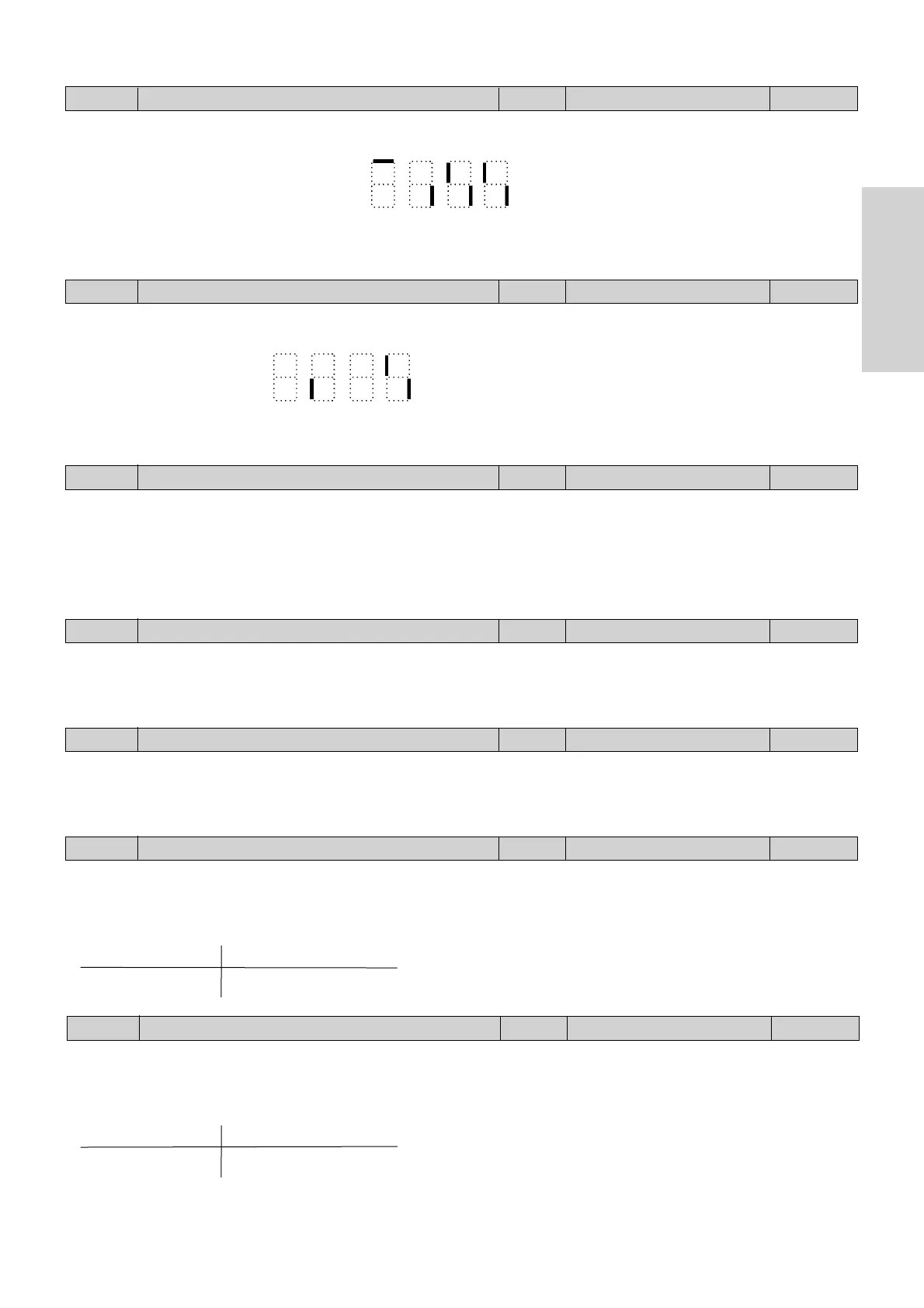

d005 Condition of digital inputs - read only -
Status display (ON/OFF) of digital inputs on the LED display.
d006 Condition of digital outputs - read only -
Status display (ON/OFF) of digital outputs on the LED display.
d007 Output frequency scaled - read only -
Displays the scaled output frequency on the LED display. The scaling factor can be set using
parameter b086.
Display = Output frequency * b086
This function is used e.g. for converting the frequency into speed.
d013 Output voltage - read only -
Displays the output voltage on the LED display.
If this display mode is selected, the V-LED right of the display lights up.
d014 Output power - read only -
Displays the output power on the LED display.
If this display mode is selected, the A-LED and V-LED right of the display light up.
d016 Operating hours motor - read only -
Displays the operating hours of the motor with d016, that means the time how long the inverter is in
operating (Run) state.
0. - 9999. Operating hours x1
1000 - 9999 Operating hours x10
d017 Operating hours inverter - read only -
Displays the operating hours of the inverter, that means the time how long the inverter is supplied
with voltage.
0. - 9999. Operating hours x1
1000 - 9999 Operating hours x10
