Parameters
b090

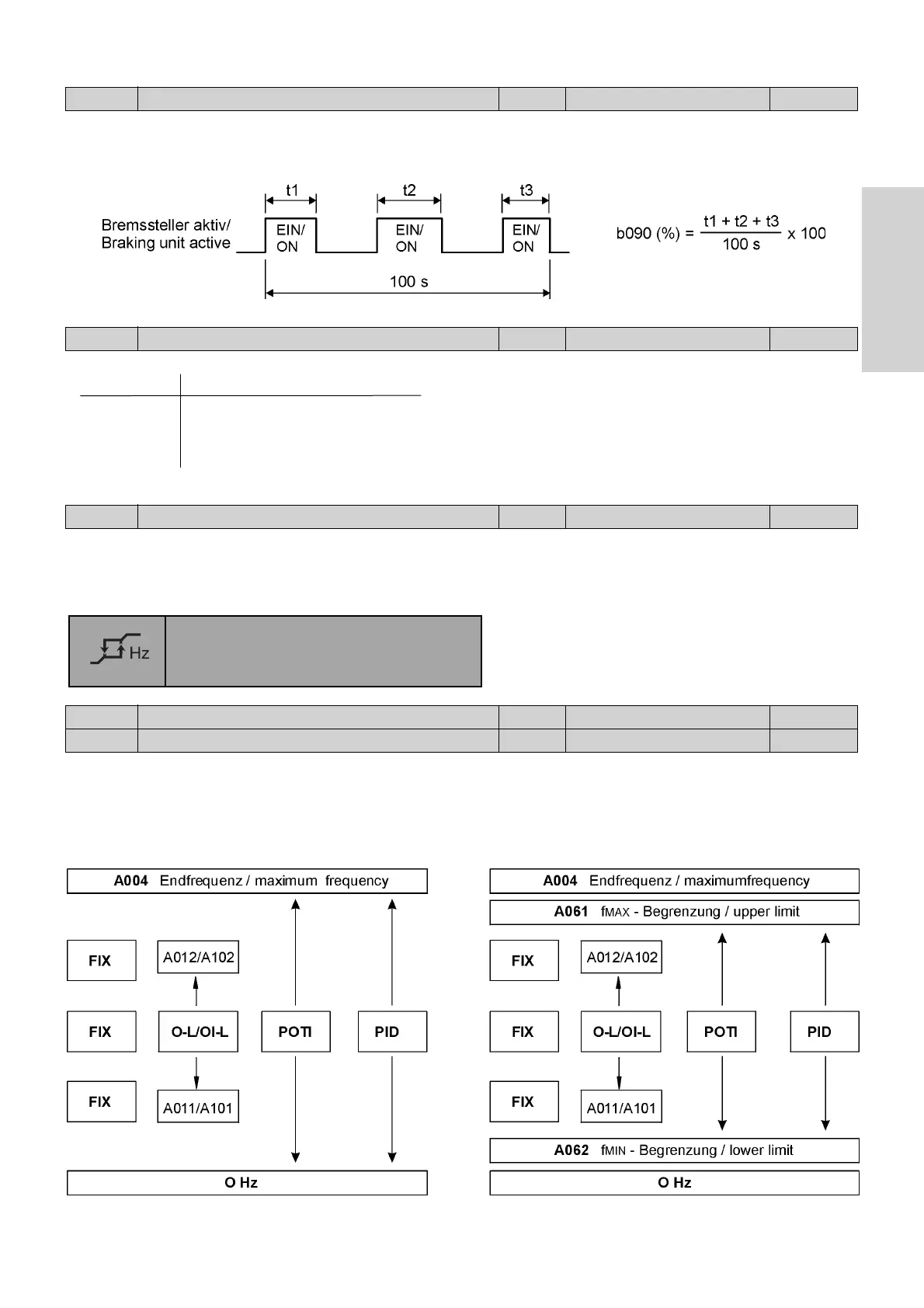

Dynamic braking ratio VIC 0,0...100,0 % 0,0 %
Adjusting the allowed duration time of the braking resistor (only at CX profi 11 and 15).
Setting 0,0 % means that the internal braking unit is not active.
Frequency limits
Limits
A061
Frequency upper limit VIC 0,00...400,0 Hz 0,00 Hz
A062
Frequency lower limit VIC 0,00...400,0 Hz 0,00 Hz
Defining the frequency range within a range from 0 to parameter A004 (max. 400 Hz). If the values
are set to 0,00 Hz, their function is cancelled.
Without parameter A061 and A062 With parameter A061 and A062
b095
Dynamic braking selection VIC 00 to 02 00
Setting Function
00 not active
01 only active during operation
02 always active
b096
Dynamic braking ON-level VIC 660...760 V 720 V
Defines the ON-level of the braking unit depending on the DC link voltage.
