A015 External frequency start pattern O (0...10V) VIC 00 or 01 01
A105 Ext. frequency start pattern OI (4...20mA) VIC 00 or 01 01
Setting Function
00 Motor starts-up with external frequency
start setting
01 Motor does not start-up until a
reference > A013

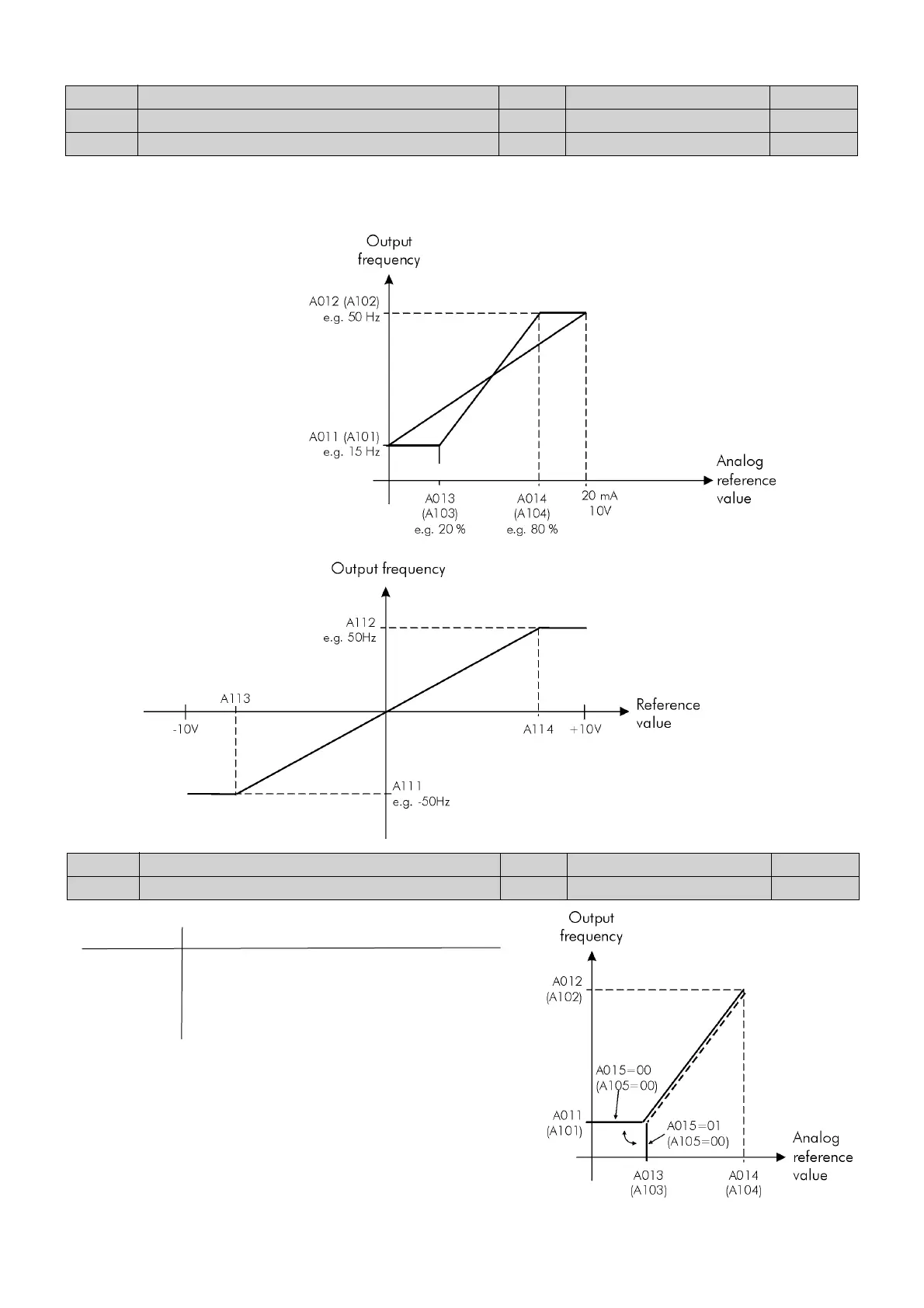

A014 Analog signal reference for end O (0...10V) VIC 0...100 % 100 %
A104 Analog signal ref. for end OI (4...20mA) VIC 0...100 % 100 %
A114 Analog signal ref. for end O2 (-10...+10V) VIC -100...+100 % 100 %
This parameters define the maximum reference value if it should be other than 10 V, 20 mA or
+10 V. 100 % are equivalent to 10 V or 20 mA.
