Analog outputs
Analog output
C027
Function of FM PWM output VIC 00 to 07 00
C028
Function of AM analog output VIC 00 to 07 00
C029
Function of AMI analog output VIC 00 to 07 00
Programming the function of the analog/digital output FM and of the analog outputs AM and AMI.
Setting Function
00 Analog display of the frequency
01 Analog display of the current
03 Digital display of the frequency (setting only possible at C027)
04 Analog display of the output voltage
05 Analog display of the power taken up
06 Analog display of the thermal utilization
07 Analog display of the LAD frequency
Function: Display ooutput ffrequency C027, CC028 oor CC029 == 000
10V or 20mA correspond with the maximum frequency (parameter A004 or A204).
Function: Display oof mmotor ccurrent C027, CC028 oor CC029 == 001
10V or 20mA correspond with 200% of the nominal inverter current.

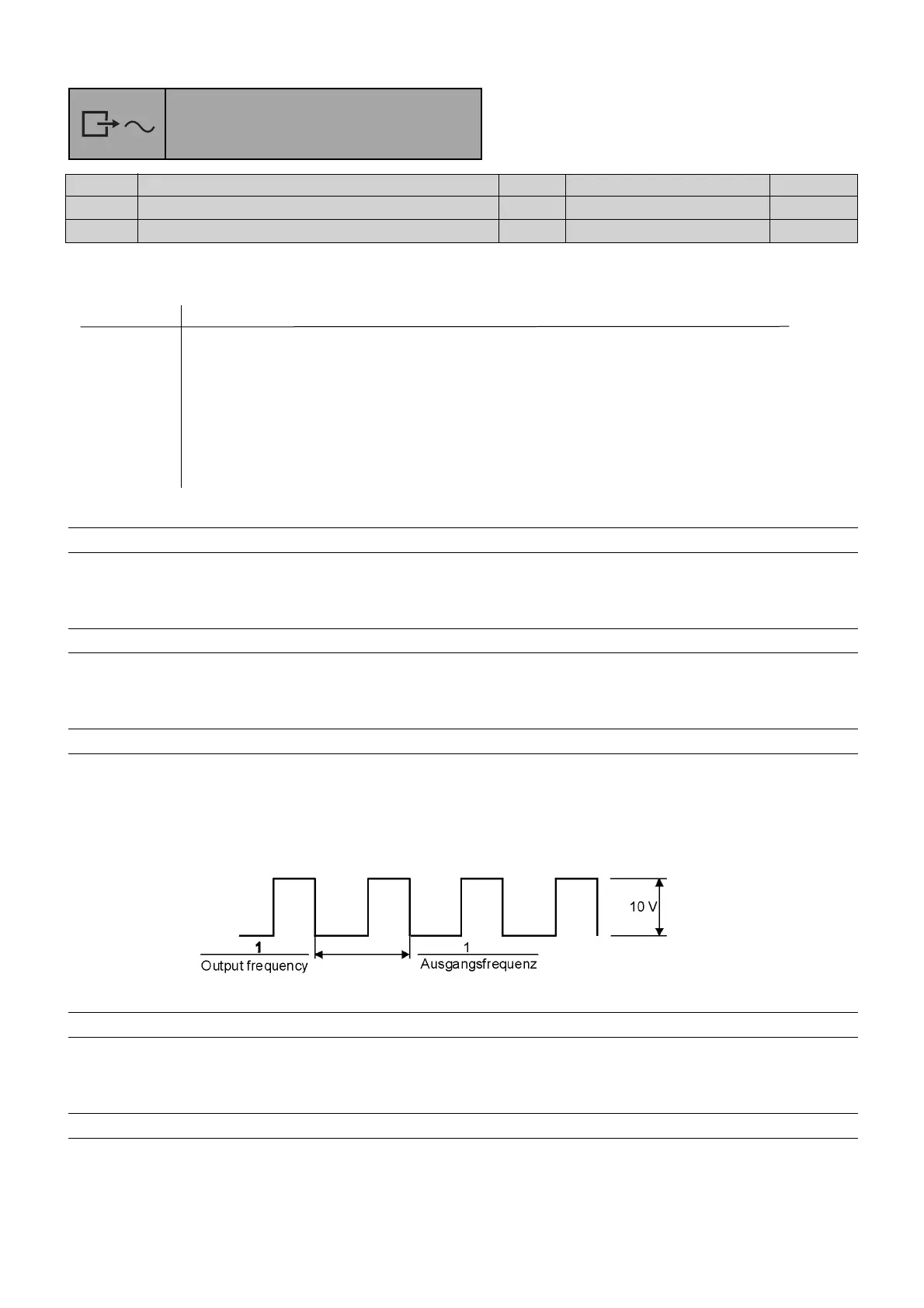

Function: Digital ooutput ffrequency CC027 == 003
There is a digital frequency signal corresponding to the output frequency at the output. The output
delivers a 1:1 square signal with 10 V amplitude (a different multiplication factor, max. 3,6 kHz, can
be set using parameter b086).
This function is only possible at analog/digital output FM (parameter C027).
Function: Analog ddisplay oof mmotor vvoltage C027, CC028 oor CC029 == 004
10V or 20mA correspond with the maximum motor voltage A082.
Function: Analog ddisplay oof ppower cconsumption C027, CC028 oor CC029 == 005
10V or 20mA correspond with 200% of the nominal inverter power.
