5-4
E
POWR
FLYWHEEL MAGNETO
FLYWHEEL MAGNETO

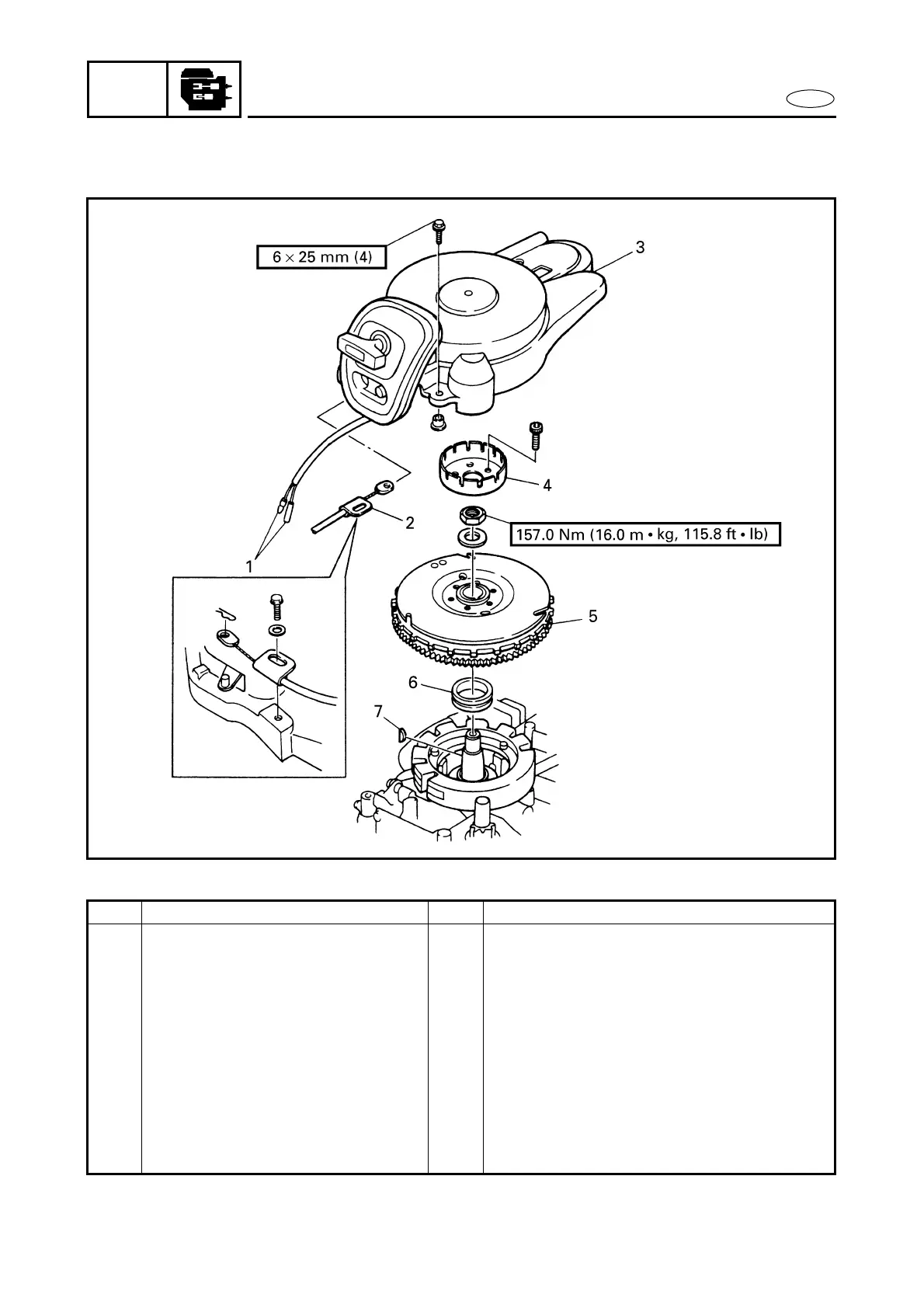

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
FLYWHEEL MAGNETO REMOVAL
Follow the left “Step” for removal.
1 Low-oil-pressure warning lamp
lead
2
2 Start-in-gear protection device
wire (MH)
1
3 Flywheel magneto cover assy. 1
4 Starter hub (MH) 1
5 Flywheel magneto 1
6 Spring spacer 1
7 Woodruff key 1
Reverse the removal steps for installation.
