7-14
E
BRKT

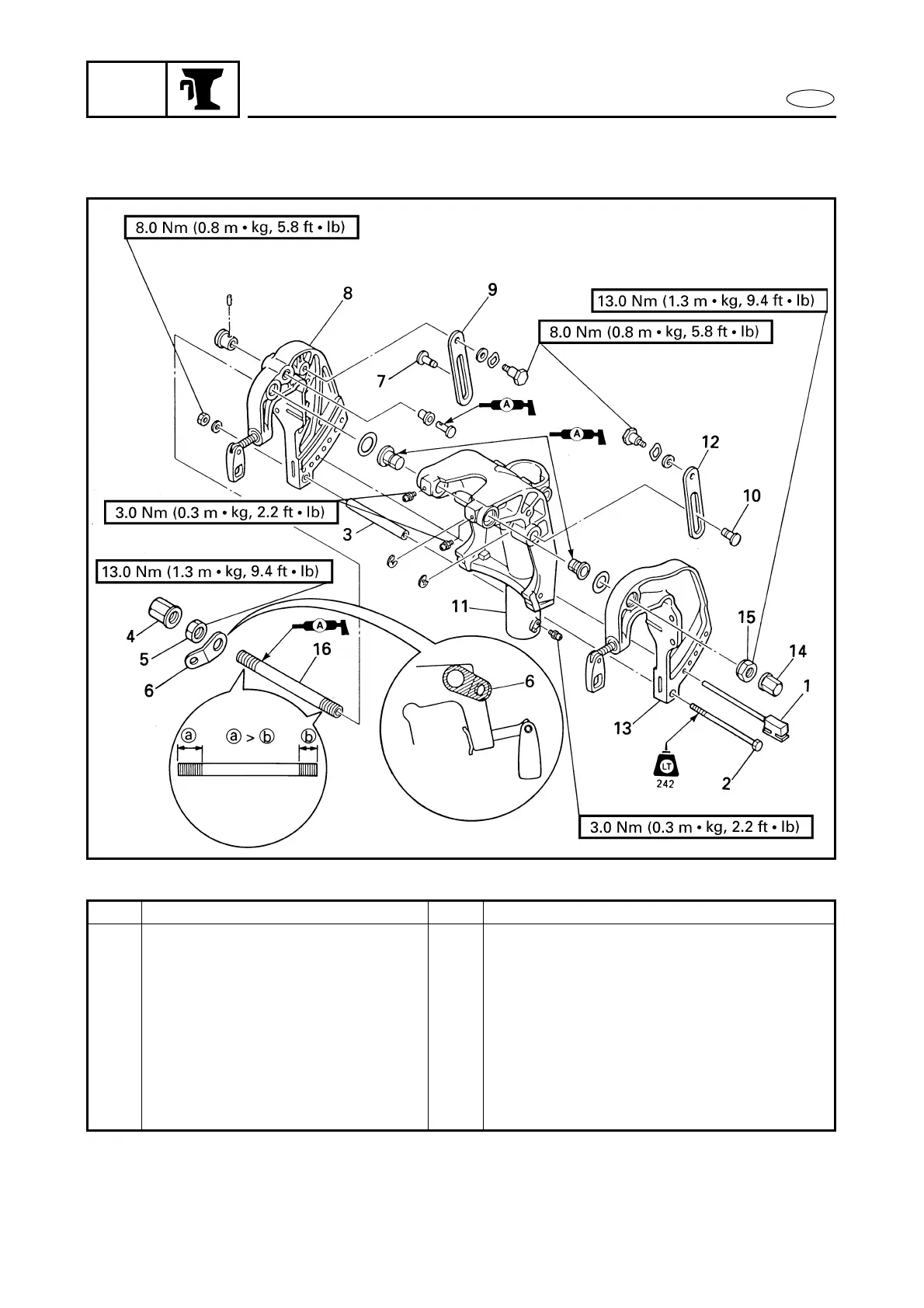

CLAMP BRACKET
EXPLODED DIAGRAM
Step
Procedure/Part name
Q’ty
Service points
10
Pin
1
11
Swivel bracket
1
12
Tilt stop lever
1
13
Left clamp bracket
1
14
Cap nut
1
15
Nut
1
16
Shaft bolt
1
Reverse the disassembly steps for instal-
lation.
311
