7-17
E
BRKT
SWIVEL BRACKET
SWIVEL BRACKET

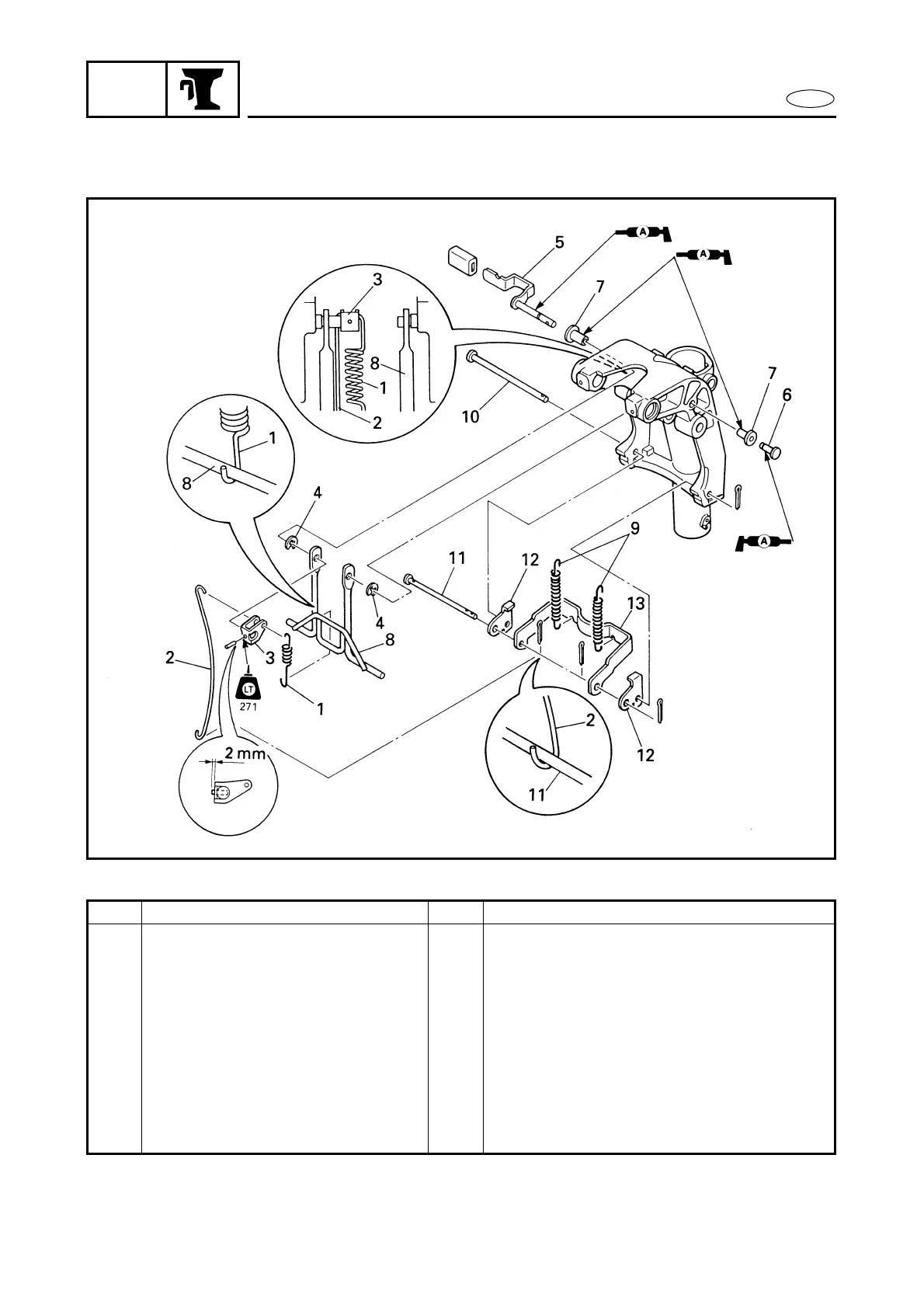

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
SWIVEL BRACKET
DISASSEMBLY
Follow the left “Step” for removal.
1
Spring
1
2
Tilt lock rod
1
3
Tilt lever
1
4
Circlip
2
5
Control lever
1
6
Shaft pin
1
7
Bushing
2
8
Tilt lock arm
1
317
