Yamaha F25A - Cartridge Spring Installation; Sheave Drum Installation

5-10
POWR
E
RECOIL STARTER
SERVICE POINTS

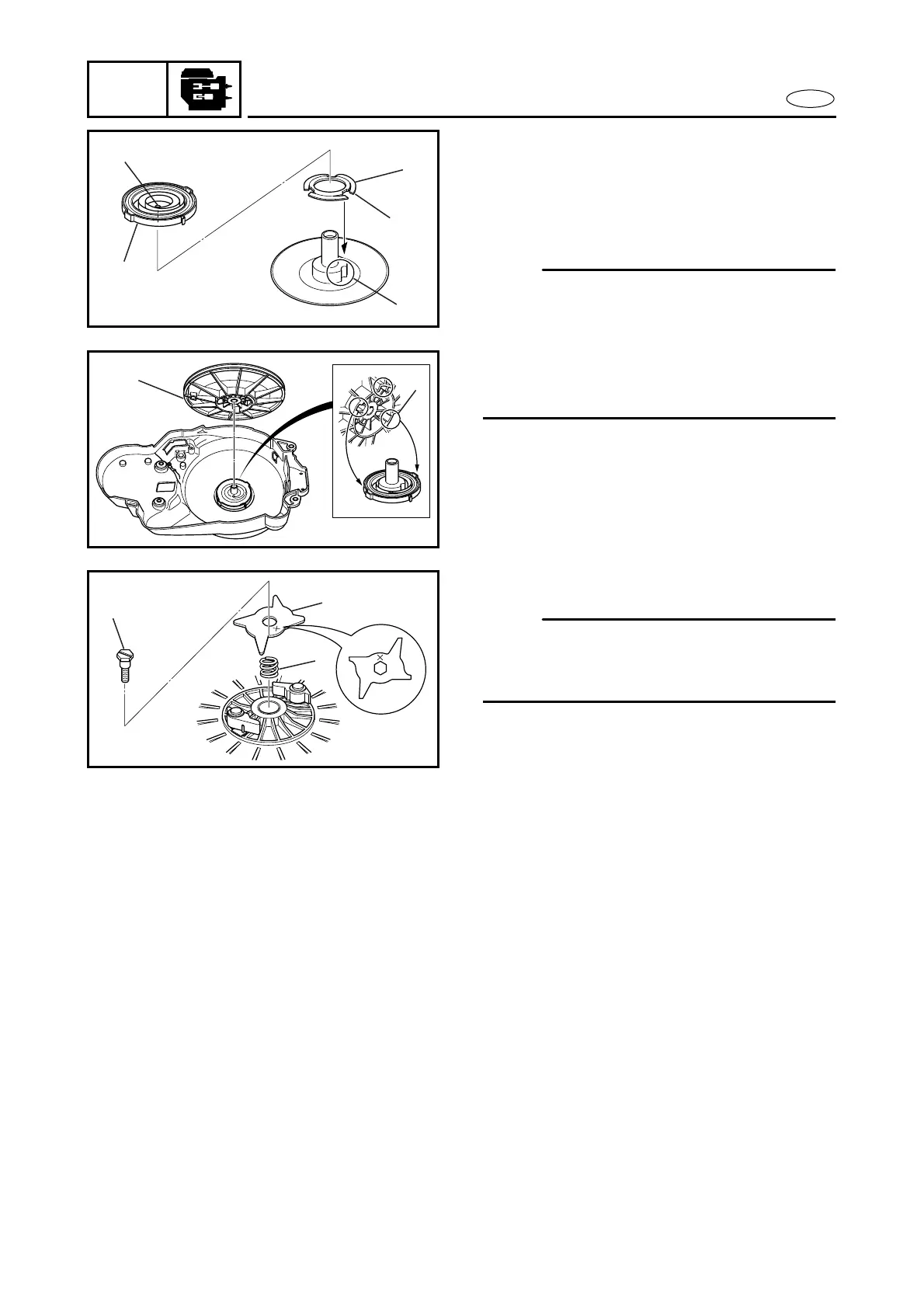

Cartridge spring installation
1. Install:
●
Spring washer 1
●
Spiral spring 2
NOTE:
●
Install the spring washer with its projec-
tions a facing down towards the recoil
starter case.
●
Position the inner end b of the cartridge
spring into the cutaway c in the recoil
starter case.
Sheave drum installation
1. Install:
●
Starter pulley 1
●
Spring 2
● Drive plate 3
● Bolt 4
NOTE:
Position the projection on the cartridge
spring case into the cutaway a in the
starter pulley.

b

a

c

1

2

1

a

2

3

4
