5-14
E
POWR
ELECTRICAL UNIT
ELECTRICAL UNIT

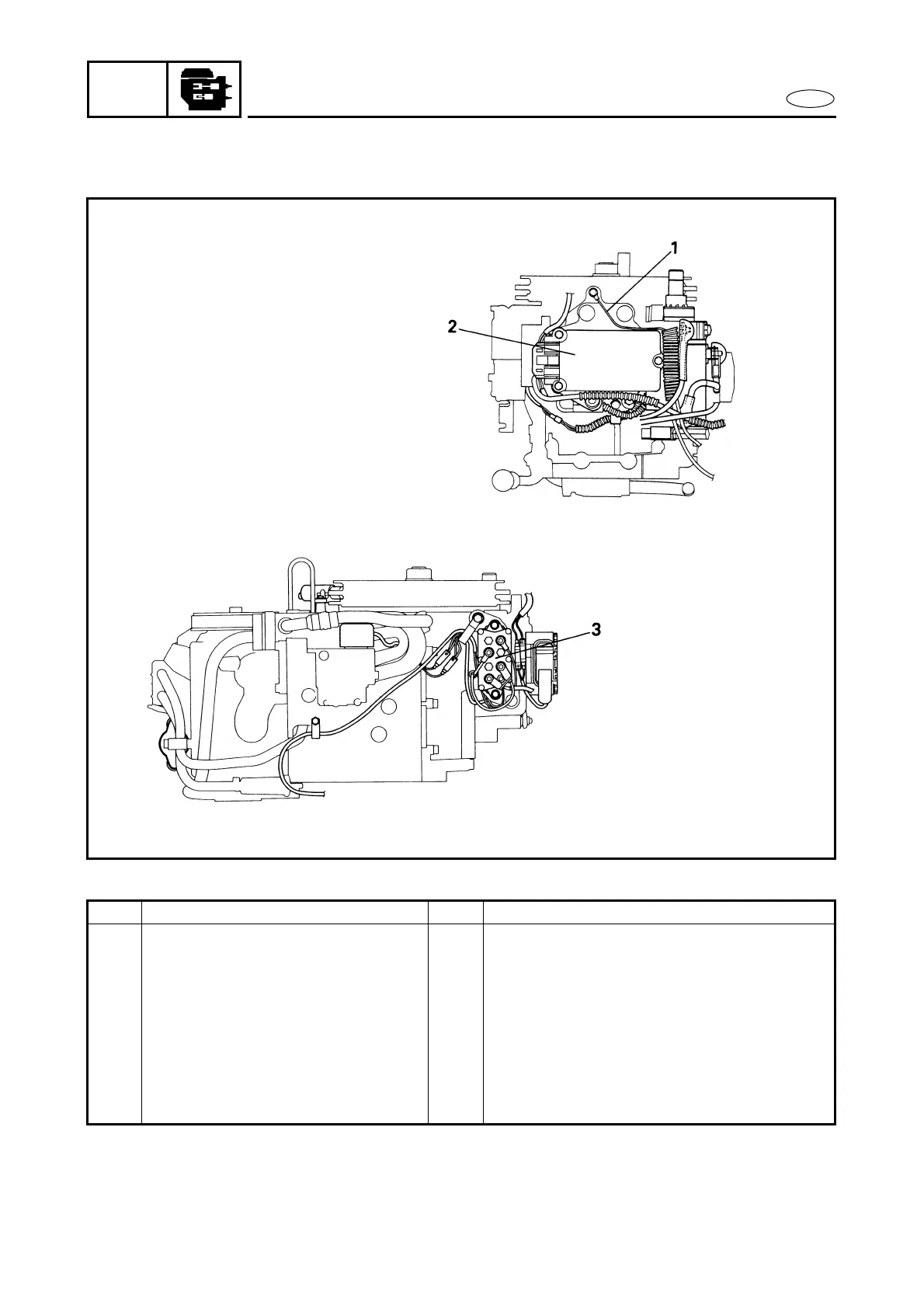

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
ELECTRICAL UNIT REMOVAL
Follow the left “Step” for removal.
Fuel
pump
Refer to “FUEL JOINT, FUEL FILTER, AND
FUEL PUMP” in chapter 4.
Carburetor
unit
Refer to “CARBURETOR UNIT” in chapter
4.
1
Engine stop switch ground lead
(MH, EH, EHT)
1
2
CDI unit
1
3
PTT relay (EHT, ET)
1
139
141
