8-1
E
–+
ELEC

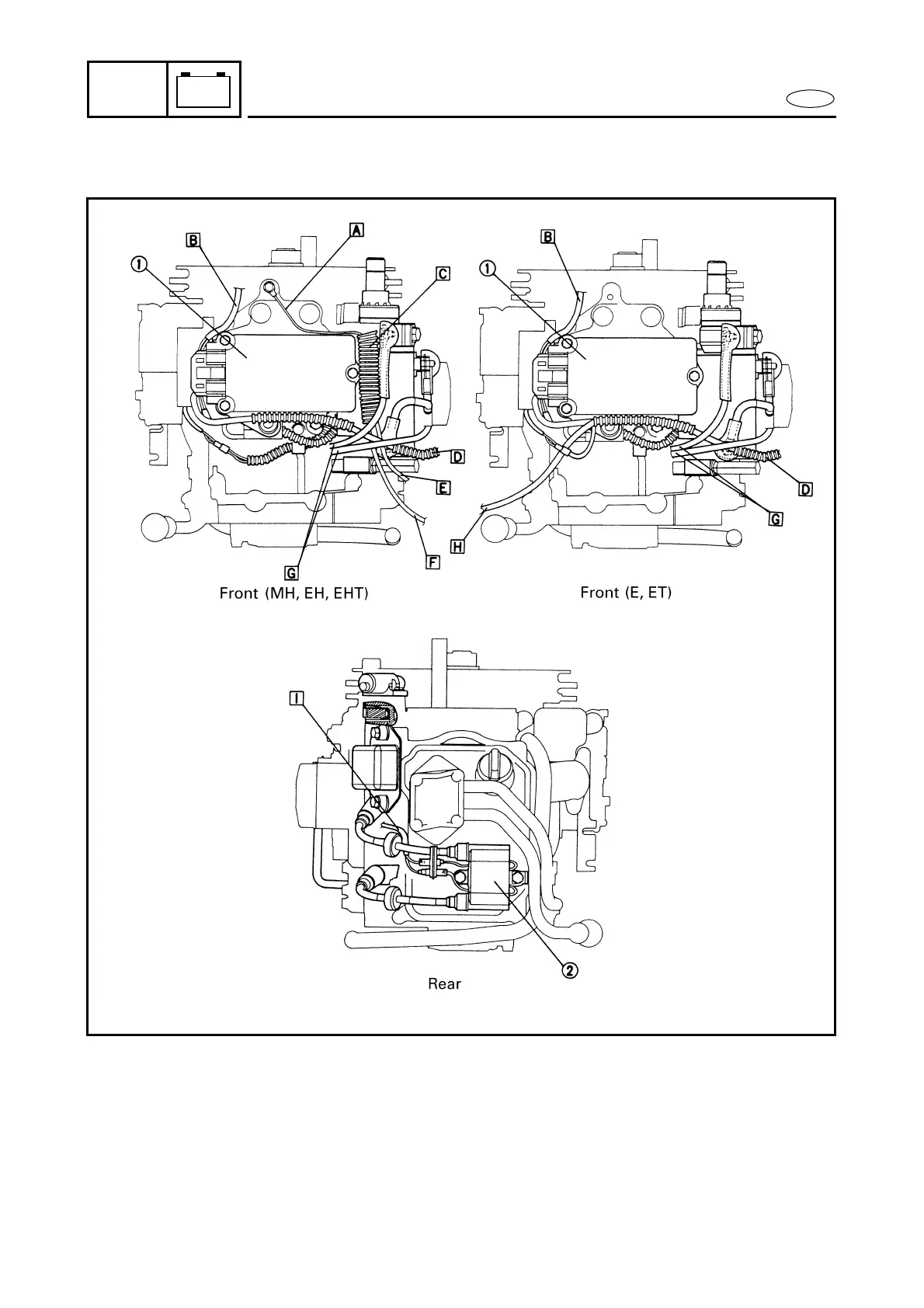

ELECTRICAL COMPONENTS
ELECTRICAL COMPONENTS
(Front and rear views)
1
CDI unit
2
Ignition coil
Å
Engine stop switch ground lead
(MH, EH, EHT)
ı
To low-oil-pressure warning
lamp
Ç
To starter switch (EH, EHT)
Î
Wire harness
‰
To neutral switch (EH, EHT)
Ï
To engine stop switch
(MH, EH, EHT)
Ì
To battery (EH, EHT, E, ET)
Ó
To remote control (E, ET)
È
To wire harness
