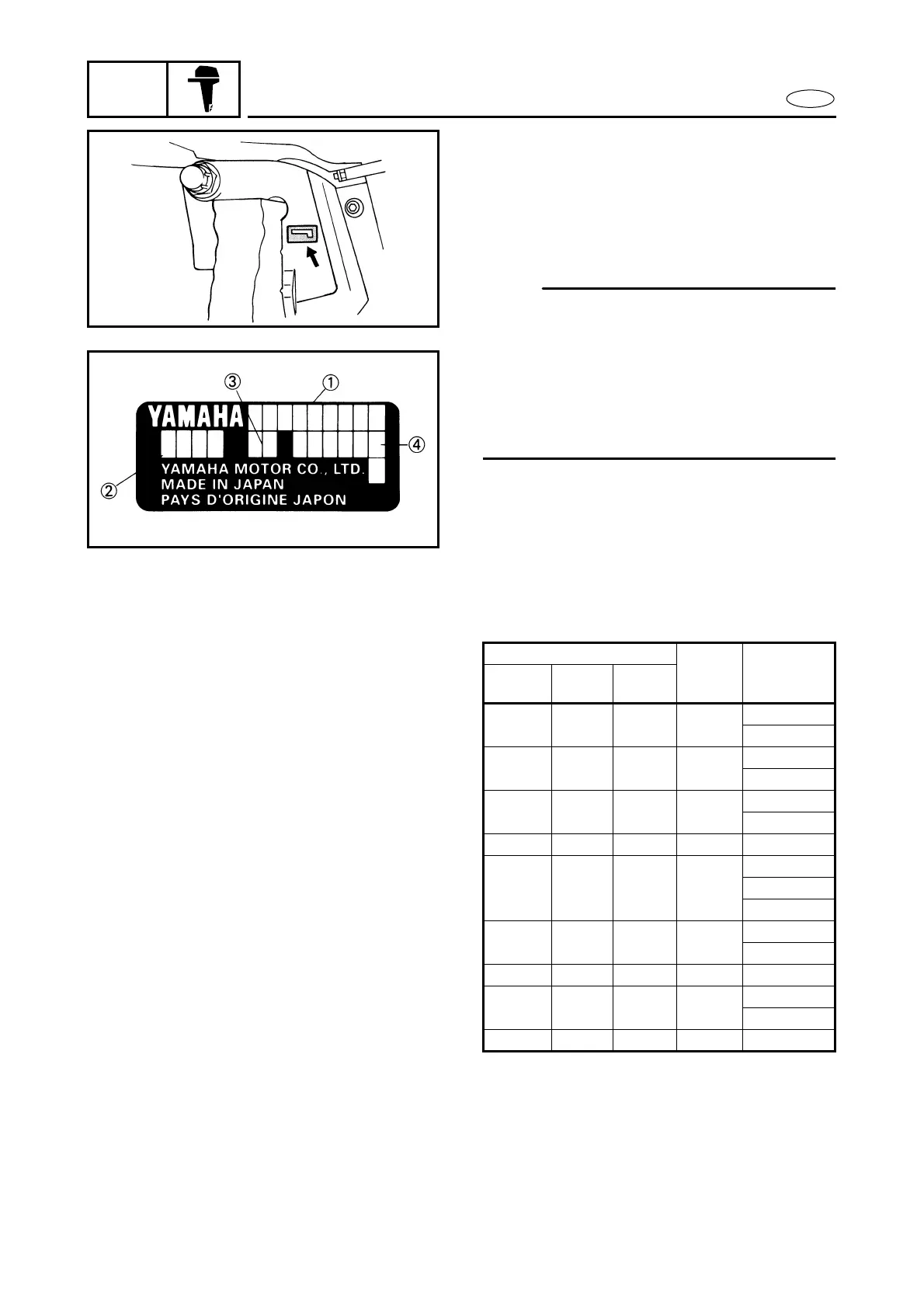

1-1
GEN
INFO
E
IDENTIFICATION
A60000-1*
IDENTIFICATION
SERIAL NUMBER
The of the outboard motor’s serial number
is stamped on a label which is attached to
the port side of the clamp bracket.
NOTE:
For USA model:
As an antitheft measure, a special label on
which the outboard motor’s serial number
is stamped is bonded to the port side of the
clamp bracket. The label is specially treated
so that peeling it off causes cracks across
the serial number.
1
Model name
2
Approved model code
3
Transom height
4
Serial number
STARTING SERIAL NUMBERS
The starting serial number blocks are as fol-
lows:
Model name
Approval
model
code
Starting
serial
number
World-
wide
USA CANADA
F20AMH 65W
S: 650101 ~
L: 750101 ~
F20AEH 65W
S: 700101 ~
L: 800101 ~
F20AE 65W
S: 100412 ~
L: 500101 ~
F20AET 65W L: 600428 ~
F25AMH F25MH F25MH 65W
S: 150101 ~
L: 250101 ~
X: 550101 ~
F25AEH F25EH 65W
S: 050503 ~
L: 350865 ~
F25AEHT F25TH 65W L: 450355 ~
F25AE F25ER 65W
S: 000183 ~
L: 300756 ~
F25AET F25TR F25TR 65W L: 401032 ~
