SHIMMING (EXCEPT FOR USA AND CANADA)
SHIM SELECTION
(EXCEPT FOR USA AND CANADA)

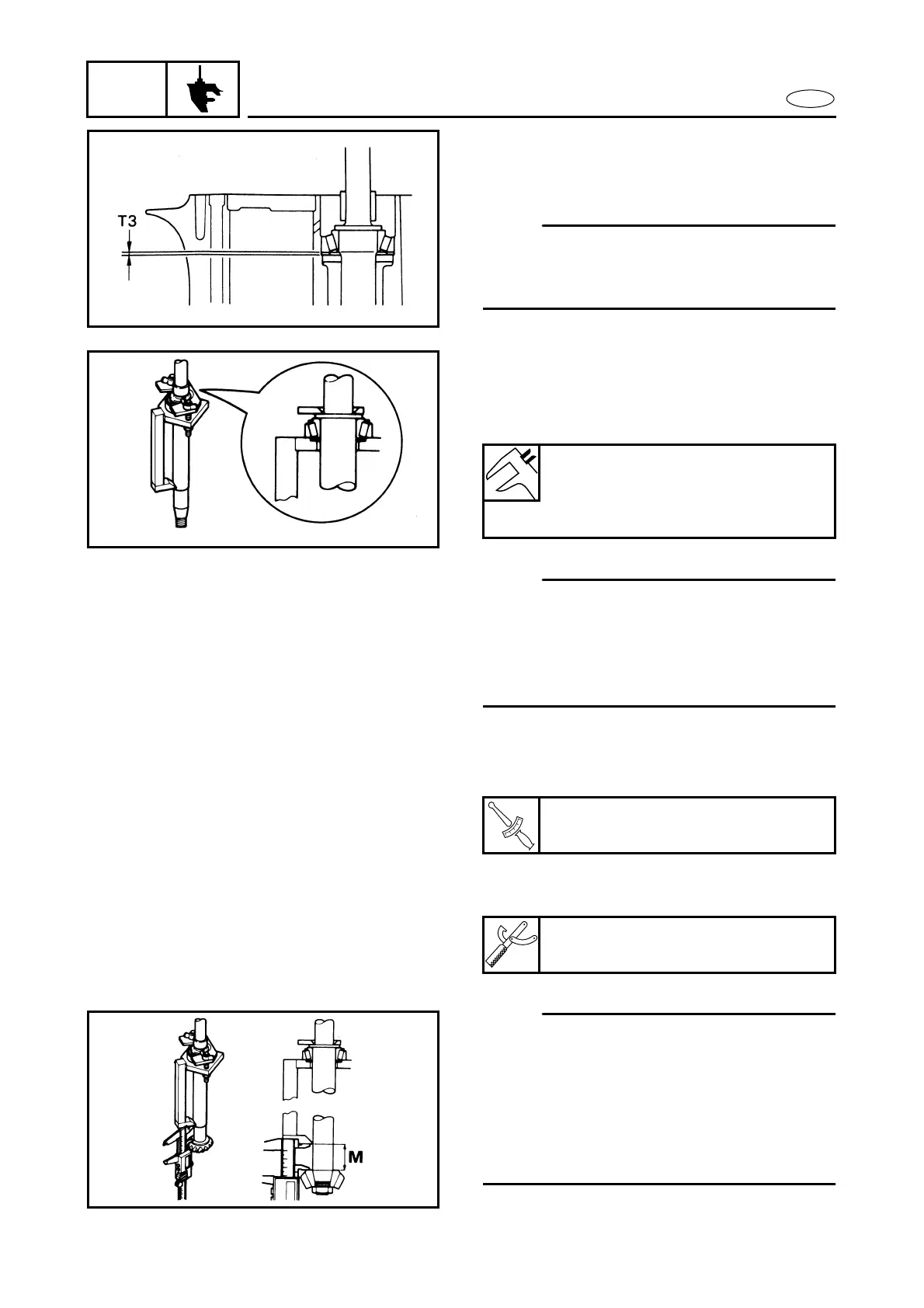

Pinion gear shim
NOTE:
Find the pinion gear shim thickness (T3) by
selecting shims until the specified measure-
ment (M) is obtained with the special tool.
1. Install:
● Pinion height gauge
● Drive shaft
● Drive shaft bearing
NOTE:
● Attach the pinion height gauge to the
drive shaft so that the drive shaft is cen-
tered in the gauge’s hole.
● After the wing nuts contact the fixing
plate, tighten them another 1/4 of a turn.
2. Install:
● Pinion gear
● Pinion gear nut
3. Measure:
● Measurement (M)
NOTE:
● Measure the clearance between the pin-
ion height gauge and the pinion gear as
shown.
● Perform the same measurement at three
points on the pinion gear.
● Find the average of the measurements
(M).
Pinion height gauge:
90890-06702
Drive shaft holder:
90890-06517
T
R
.
.
Pinion gear nut:
50 Nm (5.0 m • kg, 36 ft • lb)
Digital caliper:
90890-06704
