8-26
–+
ELEC
E
CHARGING SYSTEM

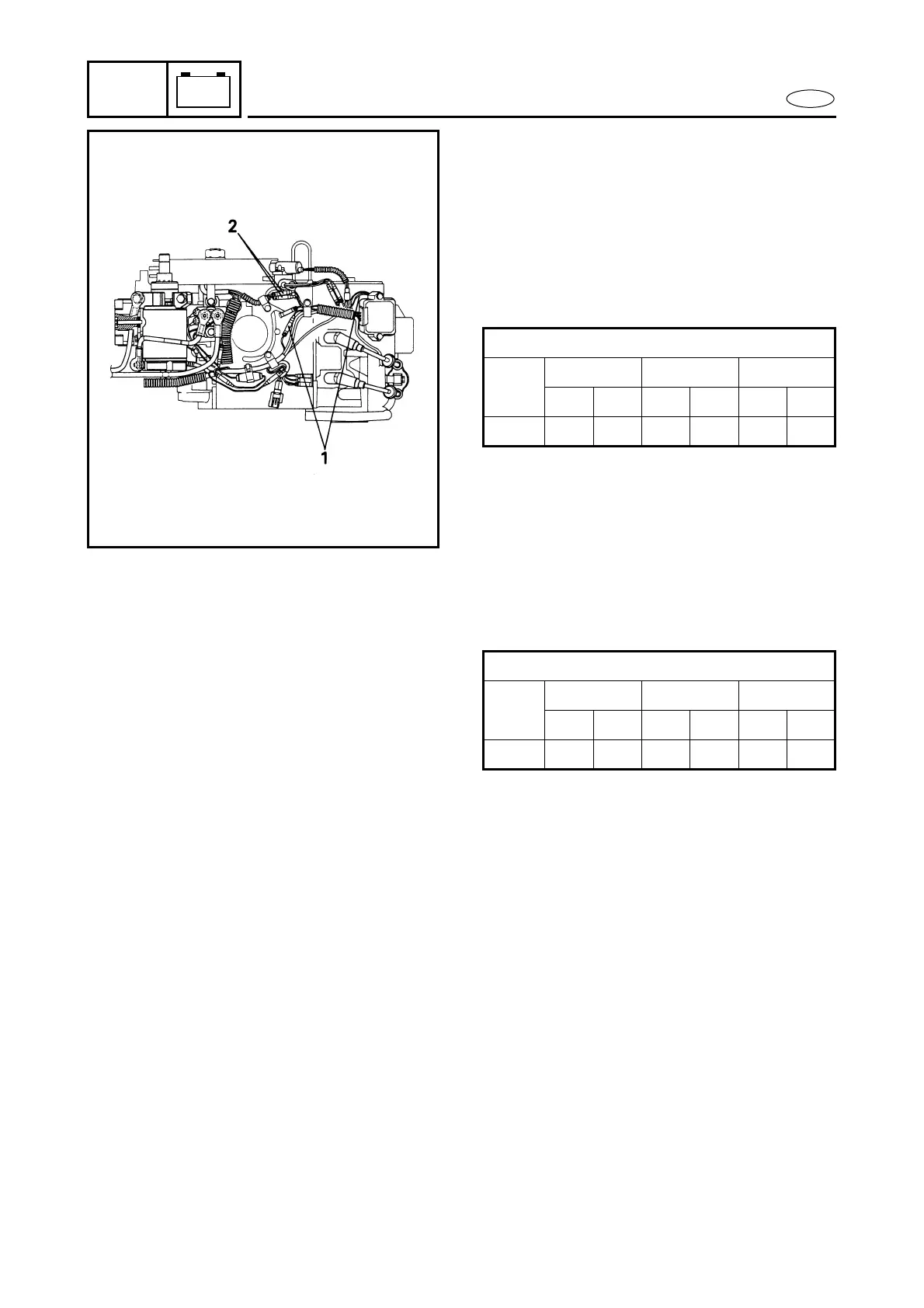

CHARGING SYSTEM PEAK VOLTAGE
1. Measure:
● Rectifier/regulator output peak volt-
age
Excessively over specification →
Replace.
Excessively below specification →
Check the lighting coil.
† : Circuit
* : Loaded
Rectifier/regulator output (R – B)
r/min
Cranking 1500 3500
†*†*†*
V 9 12 35 12 15 12
2. Measure:
● Lighting coil output peak voltage
Below specification → Replace.
† : Circuit
* : Loaded
Lighting coil output peak voltage (Y – Y)
r/min
Cranking 1500 3500
†*†*†*
V 101025256065
FUSE
Refer to “STARTING SYSTEM”.
BATTERY
Refer to “GENERAL” in chapter 3.
