7-11
E
BRKT
POWER TRIM AND TILT (PTT) UNIT
POWER TRIM AND TILT (PTT) UNIT

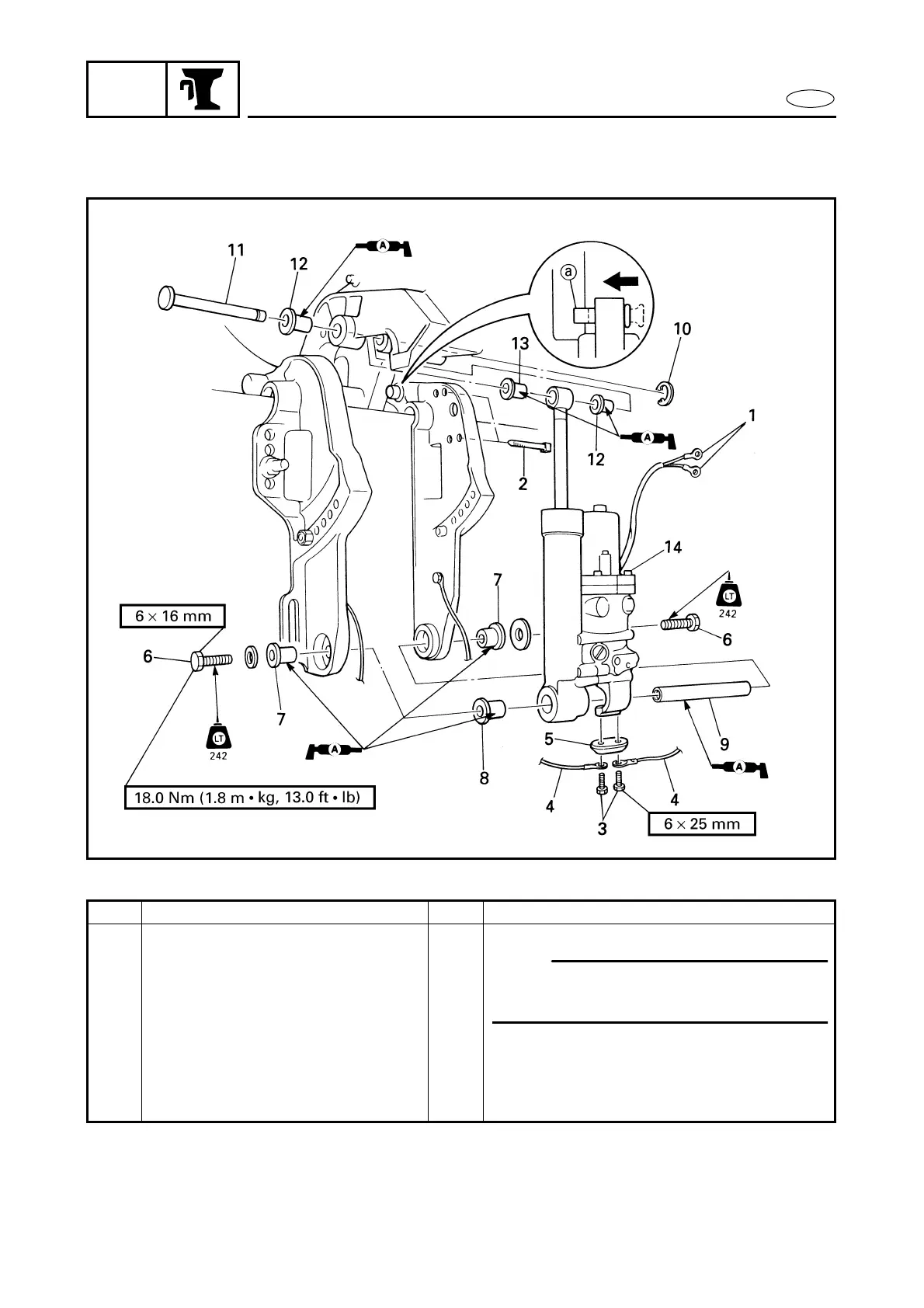

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
PTT UNIT REMOVAL
Follow the left “Step” for removal.
Tilt up the outboard
1
PTT motor lead
2
2
Plastic band
2
3
Bolt
2
4
Ground lead
2
NOTE:
Turn the tilt lock knob
a
towards the
clamp bracket and support the outboard.
305
