Yamaha F25A Service Manual

2-9
SPEC
E

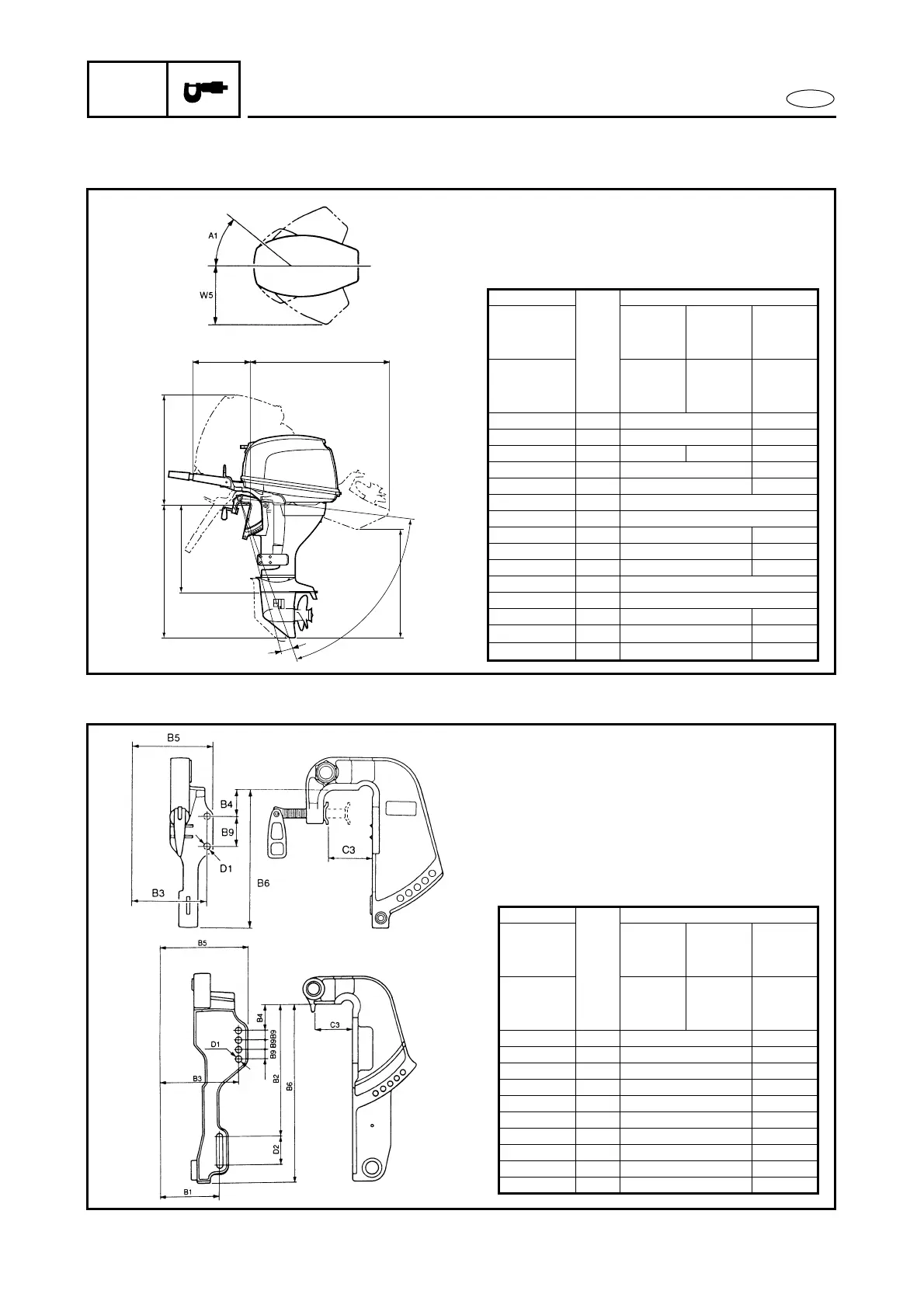

MAINTENANCE SPECIFICATIONS
DIMENSIONS
Outboard dimension
Symbol
Unit
Model(s)
Worldwide
F20AMH
F25AMH
F20AEH
F25AEH
F20AE
F25AE
F20AET
F25AET
F25AEHT
USA/CAN
—
F25MH
—
F25EH
—
F25ER
—
F25TR
F25TH
L6 (S) mm (in) 763 (30.0) —
(L) mm (in) 877 (34.5) 872 (34.3)
L7 mm (in) 363 (14.3) 343 (13.5) 329 (12.9)
H1 (S) mm (in) 707 (27.8) —
(L) mm (in) 834 (32.8) 834 (32.8)
H4 (S) mm (in) 423 (16.6)
(L) mm (in) 550 (21.6)
H6 (S) mm (in) 615 (24.2) —
(L) mm (in) 686 (27.0) 648 (25.5)
H9 mm (in) 698 (27.5) 698 (27.5)
W5 mm (in) 400 (15.8)
A1 Degree 45
A2 Degree 64 61
(Shallow water)
Degree 29 ~ 43
—
A3
Degree —
4
L7
H9H1
H4
H6
A2
A3
L6
Bracket dimension
Symbol
Unit
Model(s)
Worldwide
F20AMH
F25AMH
F20AEH
F25AEH
F20AE
F25AE
F20AET
F25AET
F25AEHT
USA/CAN
—
F25MH
—
F25EH
—
F25ER
—
F25TR
F25TH
B1 mm (in) — 251.8 (9.9)
B2 mm (in) — 254 (10.0)
B3 mm (in) 280 (11.0) 327 (12.9)
B4 mm (in) 32 (1.3) 50.8 (2.0)
B5 mm (in) 150 (5.9) 180 (7.1)
B6 mm (in) 218 (8.6) 338 (13.3)
B9 mm (in) 50 (2.0) 18.5 (0.7)
D1 mm (in) 10.5 (0.4) 13 (0.5)
D2 mm (in) — 55.5 (2.2)
C3 mm (in) 37 ~ 68.5 (1.5 ~ 2.8) 69 (2.7)
