FORWARD GEAR AND DRIVE SHAFT
SERVICE POINTS

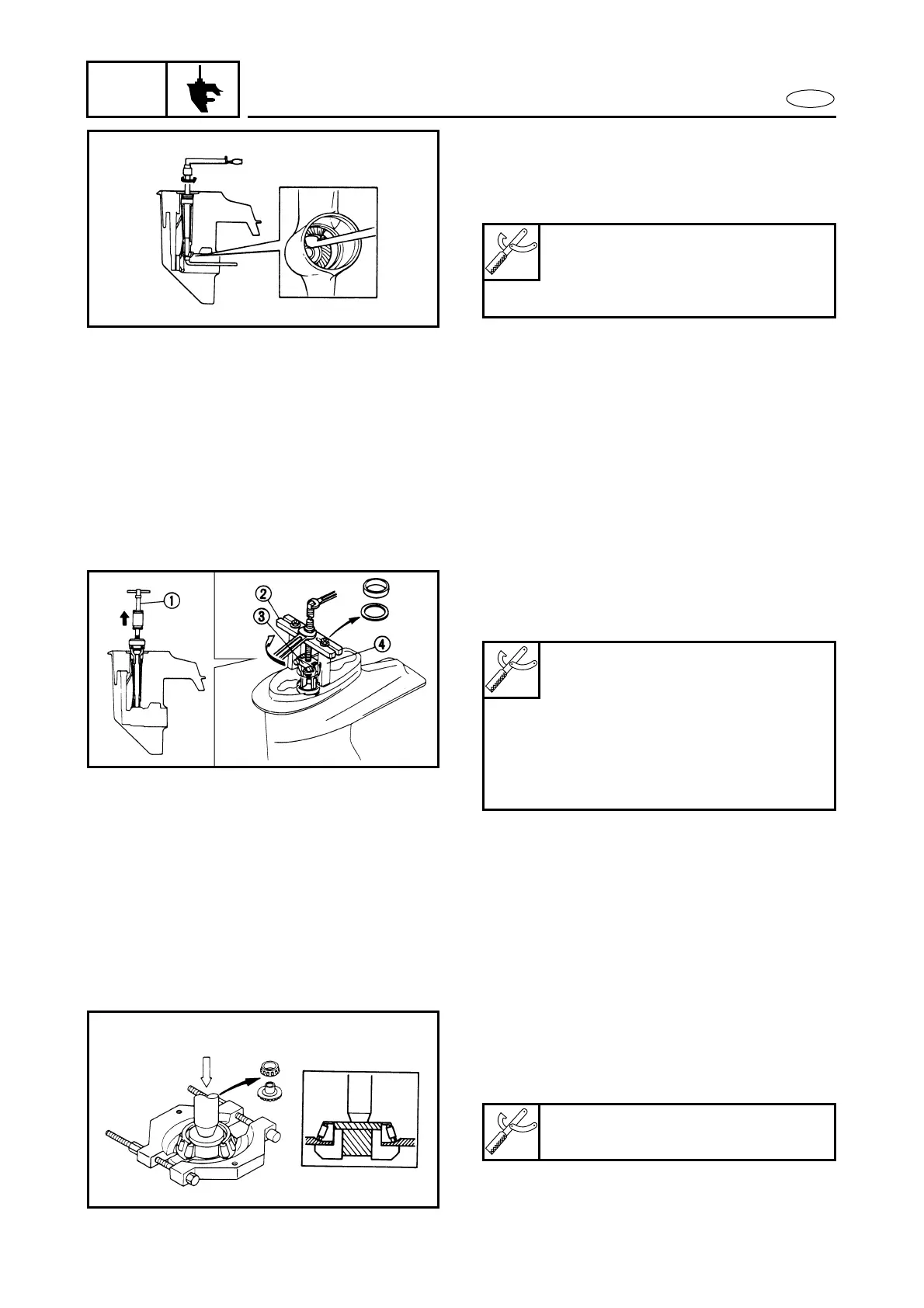

Forward and reverse gear disassembly
1. Remove:
● Pinion gear nut
Drive shaft holder:
YB-06079-A/90890-06517
Pinion nut holder:
YB-06078/90890-06505
2. Remove:
● Pinion gear
● Forward gear
(along with the tapered roller bear-
ing)
3. Remove:
● Drive shaft bearing outer race
● Pinion gear shim(s)
Å For USA and CANADA
ı Except for USA and CANADA
Slide hammer set 1:
YB-06096
Stopper guide plate 2:
90890-06501
Bearing puller 3:
90890-06535
Stopper guide stand 4:
90890-06538
Å
ı
Forward gear disassembly
1. Disassemble:
● Forward gear
(from the tapered roller bearing)
Bearing separator:
YB-06219/90890-06534
