STEERING FRICTION (MH, EH-option)

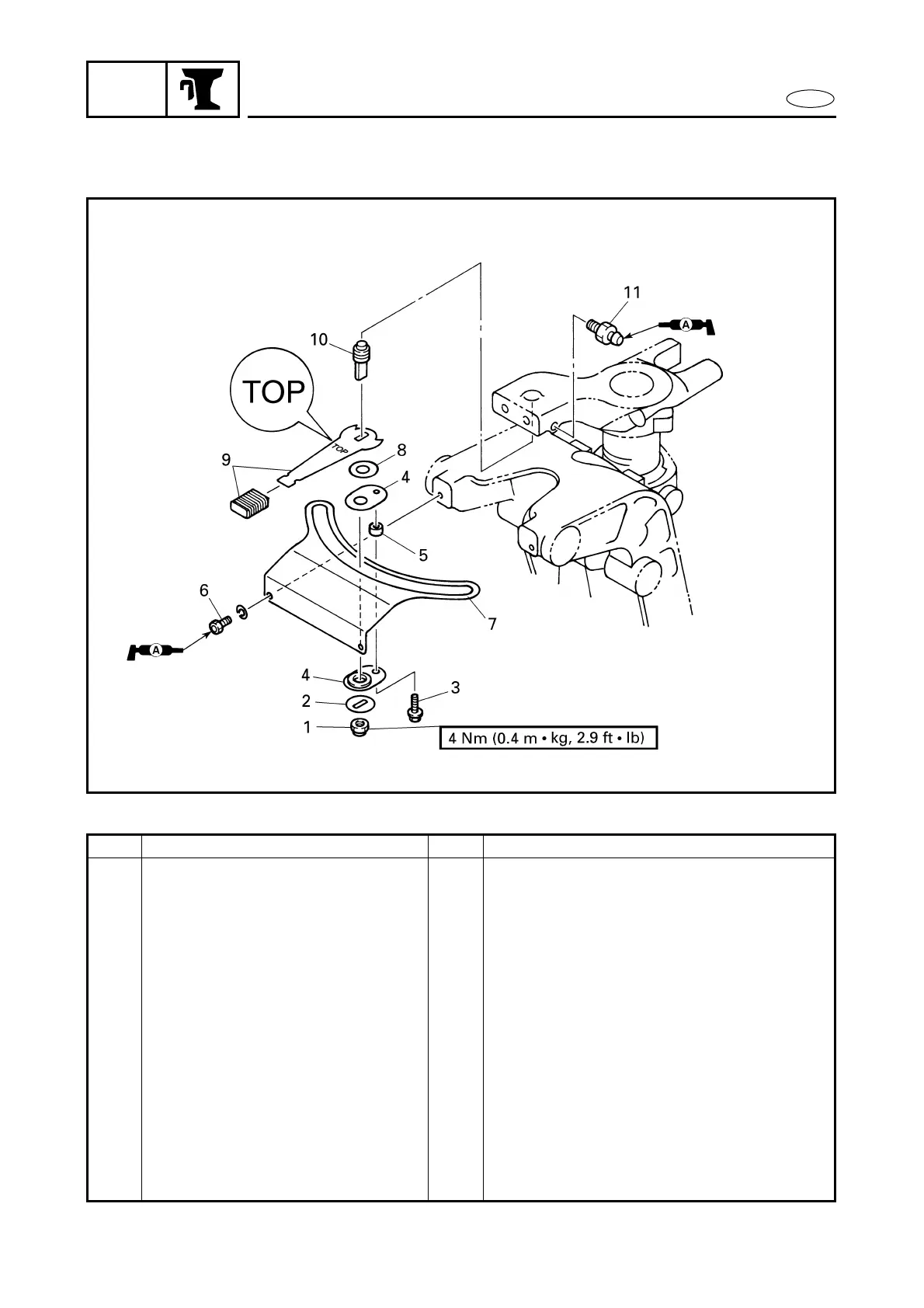

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STEERING FRICTION
DISASSEMBLY
Follow the left “Step” for removal.
1 Locknut 1
2 Washer 1
3 Bolt 1
4 Friction piece 2
5 Collar 1
6 Bolt 2
7 Friction plate 1
8 Plate washer 1
9 Friction lever 1
10 Steering lock shaft 1
11 Grease nipple 1
Reverse the disassembly steps for instal-
lation.
