7-9
E
BRKT
OIL PAN
OIL PAN

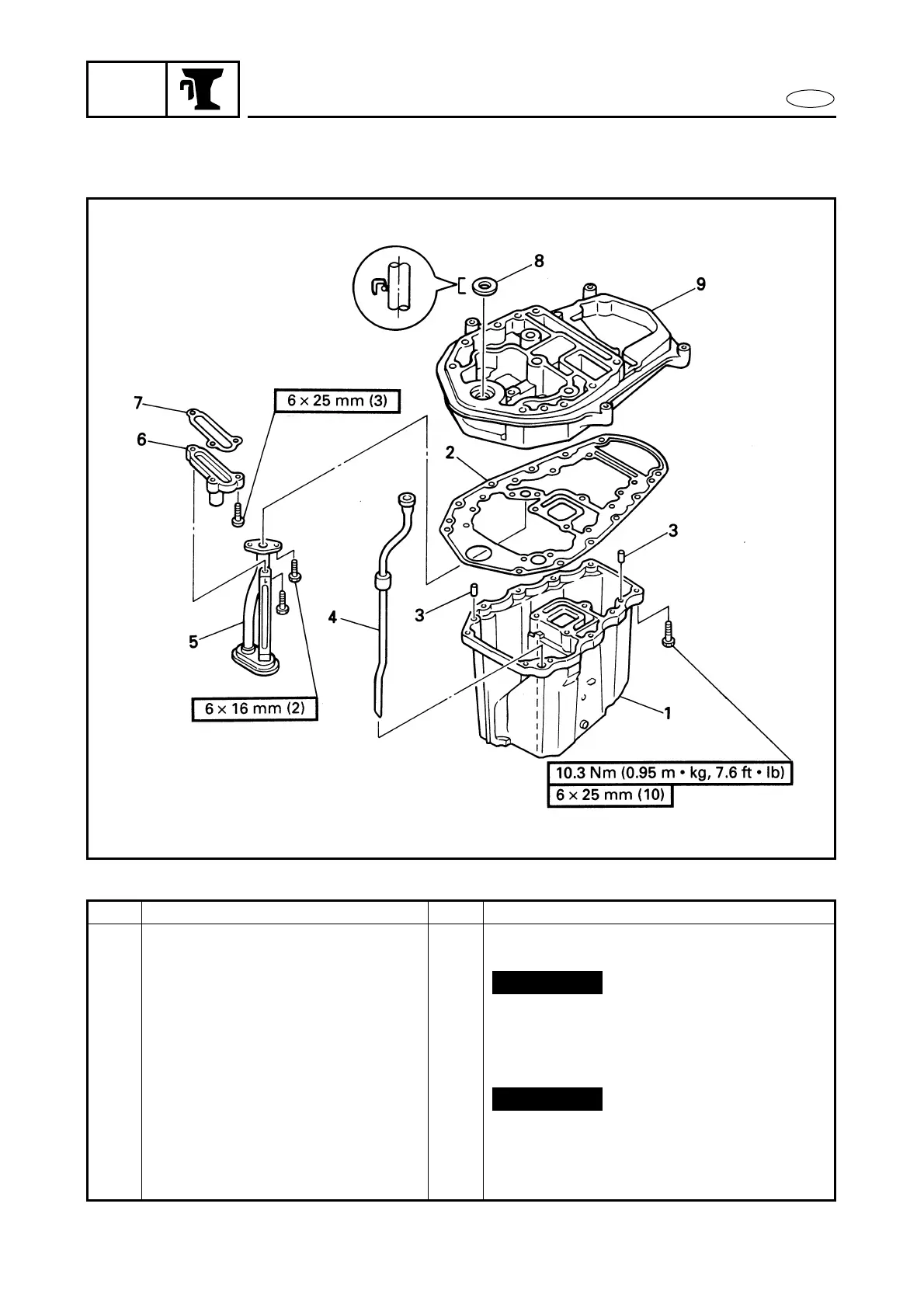

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
OIL PAN DISASSEMBLY
Follow the left “Step” for removal.
1
Oil pan
1
2
Upper case gasket
1
3
Dowel pin
2
4
Water pipe
1
5
Oil strainer
1
6
Relief valve
1
7
Relief valve gasket
1
8
Oil seal
1
9
Exhaust guide
1
Reverse the disassembly steps for instal-
lation.
Not reusable
Not reusable
299
301
