7-31
E
BRKT
PTT MOTOR
PTT MOTOR

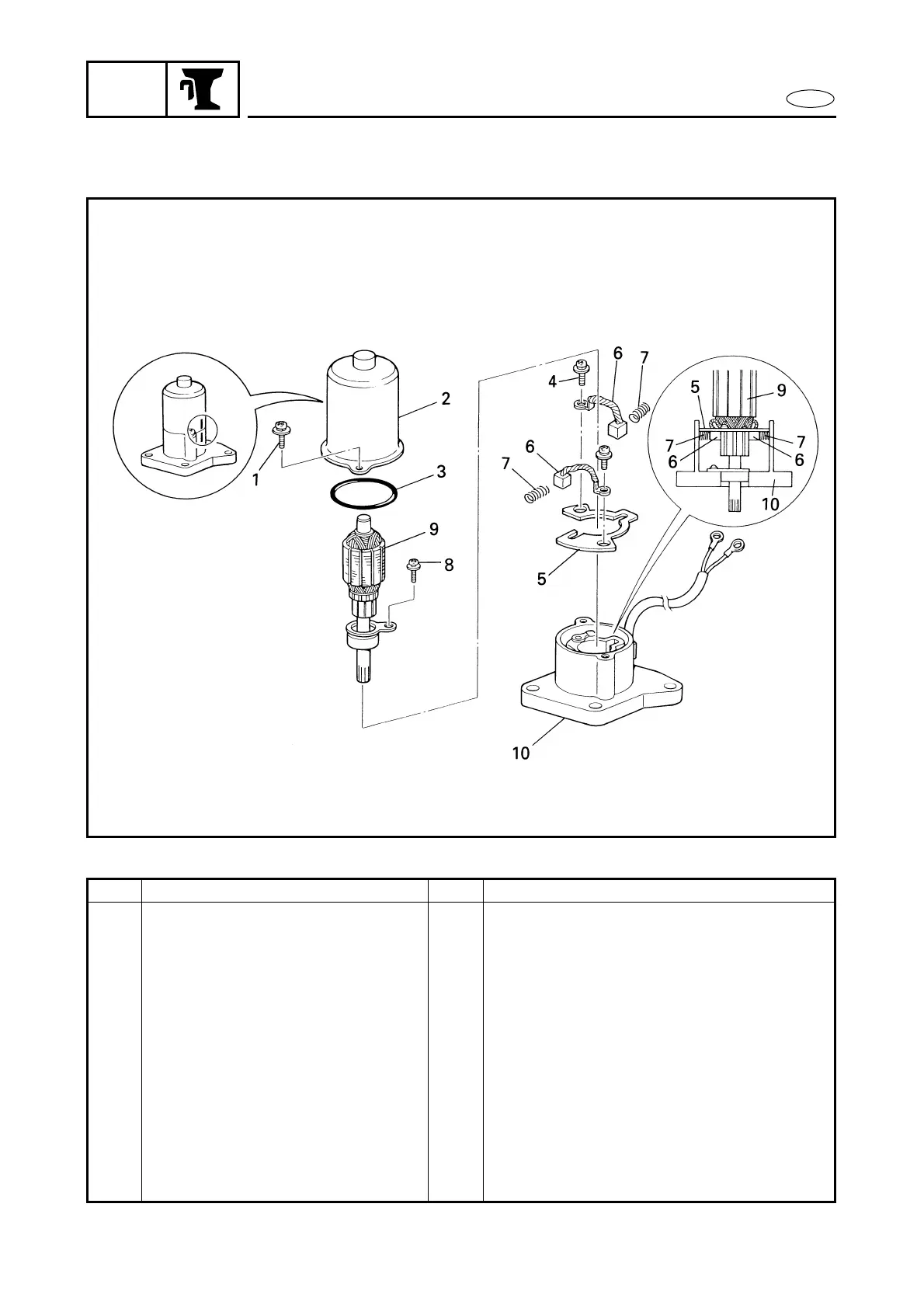

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
PTT MOTOR DISASSEMBLY
Follow the left “Step” for removal.
1
Screw
2
2
Stator
1
3
O-ring
1
49.5
×
2.0 mm
4
Screw
2
5
Brush holder
1
6
Brush
2
7
Brush spring
2
8
Screw
1
9
Armature
1
10
PTT motor base
1
Reverse the disassembly steps for instal-
lation.
