7-30
E
BRKT
GEAR PUMP
GEAR PUMP

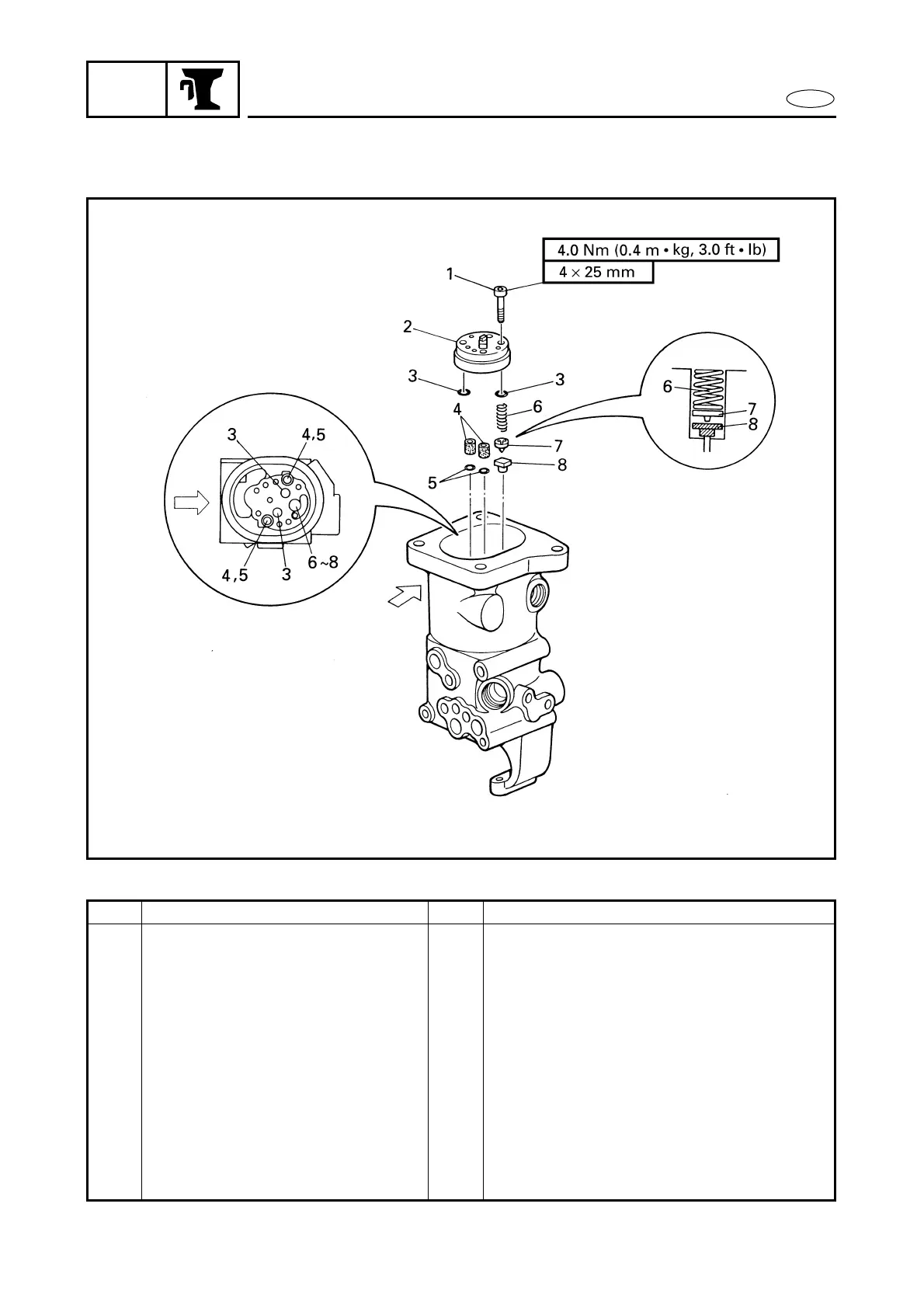

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
GEAR PUMP REMOVAL
Follow the left “Step” for removal.
PTT motor
Refer to “TILT CYLINDER, PUMP HOUS-
ING, AND MOTOR”.
1
Bolt
4
2
Gear pump
1
3
O-ring
2
4.5
×
1.5 mm
4
Filter
2
5
O-ring
2
3.5
×
1.5 mm
6
Spring
1
7
Valve support pin
1
8
Valve seat
1
Reverse the removal steps for installation.
