142 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Feeder/Flipper Assembly
Feeder/Flipper Assembly

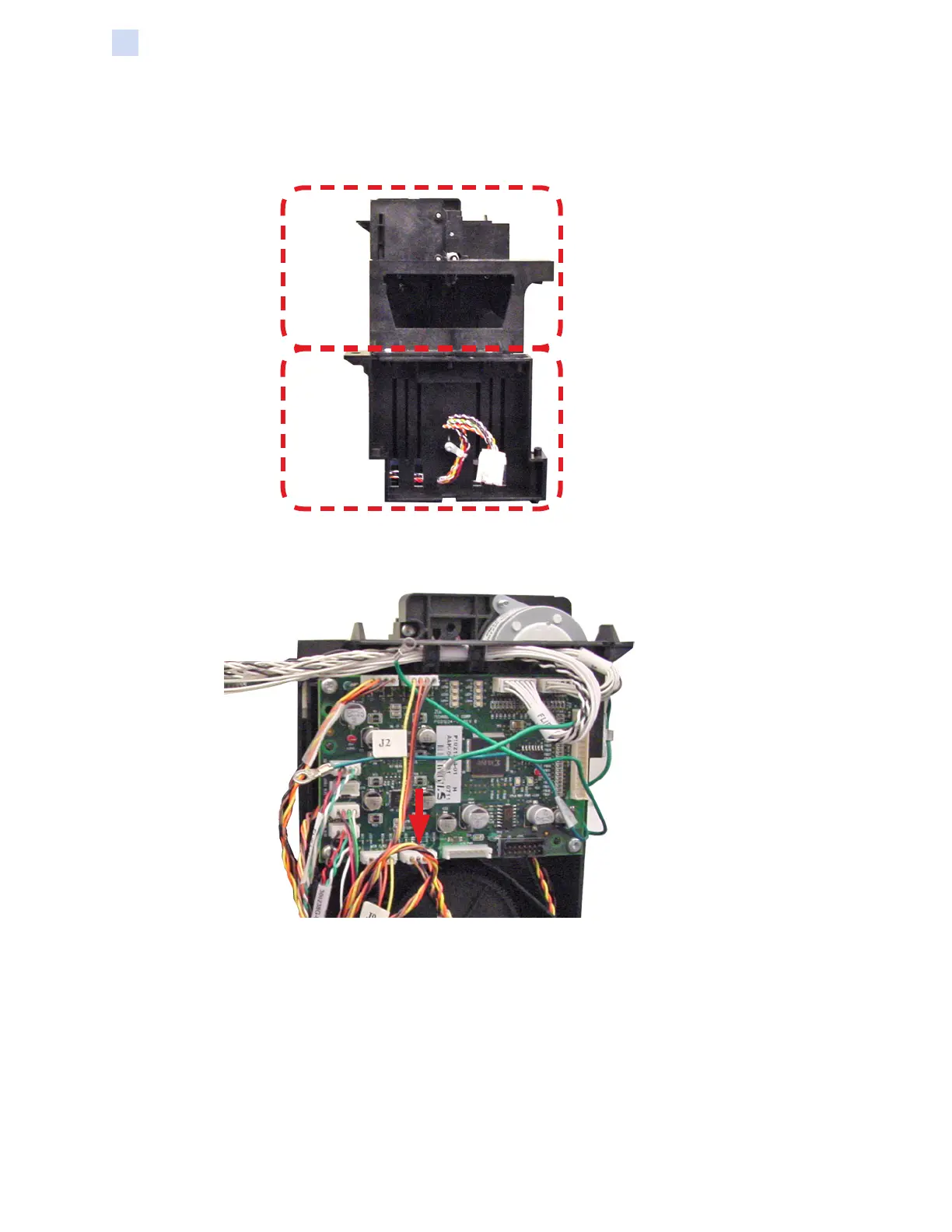

The Feeder/Flipper Assembly is comprised of two Modules: Feeder and Flipper.
FEEDERFLIPPER
Step 1. Disconnect connector J8from the Flipper Module PCBA.
