Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 193
Replacement Procedures for Factory Installed Options
Procedures: Barcode Scanner Assembly
Procedures
Barcode Scanner Assembly
Barcode Scanner
Step 1. Remove the feeder cartridge (see “Feeder Cartridge” on page 34).
Step 2. Remove the hroud (see “Shroud for Options” on page 44).
Step 3. Remove the back cover (see “Back Cover” on page 45).
Step 4. Remove the options cover (see “Options Cover” on page 47).
Step 5. Remove the reject bin (see “Reject Bin” on page 32).
Step 6. Remove the bottom cover (see “Bottom Cover” on page 66).

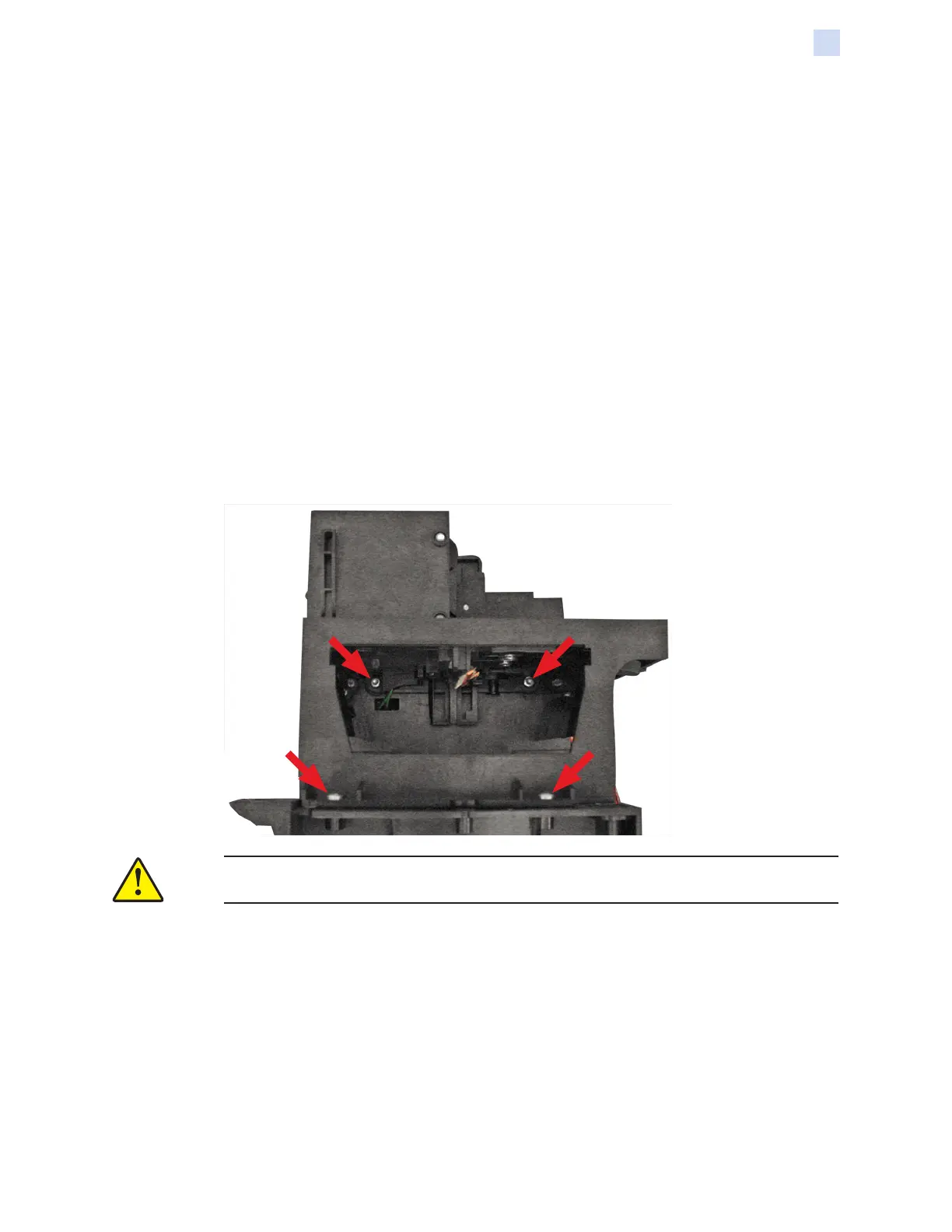

Step 7. From the front of the printer: With a TORX T10 driver, remove the four screws
holding the feeder in place (arrows below).
Caution • Cables are attached to the feeder.
Step 8. Carefully tilt the feeder upward, out of the way.
Step 9. Remove the pressure roller assembly (see “Flipper Module” on page 31).
