280 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Cutters (Upper & Lower)
Cutters (Upper & Lower)
Upper Cutter
For this procedure you will need to free (i.e., remove the four mounting screws), but
not disconnect, the Laminator Controller PCBA.

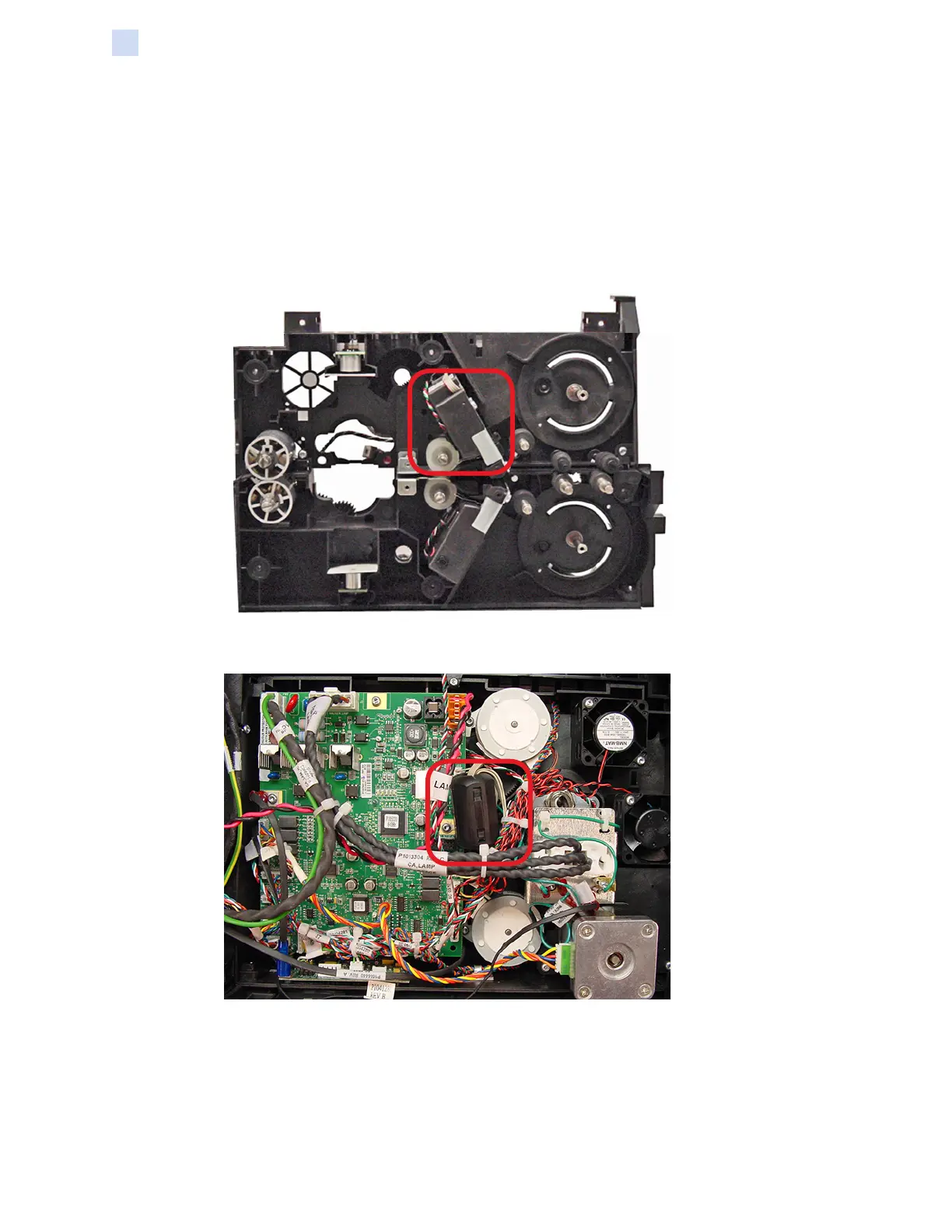

Step 1. Locate the Upper Cutter (front view, Front Frame removed).
Step 2. Remove the Ferrite around the Cutter wires (circled below).
Step 3. Disconnect the cutter plug at J22 and the sensor plug at J23 (arrows above).
