P1036102-007 ZXP Series 7 Card Printer Service Manual 223
Replacement Procedures for the Laminator
Procedures: Lock Replacement for Left Cover
Lock Replacement for Left Cover

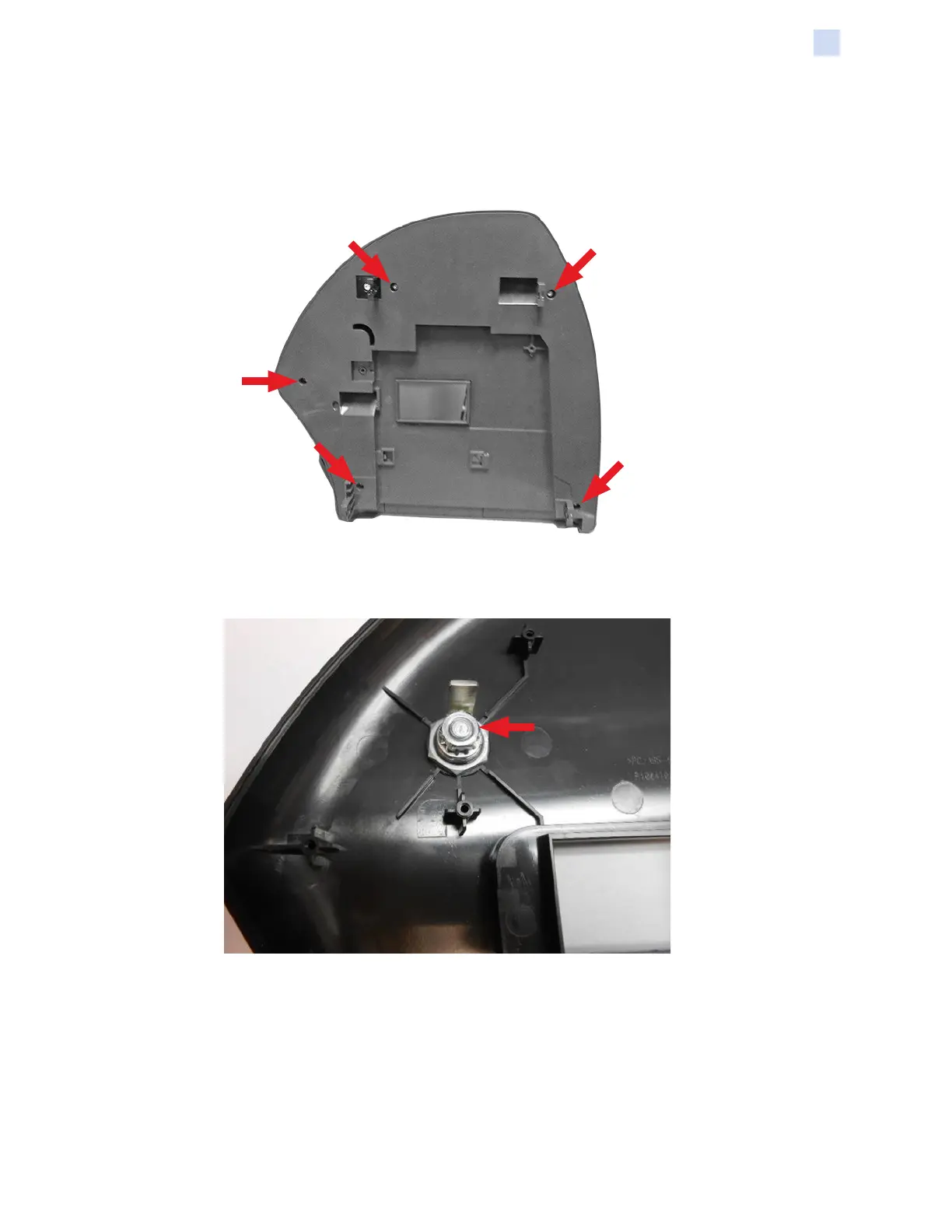

Step 1. With a TORX T10 driver, remove the six screws holding the Inner Cover to
the Left Cover; arrows below.
Step 2. Separate the Inner Cover from the Left Cover, and set the Inner Cover aside.
Step 3. With an adjustable wrench, remove the small nut from the Lock Assembly.
