292 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: High-Capacity Output Hopper
High-Capacity Output Hopper
Removal
Step 1. Remove the reject bin—see “Reject Bin” on page 32.
Step 2. Remove the ribbon drawer—see ”Ribbon Drawer” on page 40
Step 3. Remove the back cover—see ”Back Cover” on page 45.
Step 4. If the printer is equipped with a laminator, remove the laminator rear cover—
see “Back Cover” on page 221.
Step 5. Remove the bottom cover—see ”Bottom Cover” on page 66.

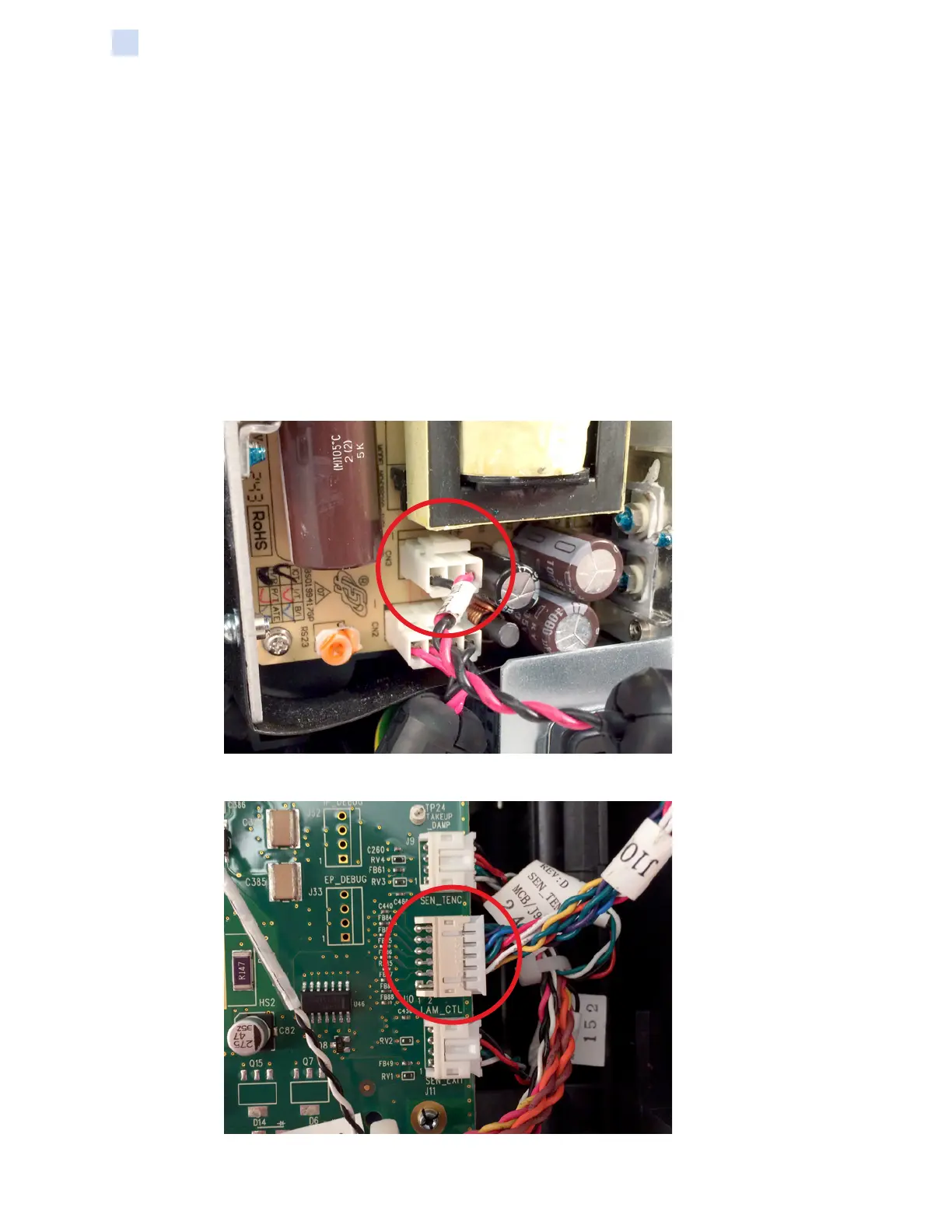

Step 6. Disconnect the power cable from CN3 on the power supply module.
Step 7. Disconnect the hopper control cable from J10 on the main PCB.
To Next Page
