P1036102-007 ZXP Series 7 Card Printer Service Manual 69
Replacement Procedures for the Printer
Procedures: Printer
Printer

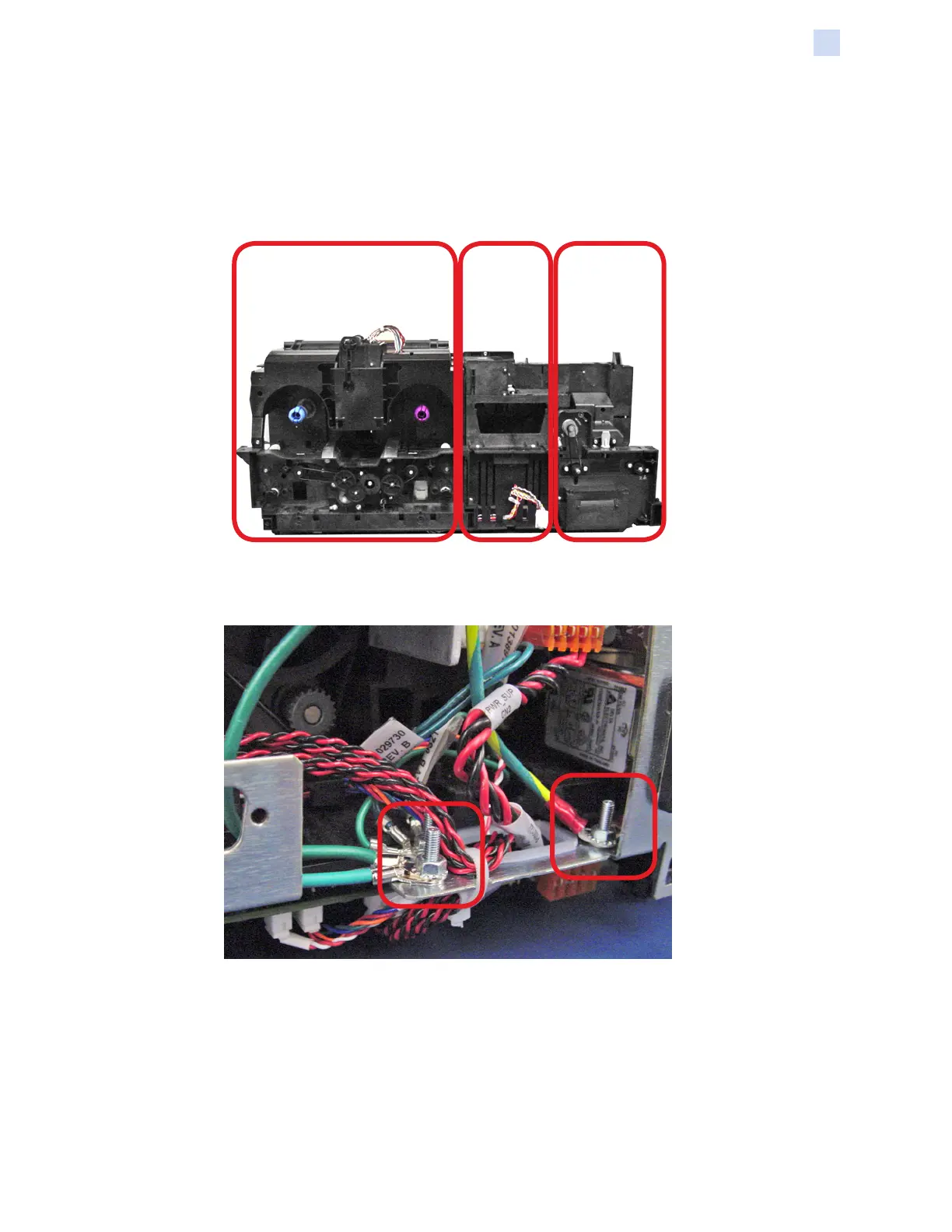

The Printer is comprised of three assemblies: the Print Engine, the Feeder/Flipper
Module, and the Options Module. This section details the steps required to separate
the Print Engine from the Feeder/Flipper/Options Assembly.
PRINT ENGINE OPTIONS
FLIPPER /
FEEDER
Step 1. With a 5.5-mm nut driver, remove the two nuts (circled below) holding the
print engine ground wires in place.
Step 2. Remove the ground wires connecting the Print Engine with the Options
Module.
