Zebra ZXP 7 series Service Manual

246 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: 24V Heater Fans
24V Heater Fans
Exhaust Fan (Upper)

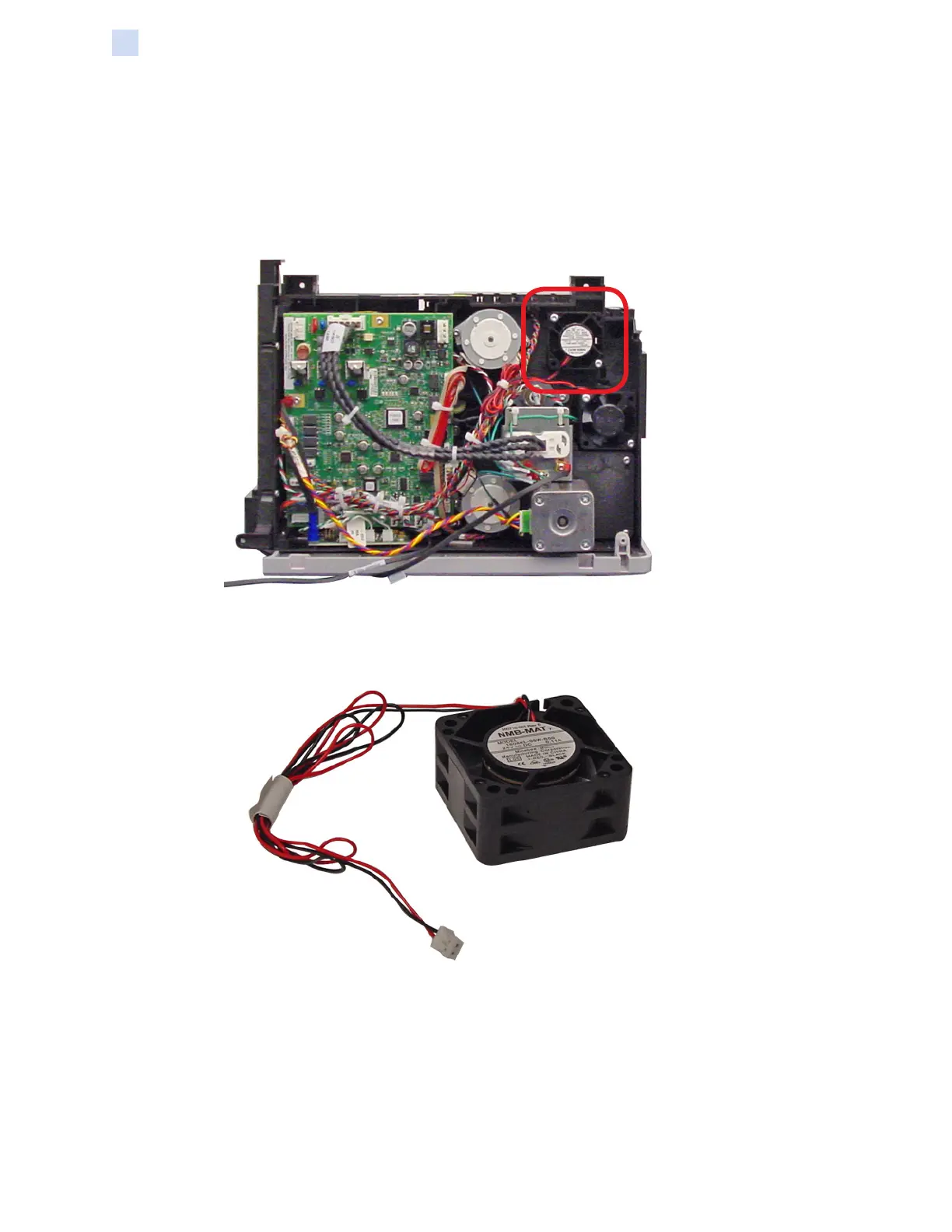

Step 1. With a TORX T10 driver, remove the two screws holding the Exhaust Fan
(circled below) in place. Note the orientation of the fan.
Step 2. Cut the associated cable ties, disconnect the fan plug from the Laminator
Controller PCBA (J12), and remove the Exhaust Fan.
