P1036102-007 ZXP Series 7 Card Printer Service Manual 147
Replacement Procedures for the Printer
Procedures: Power Switch
Power Switch
See next page for alternate Power Switch removal method using the AC Power Filter
Release Tool (P1037750-404).

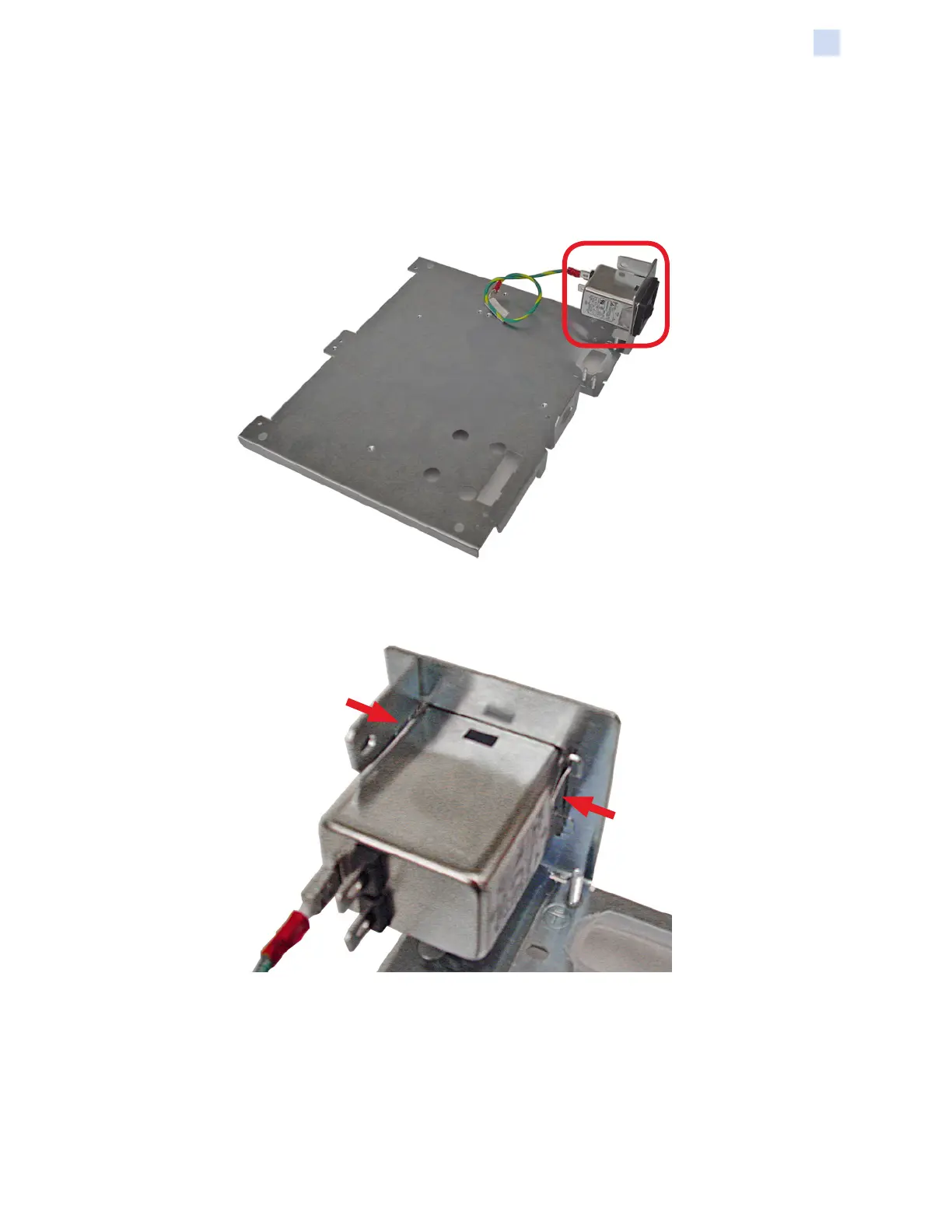

Step 1. Locate the Power Switch (circled below).
Step 2. With a Flat-blade screwdriver, release the locking tabs (dashed arrows
below) on both sides of the Power Switch.
Step 3. Slide the Power Switch forward, out of the mounting bracket; and set it
aside.
To Next Page
