256 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Staging Motor
Staging Motor

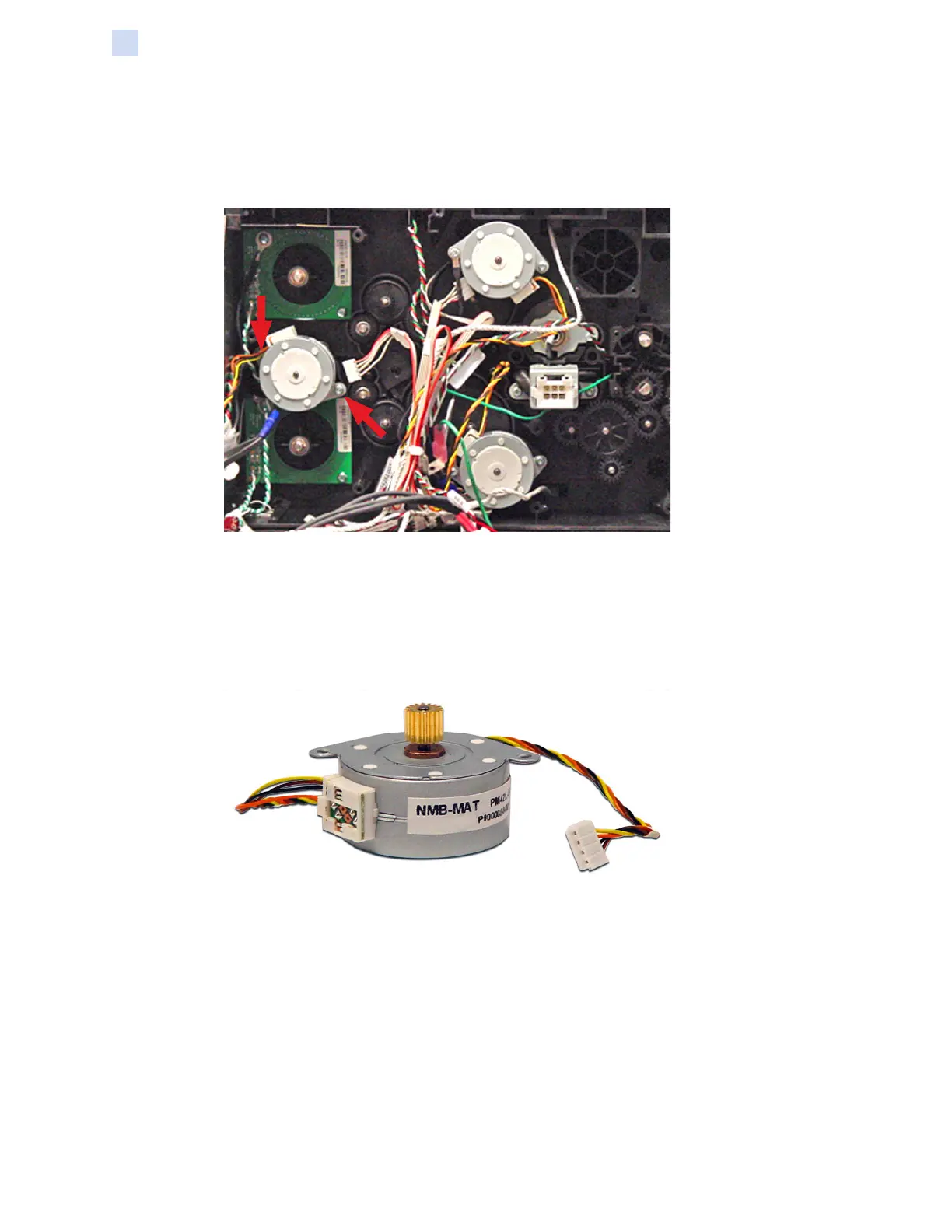

Step 1. With a TORX T10 driver, remove the two screws holding the Staging Motor in
place. Note that the left-hand screw connects a ground wire.
Step 2. If not already disconnected, disconnect the motor plug from J18.
Step 3. Cut the associated cable ties, and remove the Staging Motor.
