276 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Flexible Ribbed Rollers (Left & Right)
Flexible Ribbed Rollers (Left & Right)
For this procedure you will need to free (i.e., remove the four mounting screws), but
not disconnect, the Laminator Controller PCBA.

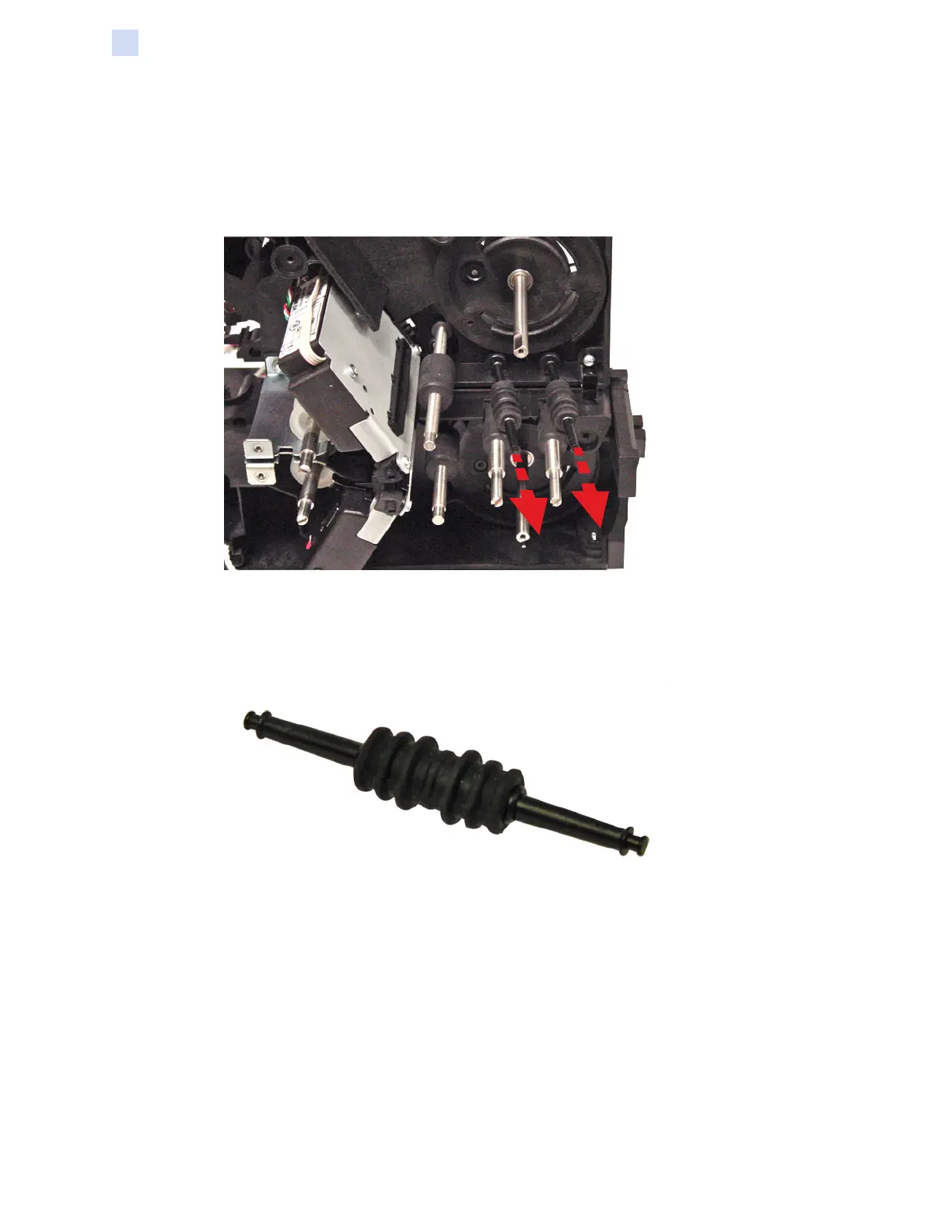

Step 1. Carefully remove the Flexible Rib Roller(s)—see arrows below.
Step 2. Set the Flexible Rib Roller(s) aside.
