222 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Side Cover
Side Cover

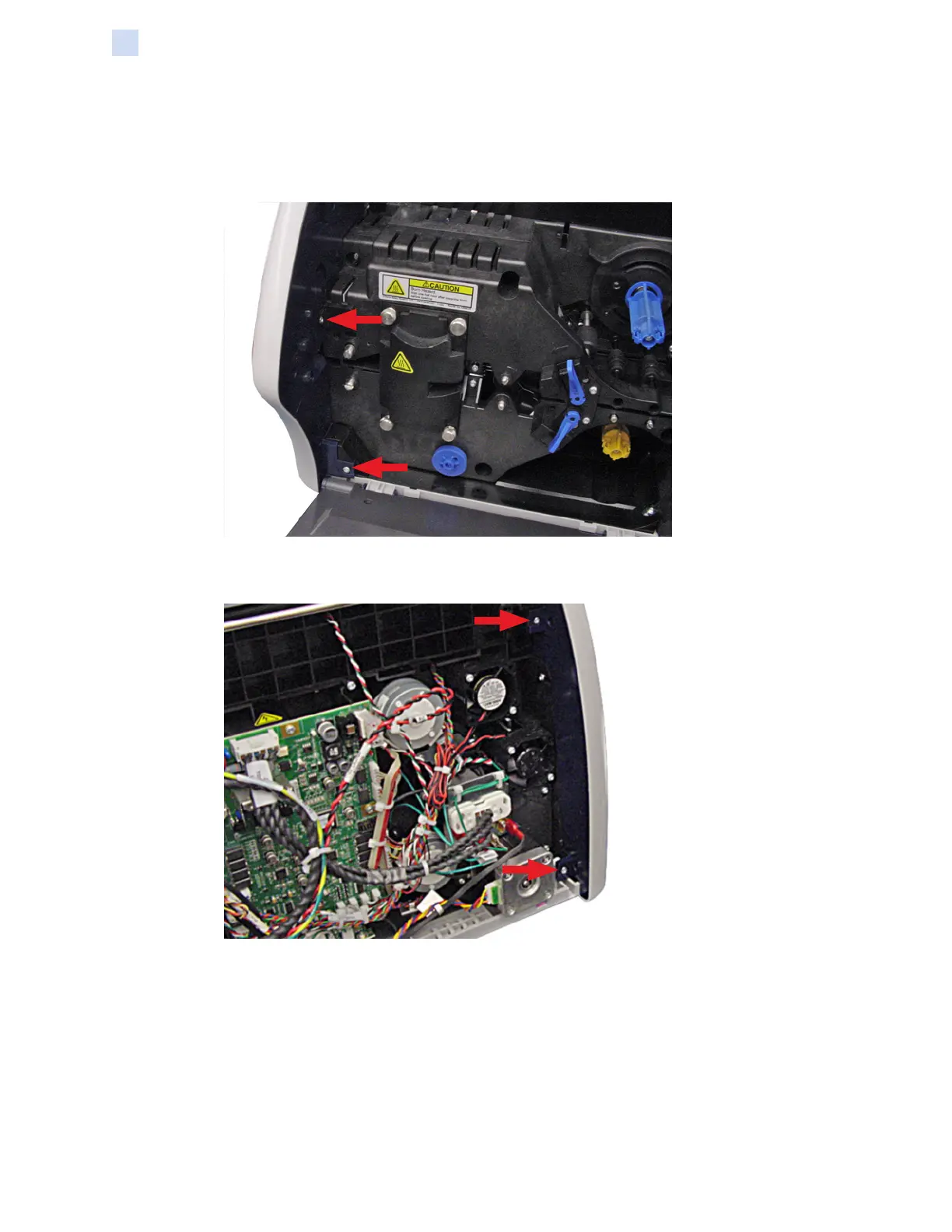

Step 1. From the front of the Laminator: With a TORX T10 driver, remove the two
screws holding the Side Cover in place.
Step 2. From the back of the Laminator: With a TORX T10 driver, remove the two
screws holding the Side Cover in place.
Step 3. Remove the Side Cover, and set it aside.
To Next Page
