Zebra ZXP 7 series Service Manual

46 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer

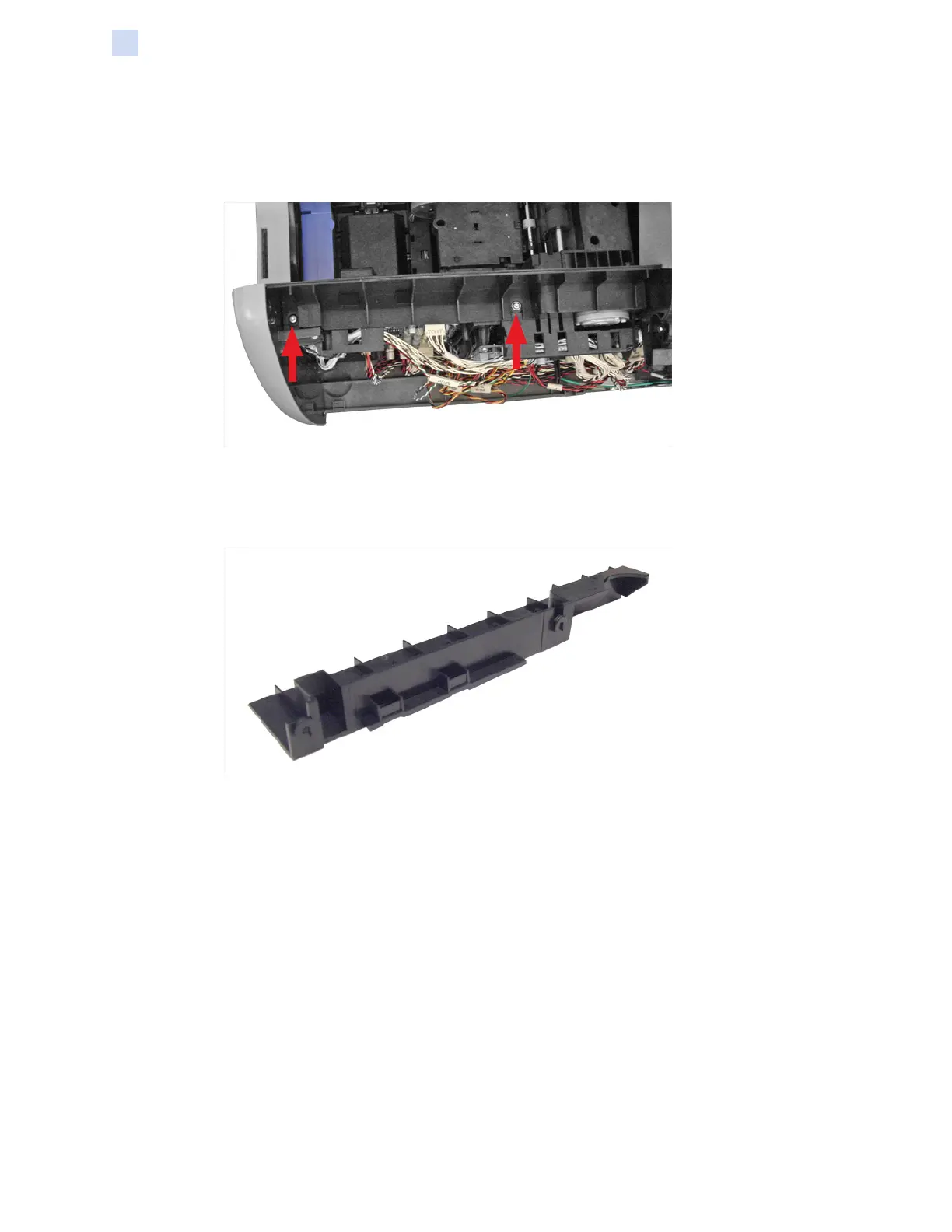

Procedures: Rear Feeder Cover
Rear Feeder Cover
Step 1. With a TORX T10 driver, remove the left screw holding the Rear Feeder
Cover in place.
Step 2. With a TORX T10 driver, remove the right screw and washer holding the Rear
Feeder Cover in place.
Step 3. Remove the Rear Feeder Cover, and set it aside.
