P1036102-007 ZXP Series 7 Card Printer Service Manual 311
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Platen Roller
Platen Roller
Removal

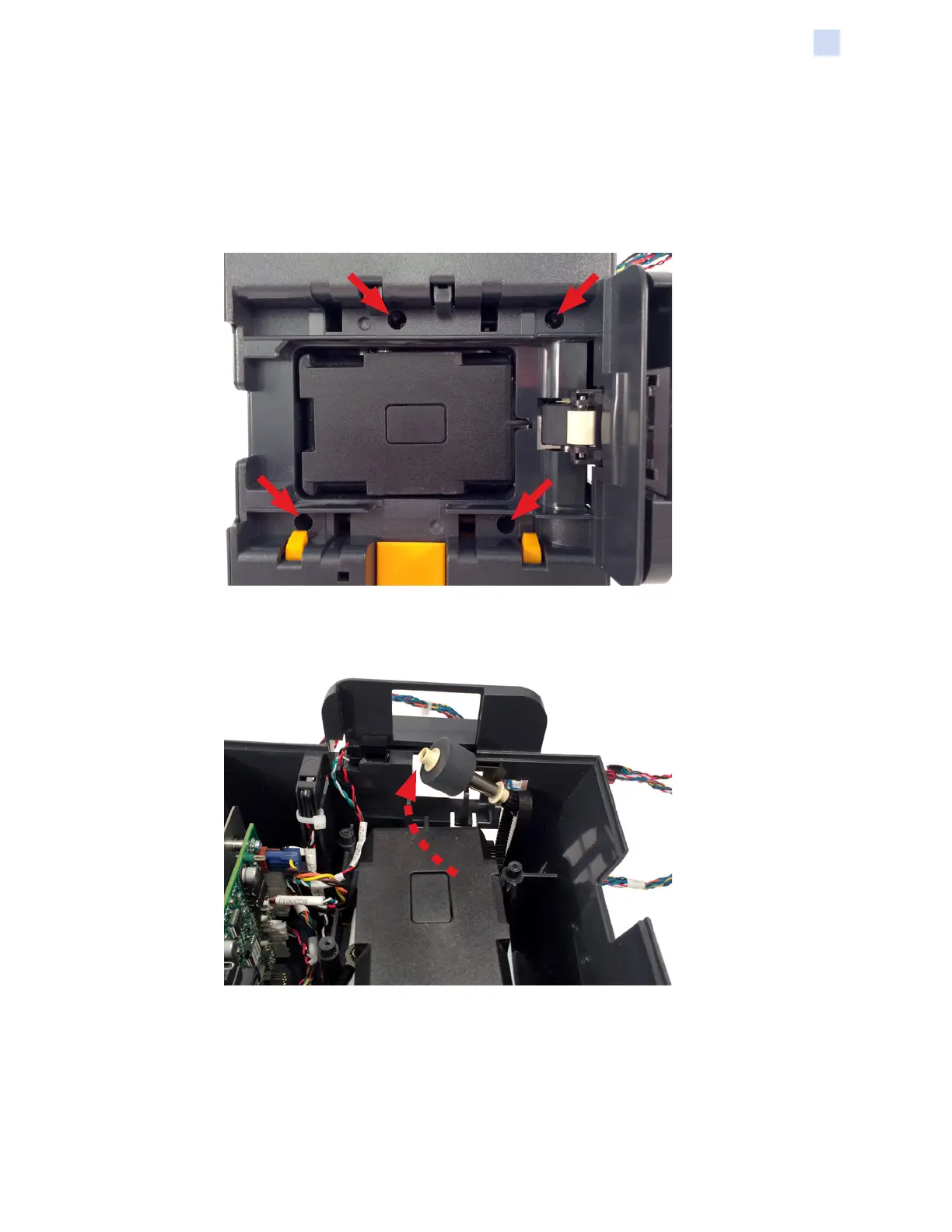

Step 1. Remove the four (4) screws securing the base cover and latch assembly to
the stacker assembly.
Step 2. From the roller side, carefully lift the roller assembly out from the latching
mechanism—the belt will become slack and drop o.
Step 3. Remove the belt from the drive motor gear.
To Next Page
