P1036102-007 ZXP Series 7 Card Printer Service Manual 277
Replacement Procedures for the Laminator
Procedures: Card Staging Nip Rollers (Left & Right)
Card Staging Nip Rollers (Left & Right)
For this procedure you will need to free (i.e., remove the four mounting screws), but
not disconnect, the Laminator Controller PCBA

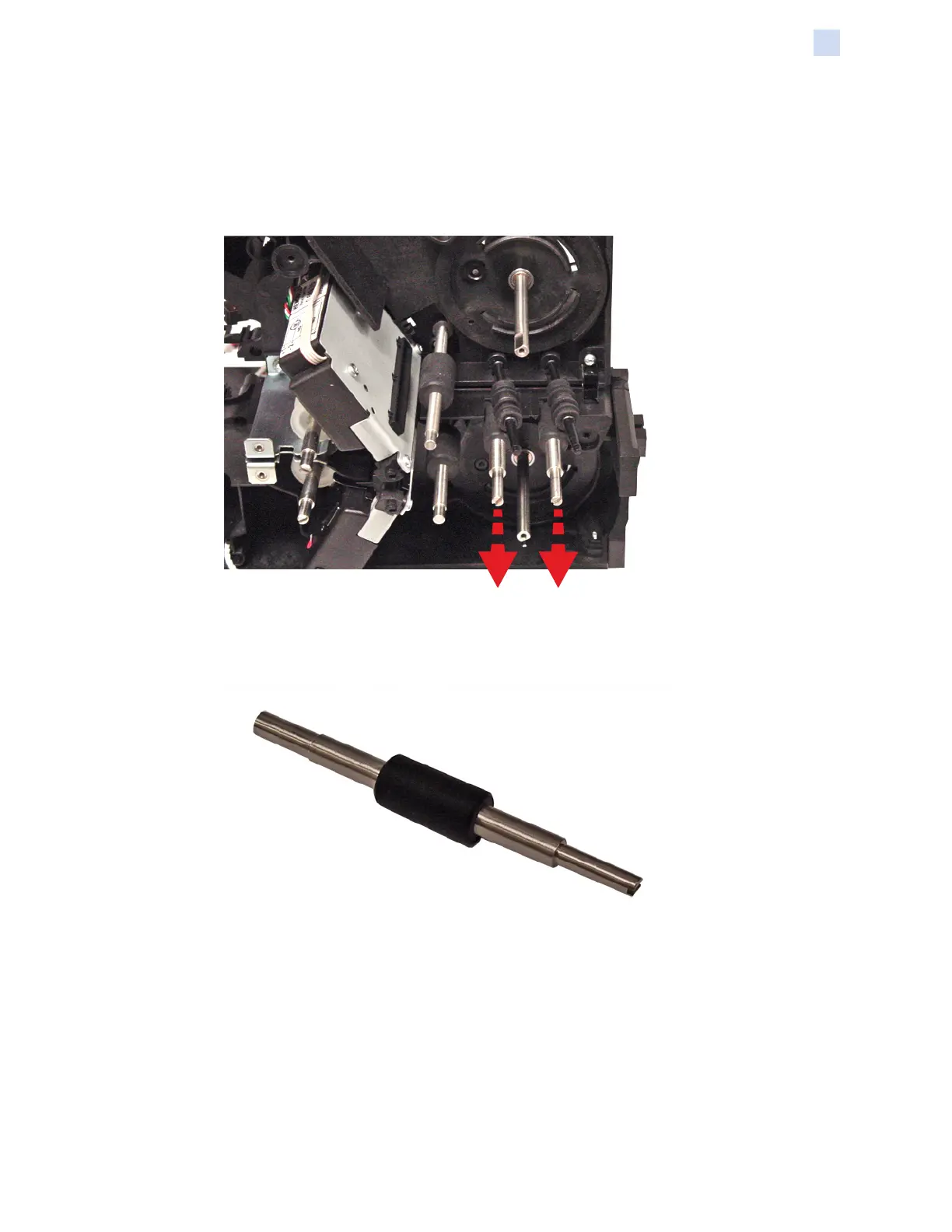

Step 1. Carefully remove the Card Staging Nip Roller(s)—see arrows below.
Step 2. Set the Card Staging Nip Roller(s) aside.
To Next Page
